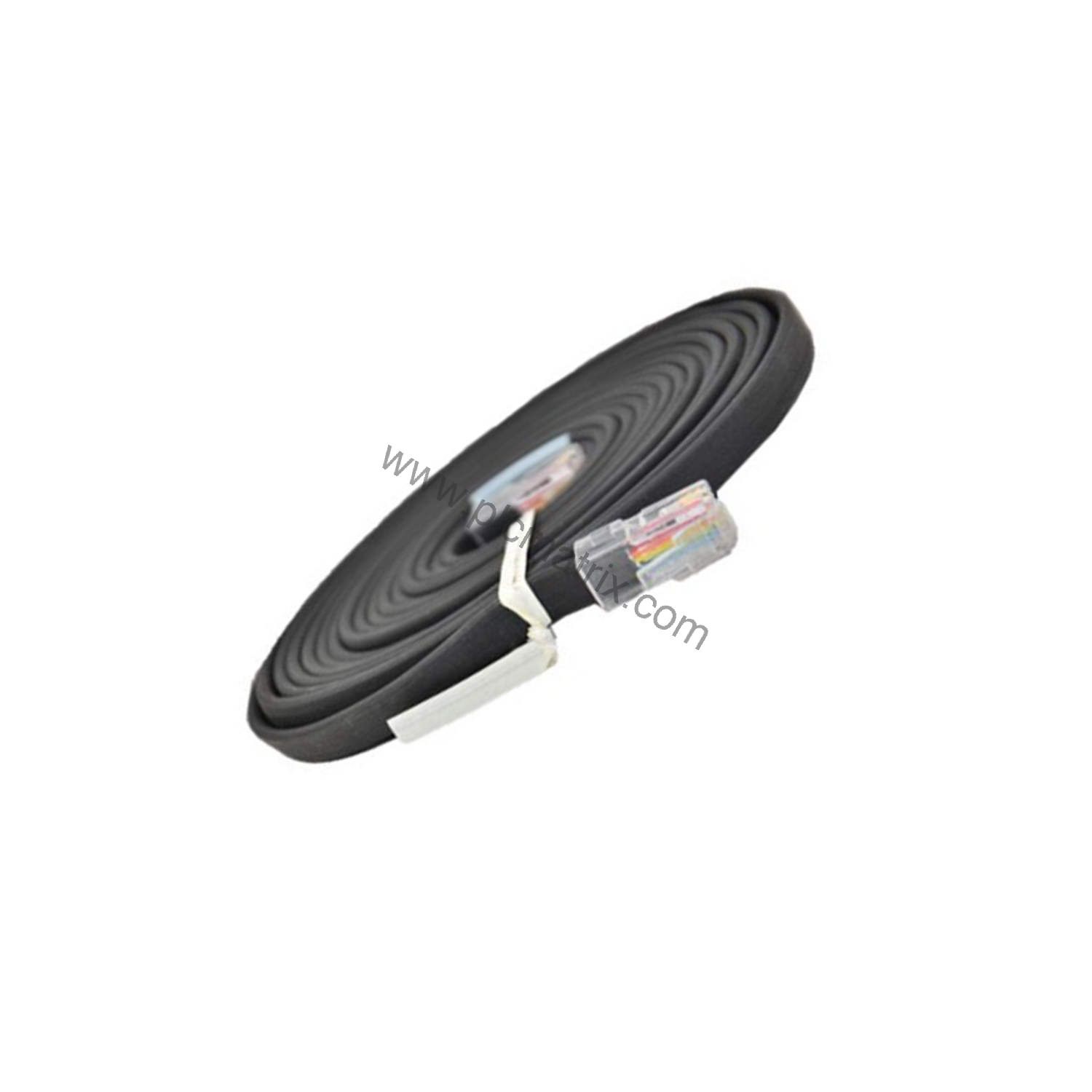

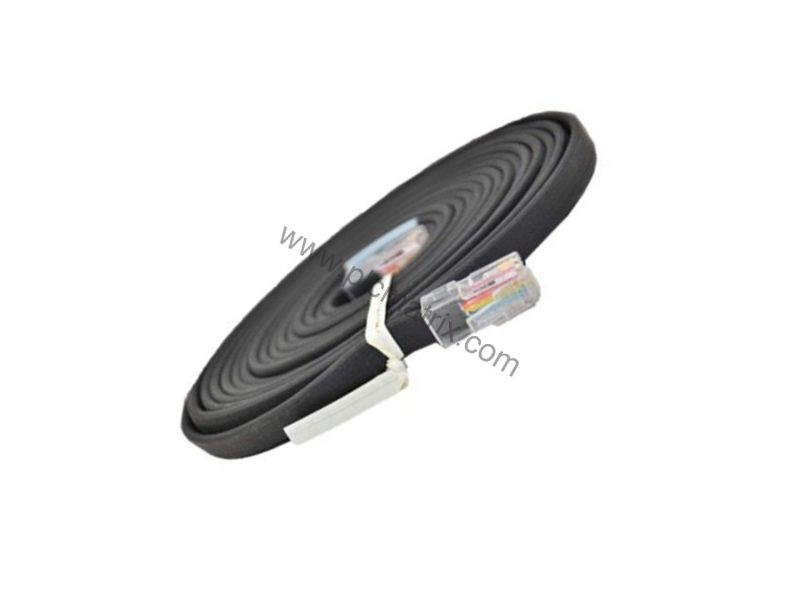

Schneider 110XCA17102 Modicon Quantum I/O Expansion Cable, 3 Meter

Product Overview

When your Modicon Quantum system requires a reliable connection for I/O expansion, the Schneider 110XCA17102 cable delivers the performance you need. This 3-meter cable serves as a spare part and accessory, linking I/O modules to ensure efficient data handling and seamless system integration. Designed for clean indoor environments, it supports your automation setup without introducing signal issues.

Technical Specifications

The 110XCA17102 from Schneider Electric is built for utility within the Modicon Quantum range. Key specifications from the manufacturer include a weight of 0.25 lbs (0.11 kg) and a length of 3 meters. Operating temperature ranges from 0 to 40 degrees Celsius, while storage temperature extends to 50 degrees Celsius. Humidity tolerance reaches 80% RH without condensation in both operation and storage. The cable is rated for altitudes up to 1000 meters above sea level and requires a clean indoor environment free of corrosive chemicals.

Industry Applications

In manufacturing facilities and process control environments, the 110XCA17102 connects I/O modules to the Quantum controller, enabling reliable data transfer. Its 3-meter length provides flexibility for cabinet layouts, making it suitable for both new installations and system upgrades. The cable's environmental specifications ensure stable performance in typical industrial control rooms and electrical enclosures.

Installation and Setup Guidance

When installing the 110XCA17102, ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference. Verify that the operating environment stays within the 0 to 40 degrees Celsius range and humidity below 80% RH without condensation. Secure the cable connectors firmly to the I/O module and expansion port to maintain a reliable connection. Use cable ties to manage excess length and prevent strain on the connectors.

Maintenance and Reliability

Regular inspection of the 110XCA17102 cable helps prevent unexpected downtime. Check for physical damage, loose connections, or signs of wear at least once during routine system maintenance. Keep the cable in a clean, dry environment to avoid moisture or chemical exposure. Following these simple steps extends the service life of the cable and maintains system reliability.

Compatibility and Integration

The 110XCA17102 is designed specifically for the Modicon Quantum series from Schneider Electric. It supports I/O expansion links and works with compatible I/O modules within the Quantum platform. This cable integrates seamlessly into existing Quantum systems, making it an ideal spare part for maintenance stock or system expansion projects.

Selection Guide and Purchasing Advice

Before ordering the 110XCA17102, verify that your system uses Modicon Quantum controllers and I/O modules. Confirm that the 3-meter length suits your cabinet layout and cable routing requirements. For current availability and lifecycle status, contact BluePLC Industrial. Our team can help you confirm compatibility and provide fast shipping for your automation needs.
