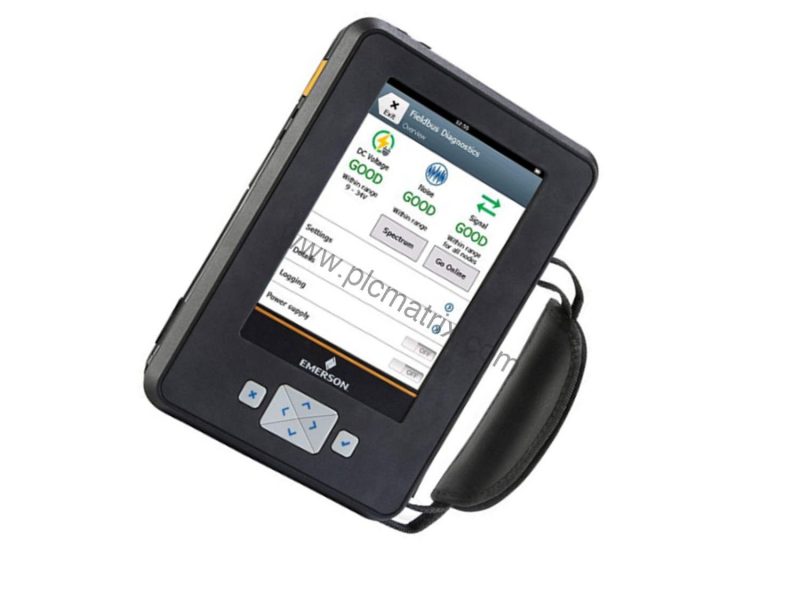

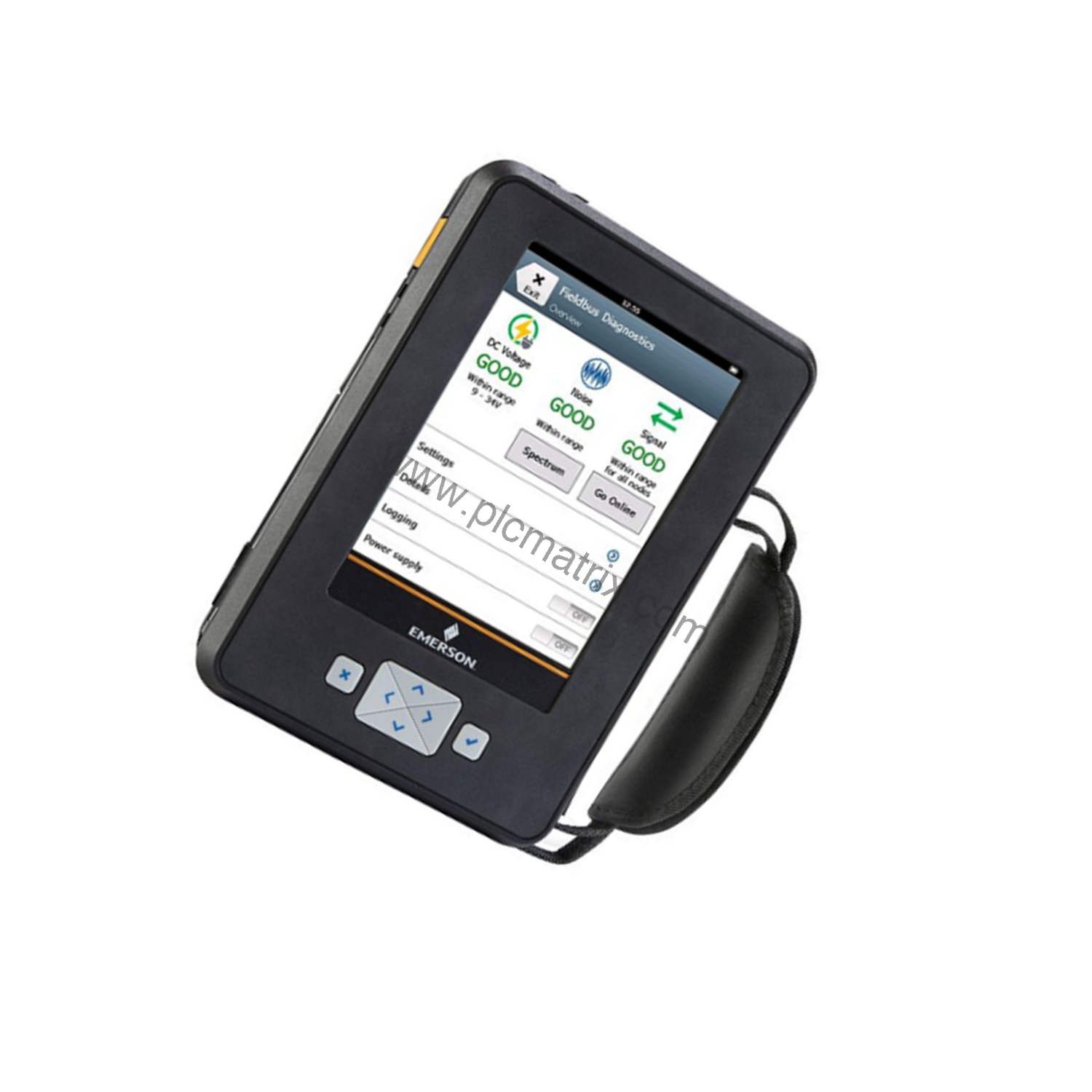

Honeywell TREXCHPNA9S1S AMS Trex Device Communicator for HART Applications

What Is the TREXCHPNA9S1S?

When field device configuration becomes a bottleneck in plant maintenance, the Honeywell TREXCHPNA9S1S delivers a portable solution. This AMS Trex Device Communicator from Emerson combines a rugged touchscreen interface with powerful processing to streamline HART device setup and diagnostics. Designed for industrial environments, it eliminates the need for bulky laptops in the field.

Technical Specifications Breakdown

The TREXCHPNA9S1S features a 5.7-inch (14.5 cm) color VGA resistive touchscreen with 640 x 480 pixel resolution, providing clear visibility even in bright sunlight. An 800 MHz ARM Cortex A8 microprocessor from NXP drives fast application performance, while 2 GB NAND internal flash and 32 GB extended flash offer ample storage for device configurations and firmware updates. The rechargeable Li-Ion power module ensures extended field operation without frequent recharging. Weighing only 1.5 kg, this communicator is easy to carry across large plants.

Industry Applications

In oil and gas refineries, the TREXCHPNA9S1S enables technicians to configure and troubleshoot HART field devices directly at the valve or transmitter, reducing downtime. Chemical processing plants benefit from its portable design, allowing quick calibration checks and loop verification without bringing equipment back to the workshop. The HART application support makes it ideal for any facility relying on HART protocol for process instrumentation.

Installation & Setup Guidance

Using the TREXCHPNA9S1S is straightforward. Connect the device communicator to a HART loop using the provided leads, power on the unit, and navigate the resistive touchscreen to select the target device. The intuitive interface guides you through configuration steps. Ensure the Li-Ion battery is fully charged before field deployment for uninterrupted sessions.

Maintenance & Reliability

To maintain reliable performance, periodically inspect the touchscreen for scratches and clean it with a soft, dry cloth. Keep the rechargeable Li-Ion power module charged according to manufacturer guidelines to extend battery life. The robust construction withstands typical industrial handling, but avoid exposure to extreme temperatures or moisture beyond specified limits.

Compatible Systems

The TREXCHPNA9S1S integrates seamlessly with Emerson AMS Device Manager software and supports HART-compatible field devices from multiple manufacturers. It works with pressure transmitters, temperature sensors, flow meters, and valve positioners that use the HART protocol. For integration into existing asset management systems, consult the device manual for compatibility details.

Buying Guide & Purchasing Advice

Before purchasing the TREXCHPNA9S1S, verify that your field devices support HART communication and that the included standard support (1 year) meets your service needs. The product comes with no additional radio options and no special approvals, making it suitable for general-purpose industrial use. BluePLC Industrial offers this communicator with reliable availability and expert support to ensure you get the right tool for your maintenance team.
