Honeywell TC-PTBC11 Terminal Base with Screw Clamps for Industrial I/O

What Is the Honeywell TC-PTBC11?

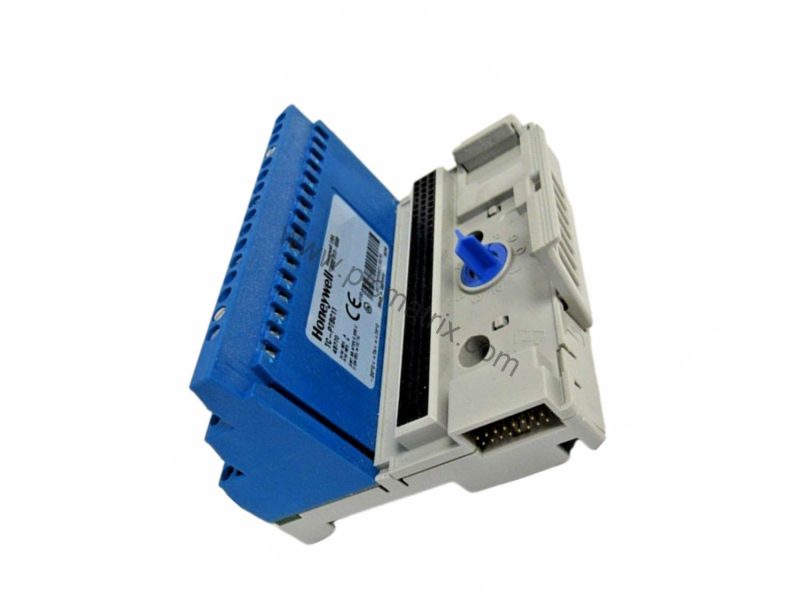

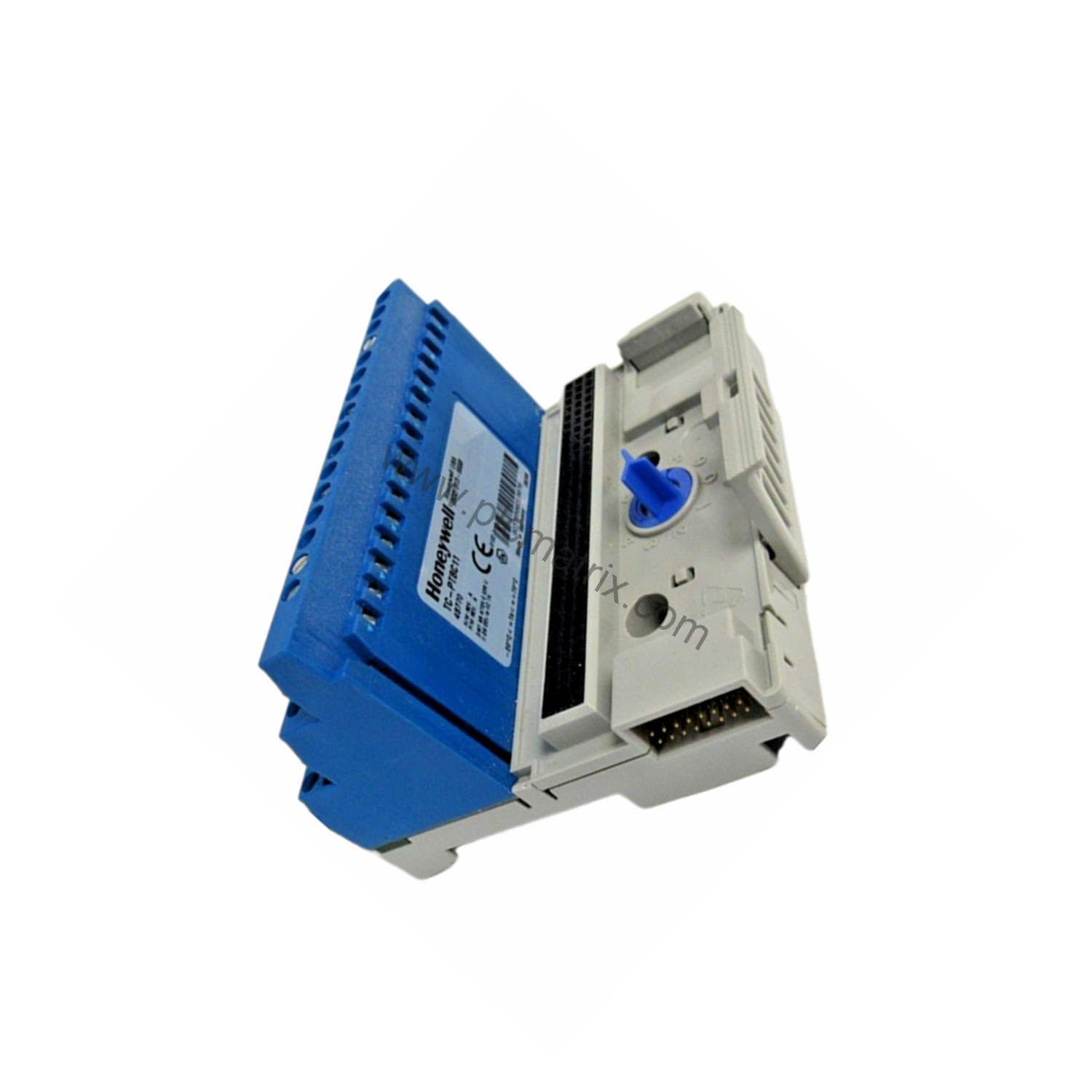

When your control system demands a reliable foundation for I/O modules, the Honeywell TC-PTBC11 terminal base with screw clamps delivers a secure, field-proven solution. This terminal base accepts one module per base and is mechanically keyed before wiring to prevent misinstallation. With 52 screw terminals arranged in one row of 16 and two rows of 18, it provides ample connection points for field wiring. The TC-PTBC11 is part of Honeywell’s trusted automation portfolio, engineered for demanding industrial environments.

Technical Specifications Breakdown

The TC-PTBC11 operates across a wide ambient temperature range of –20°C to 70°C (–4°F to 158°F) and can be stored from –20°C to 100°C (–4°F to 212°F). It withstands 15g peak shock for 11ms and vibration of 2g from 10Hz to 500Hz per IEC 68-2-6. The terminal base carries an IP20 protection class, requiring a separate IP54 or better housing for field installation. It weighs 0.228 kg (0.50 lb) and measures 92 x 94 x 94 mm (3.6 x 3.7 x 3.7 inches) with an I/O module installed. Wire cross sections from 0.2 to 2.5 mm² are accepted, with up to two 1.5 mm² cables per terminal.

Industry Applications

In process control and manufacturing lines, the TC-PTBC11 provides a stable mounting and wiring platform for Honeywell I/O modules. Its rugged design suits applications where temperature extremes and mechanical vibration are common, such as chemical plants, refineries, and heavy machinery. The terminal base’s ability to daisy-chain power using terminals +50 and –51 simplifies power distribution across multiple bases, reducing installation time and wiring complexity.

Installation & Setup Guidance

Mount the TC-PTBC11 on a DIN rail or panel within a suitable enclosure. Use M3 terminal screws with a 3.5 mm x 0.5 mm screwdriver for secure connections. Observe the terminal assignments: power supply connections at +34, –35, +50, and –51; terminals 36 and 49 must remain unconnected. The base is mechanically keyed before wiring, so confirm module compatibility and keying orientation prior to installation. For EMC compliance, mount in a cabinet with a copper seal and install ferrites on power supply and ControlNet coax cables.

Maintenance & Reliability

Routine inspection of the TC-PTBC11 should focus on terminal screw tightness and environmental conditions. The base is rated for 95% non-condensing humidity and passes pollution gas test level G3 per ISA-S71.04-1985. Periodic checks for dust accumulation and corrosion on terminals help maintain reliable connections. Because the terminal base is intrinsically safe (Ui ≤ 30Vdc, Ii ≤ 100mA), follow all applicable safety guidelines during maintenance. No internal repairs are recommended; replace the base if damaged.

Selection Guide & Purchasing Advice

Before ordering, verify that your I/O module is compatible with the TC-PTBC11 terminal base. Confirm the required number of terminals and power daisy-chain needs. BluePLC Industrial offers the Honeywell TC-PTBC11 with fast shipping and expert support. Contact our team to check current availability and lifecycle status. We help you select the right terminal base for your automation project.
