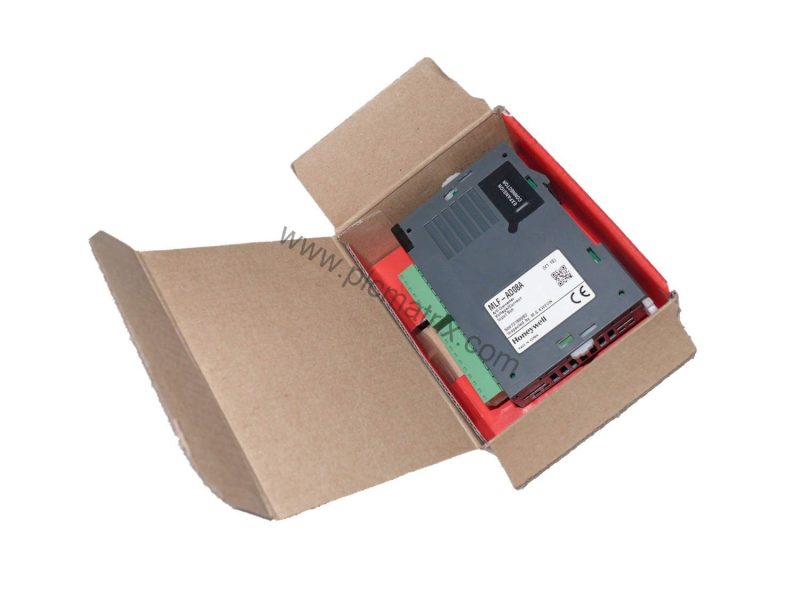

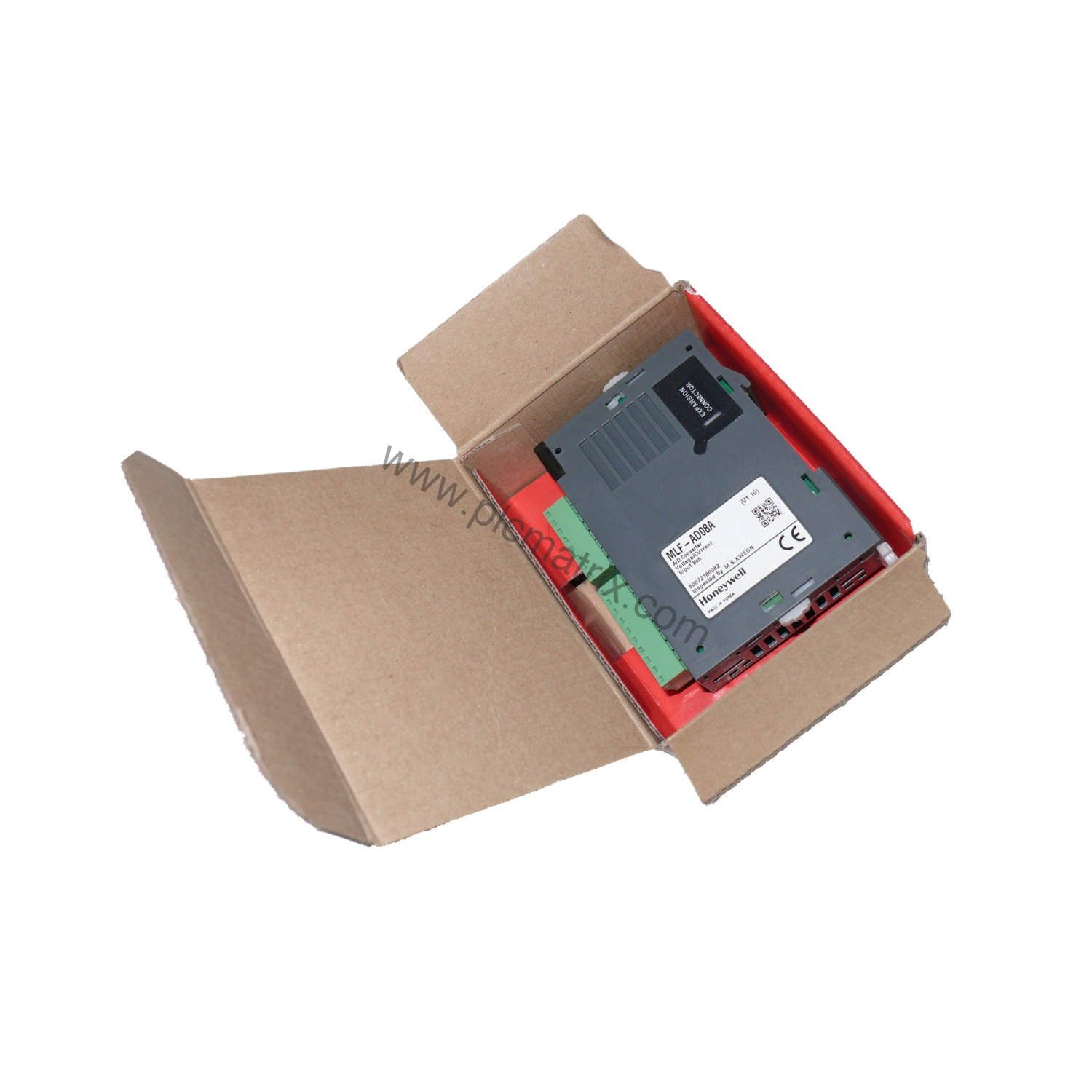

Honeywell MLF-AD08A Analog Input Module: 8-Channel Precision for Voltage and Current

Why Choose the Honeywell MLF-AD08A for Analog Input?

Struggling with signal noise or slow data acquisition in your control system? The Honeywell MLF-AD08A analog input module delivers reliable, high-speed conversion for both voltage and current signals, making it a versatile choice for demanding industrial applications. With 8 channels per module and a maximum conversion speed of 1.5 ms per channel, this module ensures your process data is captured accurately and quickly.

Technical Specifications Breakdown

The MLF-AD08A supports multiple analog input ranges to match various sensor outputs. For voltage inputs, you can select DC 1~5 V, DC 0~5 V, or DC 0~10 V with an input resistance of 250 MΩ minimum, ensuring minimal loading on the signal source. For current inputs, it accepts DC 4~20 mA or DC 0~20 mA with a 250 Ω input resistance. The module provides 12-bit binary resolution, offering 1.25 mV per digit for 1~5 V and 0~5 V ranges, 2.5 mV for 0~10 V, and 5 μA for current ranges. The absolute maximum input is ±15 V for voltage and ±25 mA for current, protecting the module from over-range conditions.

Digital output values are available in multiple formats: unsigned (0~4000), signed (-2000~2000), precise (e.g., 100~500 for 1~5 V), and percentile (0~1000). This flexibility simplifies scaling and integration with PLCs and DCS systems. The module occupies a fixed assignment of 64 I/O points and consumes DC 5V at 105 mA and DC 24V at 85 mA. Photo-coupler insulation between the I/O terminal and power supply enhances noise immunity and system reliability.

Industry Applications

In process control environments such as chemical plants or water treatment facilities, the MLF-AD08A excels at monitoring pressure transmitters, flow meters, and temperature sensors that output 4~20 mA or 0~10 V signals. Its fast 1.5 ms per channel conversion speed enables real-time data collection for critical loops. For machine automation, the module can read analog sensors in packaging or material handling systems, ensuring precise positioning and quality control. By replacing older, slower analog input modules with the MLF-AD08A, you reduce scan cycle times and improve overall system responsiveness.

Installation and Setup Guidance

Mount the MLF-AD08A securely in your control cabinet using the 11-point terminal block provided. Connect voltage or current signals to the appropriate terminals, ensuring polarity is correct. For current inputs, use a shielded twisted pair cable to minimize electromagnetic interference. Configure the input range via your PLC or DCS software to match the sensor output. The module automatically converts the analog signal to digital data in the selected format. Verify the power supply connections: DC 5V and DC 24V must be within specified tolerances. After wiring, perform a loop check by applying known signal values and confirming the digital output matches expected readings.

Maintenance and Reliability

Regular inspection of the terminal connections and cable integrity helps maintain signal accuracy. The photo-coupler insulation provides long-term isolation, reducing wear from electrical stress. With a weight of only 70 grams, the module is lightweight and easy to handle during maintenance. Periodically verify the analog input accuracy using a calibrated signal source to ensure the module continues to meet process requirements. Following these simple steps extends the service life of the MLF-AD08A and minimizes unplanned downtime.

Buying Guide and Selection Advice

Before purchasing, confirm that your control system supports the MLF-AD08A's fixed 64-point I/O assignment and power requirements. Verify the input signal types and ranges match your sensors. For new installations, consider ordering a spare module to reduce potential downtime. BluePLC Industrial stocks the Honeywell MLF-AD08A and can provide current availability and lifecycle status. Contact our team for assistance with compatibility or to discuss replacement options for older analog input modules.
