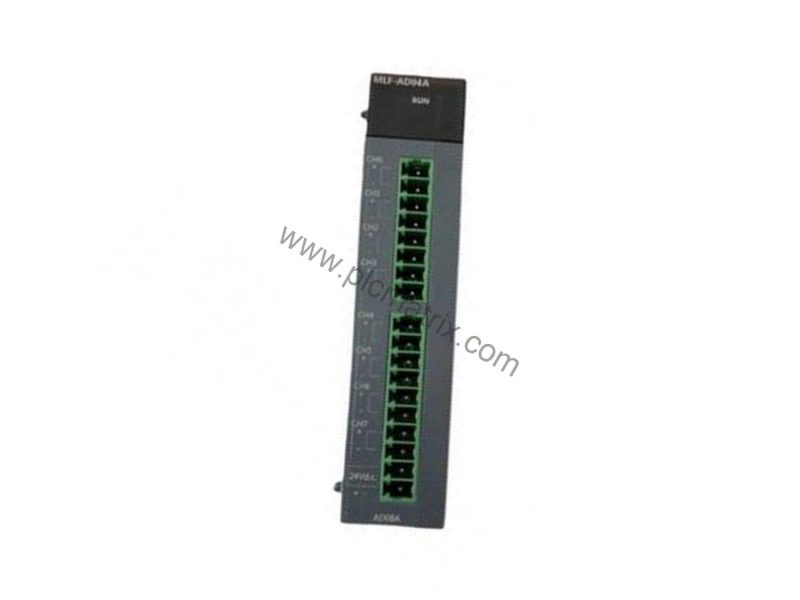

Honeywell MLF-AD04C Analog Input Module 4-Channel Voltage Current

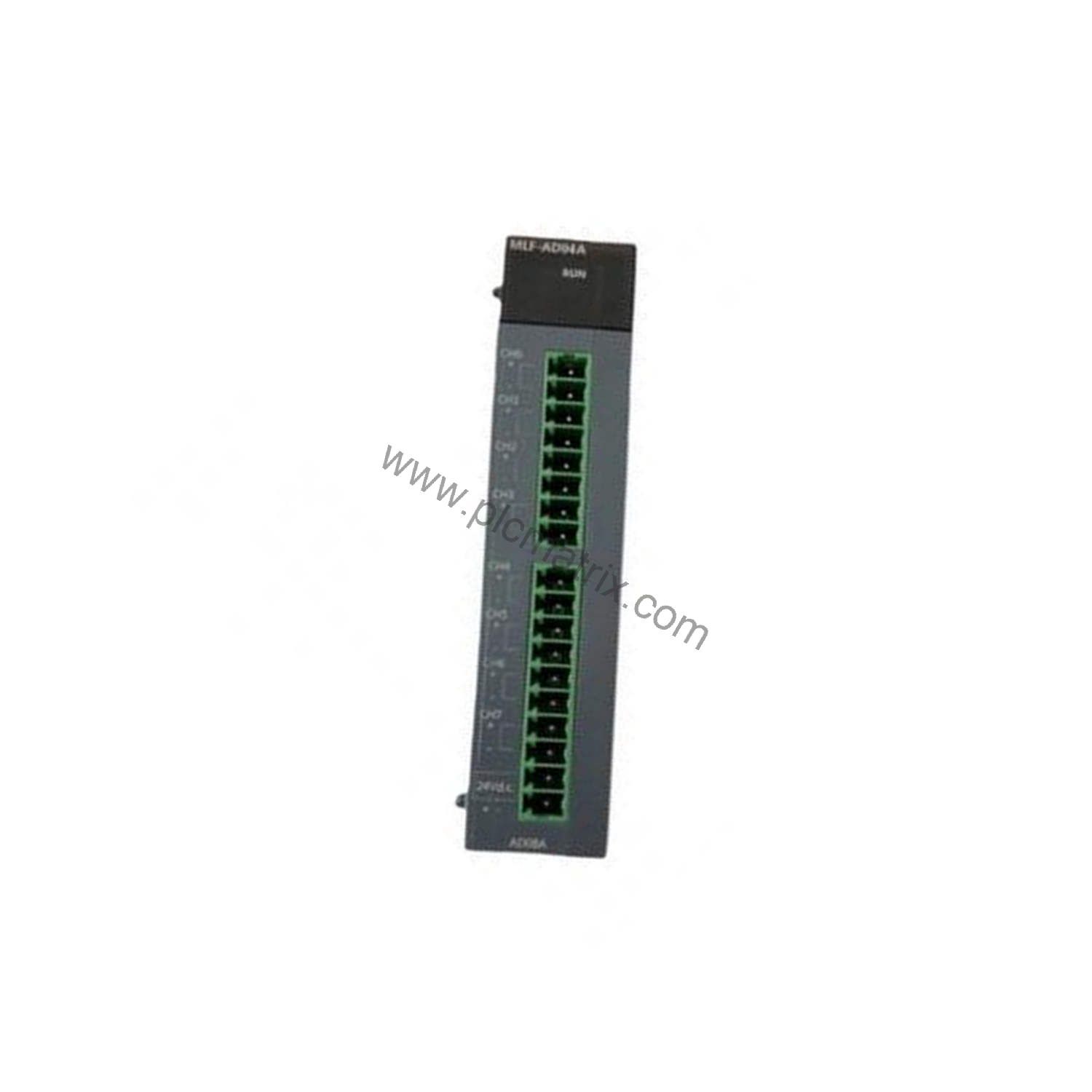

Product Introduction

When precise analog signal acquisition is critical, the Honeywell MLF-AD04C analog input module delivers reliable performance. This 4-channel module accepts both voltage and current inputs, making it versatile for various industrial sensing applications. With its high-voltage capability and robust isolation, the MLF-AD04C ensures accurate data conversion in demanding environments.

Technical Specifications Breakdown

The MLF-AD04C supports multiple input ranges: DC 1~5 V, DC 0~5 V, DC 0~10 V, DC -10~10 V for voltage, and DC 4~20 mA, DC 0~20 mA for current. Input resistance is 1 MΩ minimum for voltage and 250 Ω for current. Digital output uses 16-bit binary data (14-bit effective), with resolution as fine as 0.250 mV for the 1~5 V range and 1.0 μA for 4~20 mA. Maximum conversion speed is 1.0 ms per channel, enabling fast loop updates. Absolute maximum input is ±15 V or ±3 mA, protecting against overvoltage. Isolation uses photo-coupler insulation between input terminals and PLC power, though channels are not isolated from each other. The module occupies 64 fixed I/O points and consumes DC 5V 110mA and DC 24V 100mA. Weight is 120 g.

Industry Applications

In process control systems, the MLF-AD04C connects to pressure transmitters and temperature sensors using 4~20 mA loops, providing high-resolution data for precise regulation. For machine automation, the voltage input modes (0~10 V) interface with speed drives or position encoders, while the fast 1.0 ms conversion supports rapid response in motion control. The module’s 4-channel density saves rack space in crowded cabinets.

Installation & Setup Guidance

Mount the MLF-AD04C securely in the PLC rack using the 15-point terminal block. Wire analog signals with shielded twisted-pair cable to minimize noise. For current inputs, ensure the loop power supply matches the 250 Ω burden resistor. Configure input ranges via the host controller software; verify digital output scaling (unsigned 0~16000 or signed -8000~8000) matches your application. Avoid running signal wires near high-voltage lines to preserve signal integrity.

Maintenance & Reliability

Periodically inspect terminal connections for tightness and corrosion. The photo-coupler isolation protects against ground loops, but environmental factors like humidity can degrade performance over time. Keep the module within specified operating conditions (not explicitly listed; verify with manufacturer). Routine calibration checks every 12 months ensure accuracy remains within the 1/16000 resolution. The MLF-AD04C’s solid-state design minimizes wear, reducing unplanned downtime.

Selection Guide & Purchasing Advice

Before ordering, confirm that your PLC base supports the MLF-AD04C’s 64-point I/O assignment and power requirements (DC 5V 110mA, DC 24V 100mA). Verify the input signal types (voltage or current) and range match your sensors. For replacement or upgrade projects, the MLF-AD04C offers backward compatibility with existing Honeywell systems. BluePLC Industrial stocks this module and can advise on availability and lifecycle status. Contact our team to ensure the MLF-AD04C fits your application needs.
