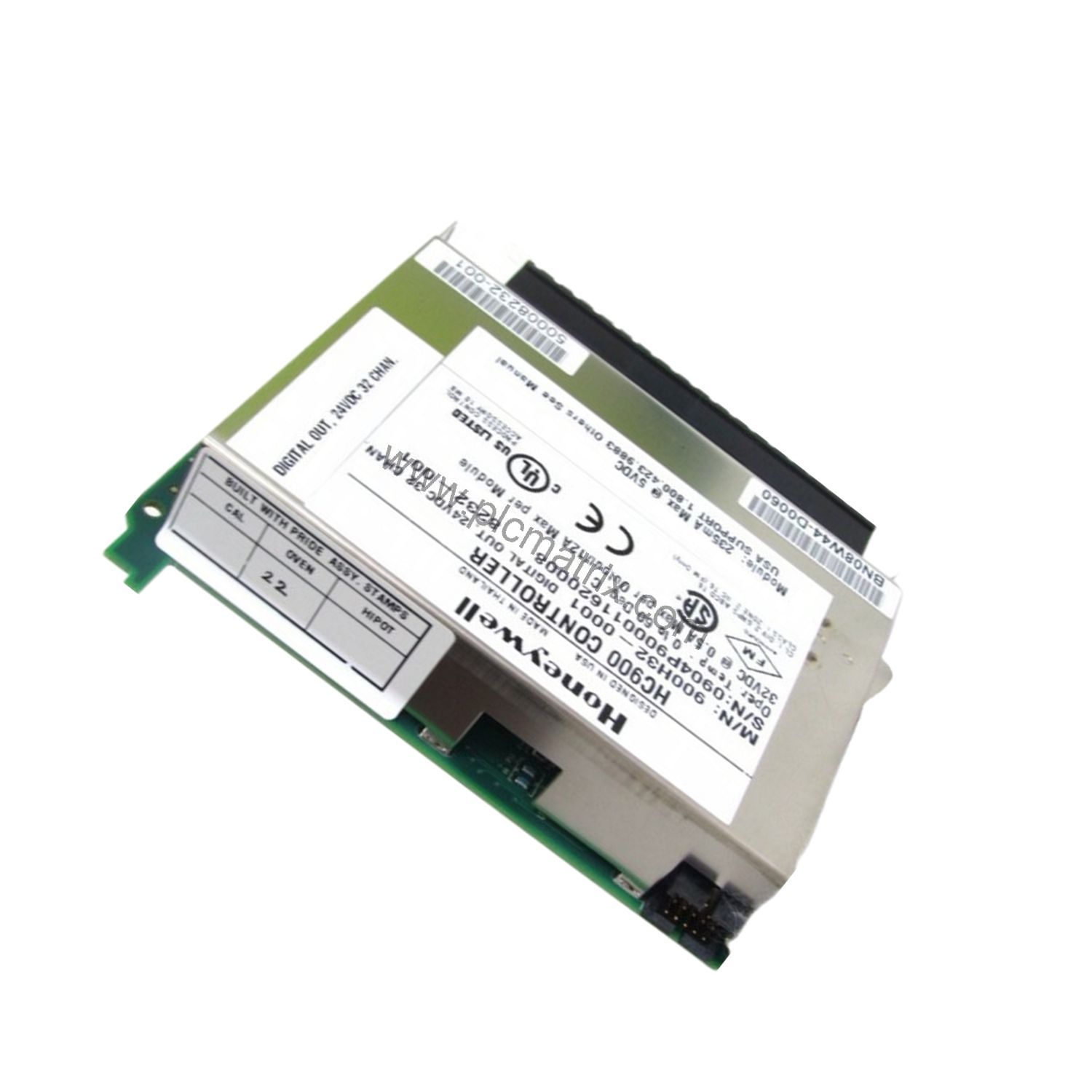

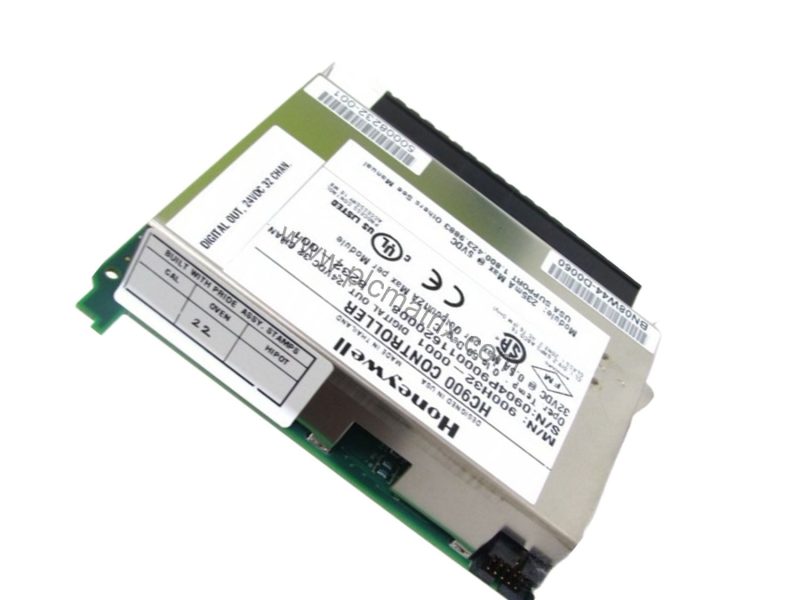

Honeywell 900U02-0100 Safety Universal Input/Output Module Overview

Introduction

As industrial automation evolves, safety systems must adapt to handle complex processes without compromising reliability. The Honeywell 900U02-0100 safety universal input/output module meets this challenge by integrating multiple I/O functions into a single, robust unit. Designed for demanding environments, it supports both analog input and output, making it a versatile choice for modern control architectures.

Technical Specifications Breakdown

The 900U02-0100 offers 16 channels in non-redundant configuration and 14 channels in redundant setup, ensuring flexibility for critical applications. It operates on a 24V field supply voltage, with a typical 24V DC and a minimum of 22V DC to a maximum of 27V DC. Each module can handle a load of up to 4.2 Amps, with 500 mA per channel. Isolation is rated at 1.5 kVDC between module and rack (logic side) and between modules. The update rate is 10 ms, and electronic short circuit protection (ESCP) per channel is set at 620 mA, resettable. Internal fuses include a non-replaceable 1 Amp per channel and an electronic 10 Amp field supply fuse.

For analog input, the module accepts 4-20 mA signals from 2, 3, or 4-wire devices, with HART support. It features 16-bit A/D converter resolution and an input impedance of 250 Ω nominal. Hardware accuracy is 0.1% of full-scale at 23.5 ± 2°C, and 0.17% of full-scale from 0 to +60°C. For redundant configurations, accuracy is 0.2% and 0.34% respectively. The transmitter field power is current limited to 24 mA, and the input filter is a first-order low-pass at 1 kHz.

Analog output provides 4-20 mA current loops with HART support, up to 8 channels assignable as channels 9 to 16. Accuracy is less than 0.5% of full scale at 25°C, including linearity over the entire operating temperature. Output ripple is ≤125 mV peak-to-peak across a 250 Ohm load. Output readback accuracy is 0.17% of full scale, and output current linearity is ±0.1% of full scale nominal. Resolution is 12 bits, with a directly settable output current range of 2.4 mA to 21 mA. Maximum resistive load is 7504 Ohms, minimum 250 Ohms, and maximum output compliant voltage is 14 VDC with a 24V supply range of 22 VDC through 28 VDC.

Industry Applications

In process industries like oil and gas, the 900U02-0100 ensures safe monitoring of pressure and temperature loops. Its redundant configuration supports high-availability systems where downtime is unacceptable. For chemical plants, the module's HART capability enables remote diagnostics and calibration, reducing maintenance costs. The 4-20 mA input range with 16-bit resolution provides accurate data for critical control loops.

Installation & Setup Guidance

Mount the 900U02-0100 securely in a compatible rack, ensuring proper grounding. Connect the 24V field supply within the specified voltage range (22-27V DC). For analog inputs, use shielded twisted-pair cables to minimize noise. Configure channel assignments via the system software, setting input or output modes as needed. Verify that the load does not exceed 4.2 Amps per module and 500 mA per channel.

Maintenance & Reliability

Periodically inspect the module for dust or debris that could affect cooling. Monitor the internal electronic fuses; if a fuse trips, check for short circuits in the field wiring. The non-replaceable per-channel fuse (1 Amp) protects against overcurrent, while the electronic field supply fuse (10 Amps) resets automatically. Regular testing of HART communication ensures consistent performance.

Compatibility & Integration

The 900U02-0100 integrates with Honeywell safety systems and supports HART-enabled field devices. It is designed for use with standard 24V DC power supplies and can be configured for non-redundant or redundant operation. For seamless integration, consult the system manual for specific controller compatibility.

Selection Guide & Purchasing Advice

Before purchasing, verify that your system supports the 900U02-0100 and that the field supply voltage matches your installation. Consider whether you need non-redundant or redundant configuration. Contact BluePLC Industrial for current availability and lifecycle status. They can provide expert advice on integration and replacement options.
