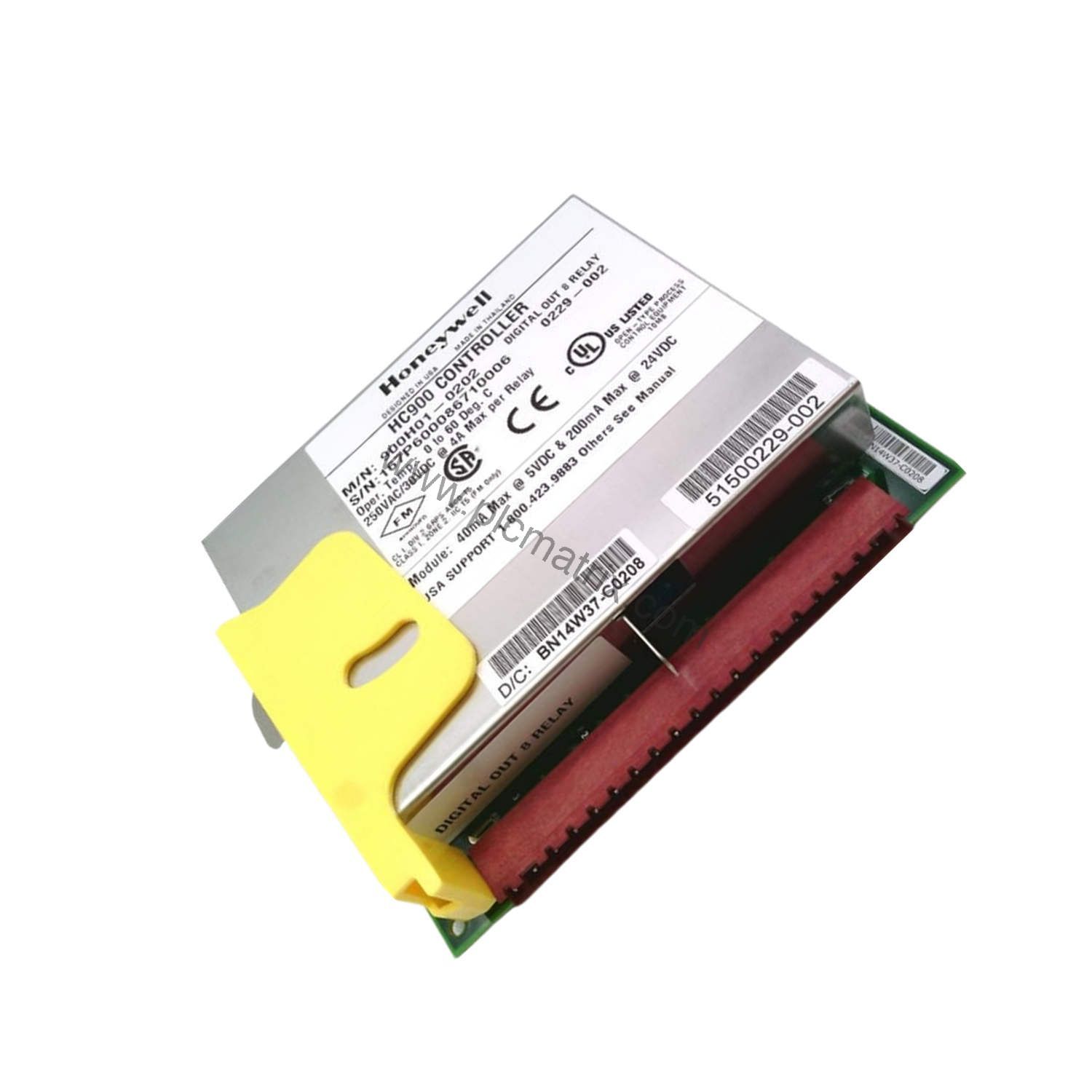

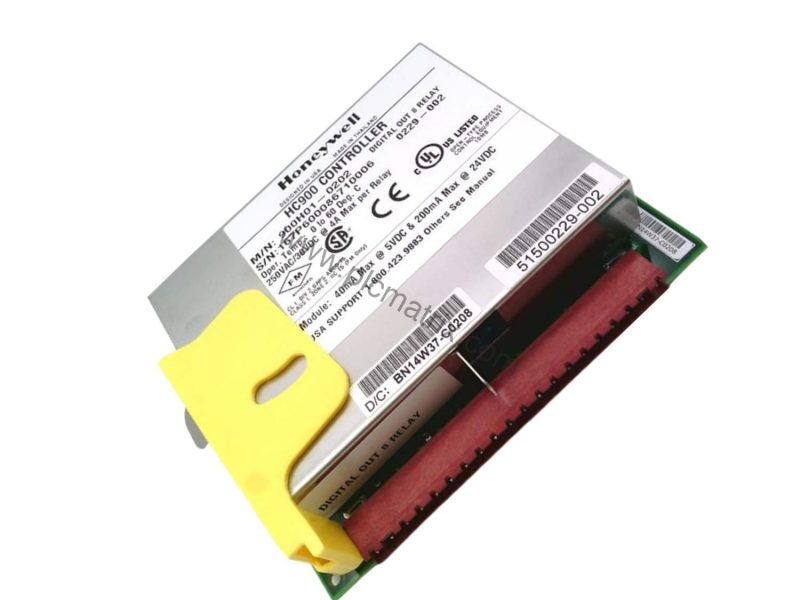

Honeywell 900H32-0302 Digital Output Module 24 VDC 32-Channel

Product Overview

When output module failures cause unexpected downtime, the Honeywell 900H32-0302 digital output module delivers robust performance with 32 high-side sourcing outputs. This module separates outputs into two groups of 16 channels, each powered externally via screw terminals for +V and COM connections. The 900H32-0302 integrates overload protection in four groups of eight channels, automatically shutting down a group if a short circuit occurs. No power cycling is required to reset the module after a fault, minimizing system interruptions.

Technical Specifications

The 900H32-0302 operates on 10.5 to 32 VDC and provides a maximum load current of 0.5 A per point, with 6 A max per channel group and 12 A max per module for resistive loads. It supports incandescent lamp loads up to 0.25 A per point (5 mH max). The ON voltage drop is 0.15 VDC at 0.5 A load, and maximum leakage current is 0.15 mA at 32 VDC. Inrush current reaches 2 A for 10 ms. OFF-to-ON and ON-to-OFF response times are both 6 ms, excluding controller scan and backplane transmission times. Galvanic isolation divides outputs into two groups of 16. The module features fail-safe state configuration with hold last state and failsafe state options, using electronic limiting for fuses. Operating temperature ranges from -40 to 70°C, with storage from -40 to 85°C.

Industry Applications

In manufacturing lines where actuator control is critical, the 900H32-0302 ensures reliable switching of solenoids, relays, and indicator lamps. Its high-side sourcing design simplifies wiring with common positive voltage, reducing installation errors. The overload protection per group prevents cascading failures, making it ideal for continuous process environments like chemical plants or assembly stations. For systems requiring deterministic response, the 6 ms switching time supports high-speed sequencing without delay.

Installation Guide

Mount the 900H32-0302 using a Euro style 36-terminal terminal block. Connect external power to each group's +V and COM screw terminals. Verify operating voltage stays within 10.5 to 32 VDC. Ensure total load per group does not exceed 6 A and per module stays under 12 A for resistive loads. For incandescent loads, limit each point to 0.25 A. The module's green LED per channel indicates output status, while a blinking green status LED shows scanning activity and a red LED indicates diagnostics. No power cycling is needed after a fault—the module resets automatically once the short circuit clears.

Maintenance and Reliability

Regularly inspect the 900H32-0302 for LED status indicators to identify potential faults early. The electronic current limiting protects against overloads without requiring manual reset, reducing maintenance intervention. Operate within the -40 to 70°C range to ensure long-term reliability. The module's robust design minimizes downtime, supporting continuous production in harsh industrial environments.

Compatibility and Integration

The 900H32-0302 integrates with Honeywell control systems using standard backplane communication. It requires a Euro style 36-terminal terminal block for field wiring. The module supports fail-safe configuration, allowing users to set hold last state or failsafe state for predictable behavior during communication loss. Verify compatibility with your controller's backplane and power supply before installation.

Selection Guide and Purchasing Advice

Before ordering the 900H32-0302, confirm your system's operating voltage range (10.5 to 32 VDC) and load requirements per point and per group. Ensure you have the correct Euro style terminal block. Contact BluePLC Industrial for current availability and lifecycle status. Our team can help verify compatibility and provide replacement options if needed.
