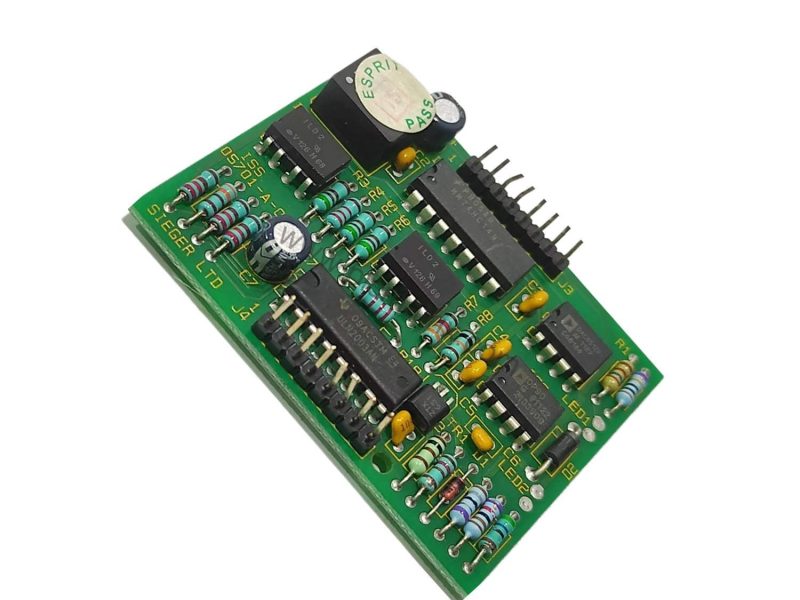

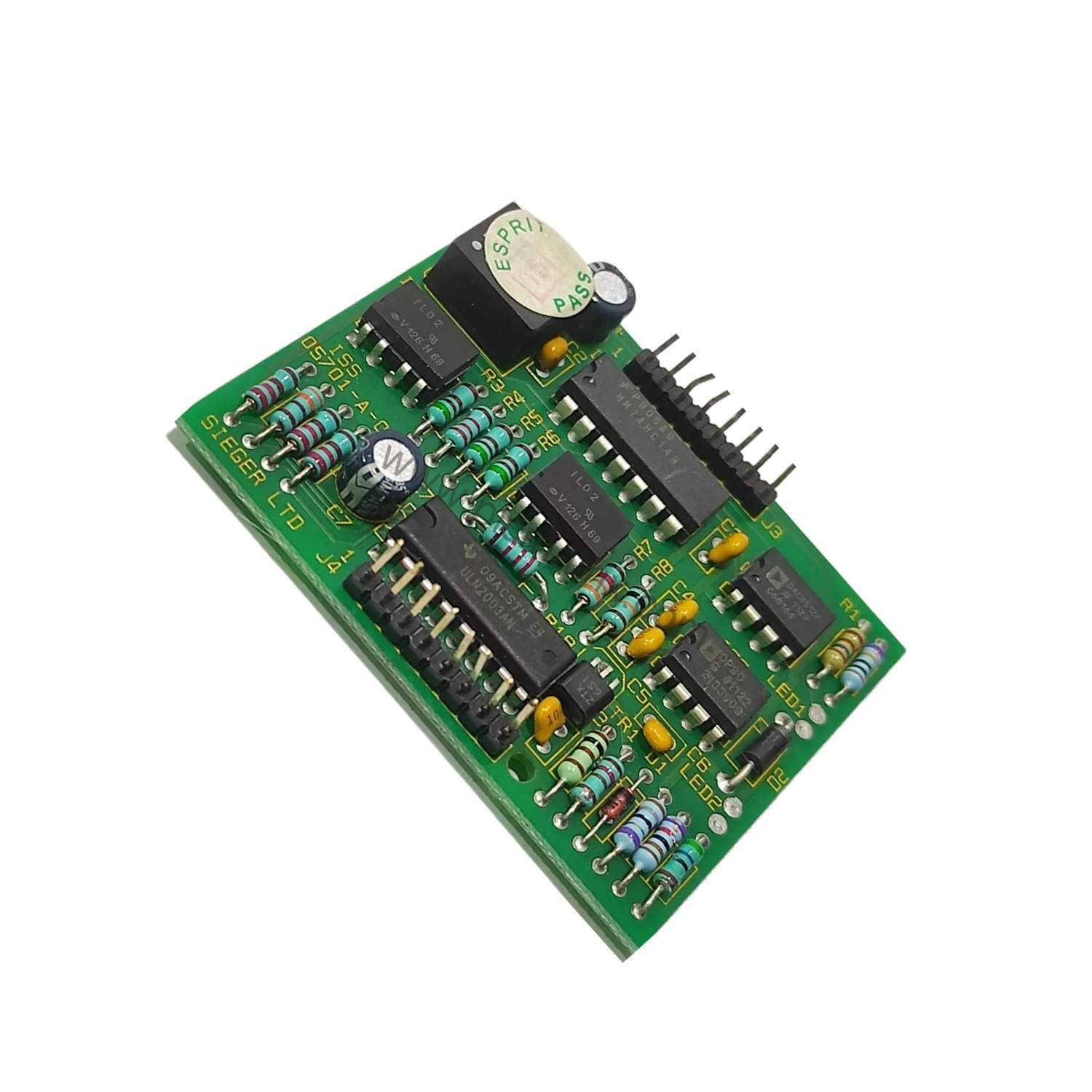

Honeywell 05701-A-0283 Sensor Drive Module for 4-20mA Signal Conditioning

Product Overview

When signal integrity and sensor power reliability impact your process control costs, the Honeywell 05701-A-0283 Sensor Drive Module delivers a cost-effective solution. This module conditions incoming catalytic or 4-20mA sensor signals while providing the necessary sensor power supply. It contains all circuitry to generate voltages and currents required to drive the sensor, acquire the signal, and scale it to a standard output. Factory-fitted, it plugs directly onto the channel control card, reducing installation labor and potential wiring errors.

Technical Specifications Breakdown

The 05701-A-0283 operates reliably in demanding environments, with an operating temperature range of -5°C to +55°C and storage from -25°C to +55°C. It withstands 0 to 90% RH non-condensing humidity, ensuring uptime in humid plants. Communication is robust: asynchronous serial data at 19200, 9600, 4800, or 2400 baud, with 8 data bits, 1 or 2 stop bits, and odd, even, or no parity in half-duplex mode. The Modbus RTU protocol supports functions 02, 03, 04, 06, and 16, enabling seamless integration with DCS and PLC systems. The RS485/422 interface, powered from the Engineering Card, consumes only 1.5W maximum—reducing energy costs. With a weight of 30g and field terminals accepting 2.5mm² (14 AWG) wire, installation is straightforward. The RS485 transceivers support up to 31 nodes (RS485) or 10 nodes (RS422) over 1200m (3900ft) at 19.2k baud, minimizing the need for repeaters. Input sensitivity of ±200mV and hysteresis of 20mV ensure noise immunity, lowering false trip risks. Thermal shutdown protection prevents damage, extending module life and reducing replacement expenses.

Industry Applications

In refinery and chemical plant applications, the 05701-A-0283 conditions catalytic sensor signals for combustion monitoring, improving safety and reducing unplanned shutdowns. Its wide temperature range and humidity tolerance make it suitable for outdoor skids and unheated shelters. For water treatment facilities, the module’s 4-20mA input and Modbus RTU output streamline integration with existing SCADA systems, cutting integration costs. The dual RS485 highway mode allows redundant communication paths, enhancing reliability without additional hardware investment.

Installation & Setup Guidance

Install the 05701-A-0283 by plugging it directly onto the channel control card—no special tools required. Use screened twisted pair cable with a separate drain wire for RS485/422 connections to minimize electromagnetic interference. Set the baud rate, parity, and stop bits via the engineering card to match your network. Verify the Modbus RTU mode and function codes (02, 03, 04, 06, 16) align with your master device. Proper grounding of the cable shield at one end only prevents ground loops, ensuring signal accuracy and reducing commissioning time.

Maintenance & Reliability

The 05701-A-0283 requires minimal maintenance due to its solid-state design and thermal shutdown protection. Inspect field terminal connections annually for tightness and corrosion, especially in high-humidity environments. The module’s low power consumption (1.5W max) reduces heat stress, extending service life. Periodic verification of Modbus communication integrity helps detect early wiring degradation, avoiding costly downtime. Following these simple steps maximizes ROI by delaying replacement intervals.

Compatibility & Integration

This module integrates with any system supporting Modbus RTU over RS485 or RS422. It works with Honeywell’s channel control cards and engineering cards, as well as third-party PLCs and DCS that support asynchronous serial data at 2400 to 19200 baud. The RS485 multi-drop capability (up to 31 nodes) allows cost-effective network expansion without additional interface modules. For RS422, up to 10 nodes are supported. The 50V isolation relative to system 0V protects against ground potential differences, ensuring reliable data transfer in mixed-vendor installations.

Selection Guide & Purchasing Advice

Before purchasing the Honeywell 05701-A-0283, verify that your system uses 4-20mA sensors requiring conditioned signals and that your control network supports Modbus RTU at the desired baud rate. Confirm the engineering card can power the module (1.5W max). For applications needing longer cable runs, the RS485 interface supports up to 1200m. Contact BluePLC Industrial for current availability and lifecycle status. Our team can help match this module to your existing Honeywell system, ensuring a cost-effective upgrade path.
