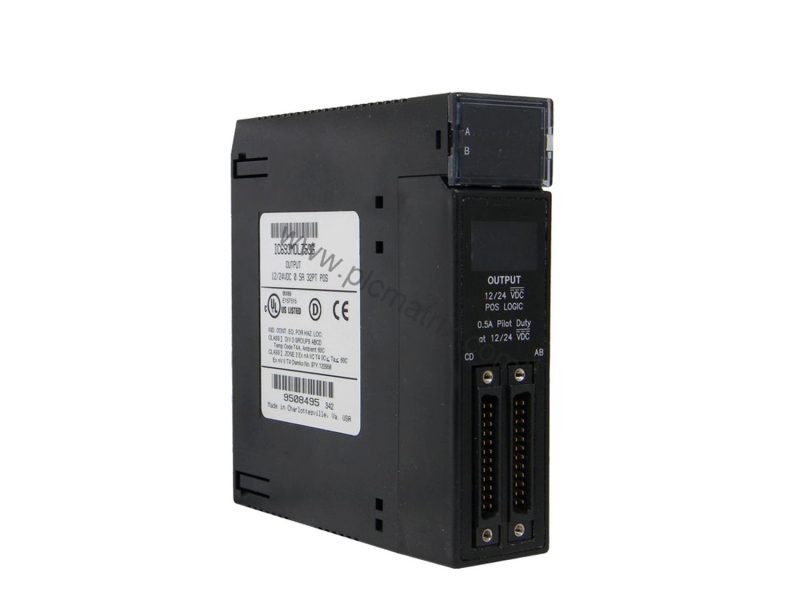

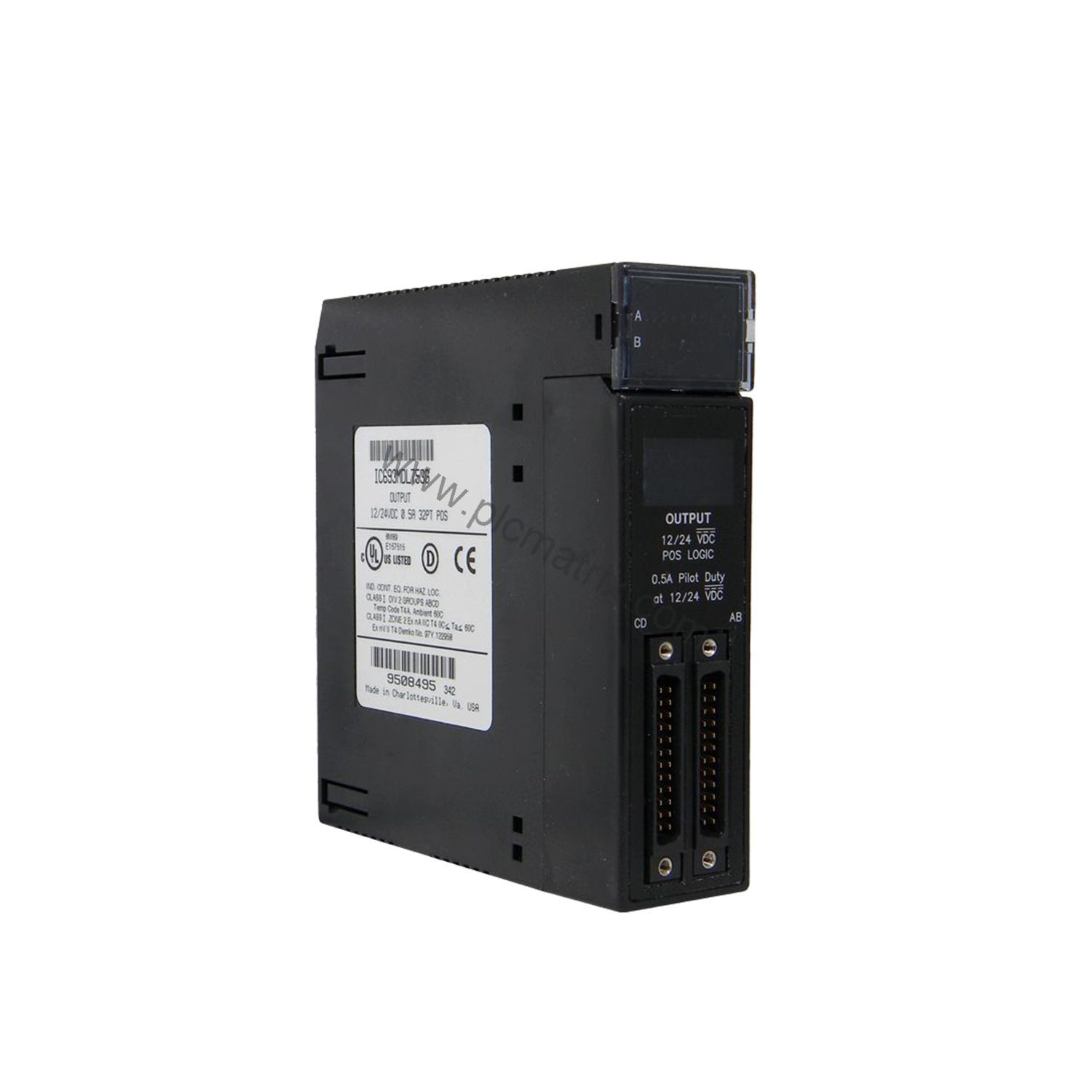

GE IC693MDL753 Series 90-30 Discrete Output Module 32 Points

Product Introduction

When industrial processes demand reliable discrete output control, the GE IC693MDL753 delivers consistent performance. Part of the Series 90-30 family, this positive logic module provides 32 output channels arranged in four groups of eight. Formerly manufactured by GE Fanuc and now supported by Emerson Automation, it remains a trusted choice for legacy and current automation systems. Each channel switches loads on the positive side of the power supply, simplifying wiring and reducing installation errors.

Technical Specifications Breakdown

The IC693MDL753 operates with a nominal output voltage of 12-24 VDC and supports a wide output voltage range of 10.2-28.8 VDC. This flexibility allows integration with various DC loads without additional converters. Isolation is a key feature: 1500 volts between field side and logic side protects the PLC backplane, while 250 volts between groups enables independent load circuits. Each output point delivers up to 0.5 Amperes, with a maximum of 4 Amperes per module and 3 Amperes per group common pin. These ratings ensure robust current handling for solenoid valves, relays, and indicator lamps. The module draws 260 milliamps from the 5 VDC backplane, keeping power consumption low and reducing overall system energy costs.

Industry Applications

In manufacturing lines, the IC693MDL753 controls multiple actuators from a single module, cutting per-point wiring expenses. For example, in a packaging machine, four groups of eight outputs can independently manage conveyor sections, diverters, and reject stations. This grouping reduces the need for additional I/O racks, lowering hardware and installation costs. In material handling systems, the module's fast 0.5 ms on and off response times enable precise timing for sorting and routing, minimizing product jams and downtime. By consolidating outputs, users achieve a lower total cost of ownership compared to using multiple smaller modules.

Installation & Setup Guidance

Install the IC693MDL753 in any available slot of a Series 90-30 chassis except those reserved for the CPU, communication adapter, or specialty modules. The module occupies a single slot and connects via two male 24-pin connectors on the front panel. Use the recommended cable assembly IC693CBL315 for reliable wiring. Ensure the backplane supplies 5 VDC to power the module. Each output group can serve a different load voltage within the 10.2-28.8 VDC range, but verify that the total current per group does not exceed 3 Amperes at the common pin. When the PLC CPU stops, all outputs are forced to the OFF state, providing a safe default condition.

Maintenance & Reliability

Routine inspection of the IC693MDL753 focuses on connector integrity and environmental conditions. Check that the 24-pin connectors are clean and securely seated to prevent intermittent faults. The module's opto-coupler isolation between logic and field sides protects against voltage transients, extending service life. With no moving parts, the primary wear points are the connectors and the backplane interface. Periodic cleaning of the chassis slot and connector pins with a dry, lint-free cloth helps maintain reliable contact. This low-maintenance design reduces labor costs and unplanned downtime, supporting a strong return on investment over the module's operational life.

Compatibility & Integration

The IC693MDL753 integrates seamlessly with GE Fanuc Series 90-30 PLCs as both local and distributed I/O. It works with any CPU in the series, limited only by the controller's I/O capacity and memory. The module's positive logic outputs are compatible with standard DC loads such as contactors, solenoids, and pilot lights. No special configuration software is required beyond standard PLC programming tools. For systems migrating from older GE PLC families, the Series 90-30 platform offers a straightforward upgrade path while reusing existing field wiring. Contact plcmatrix.com to verify compatibility with your specific CPU model and to check current availability of this discontinued module.
