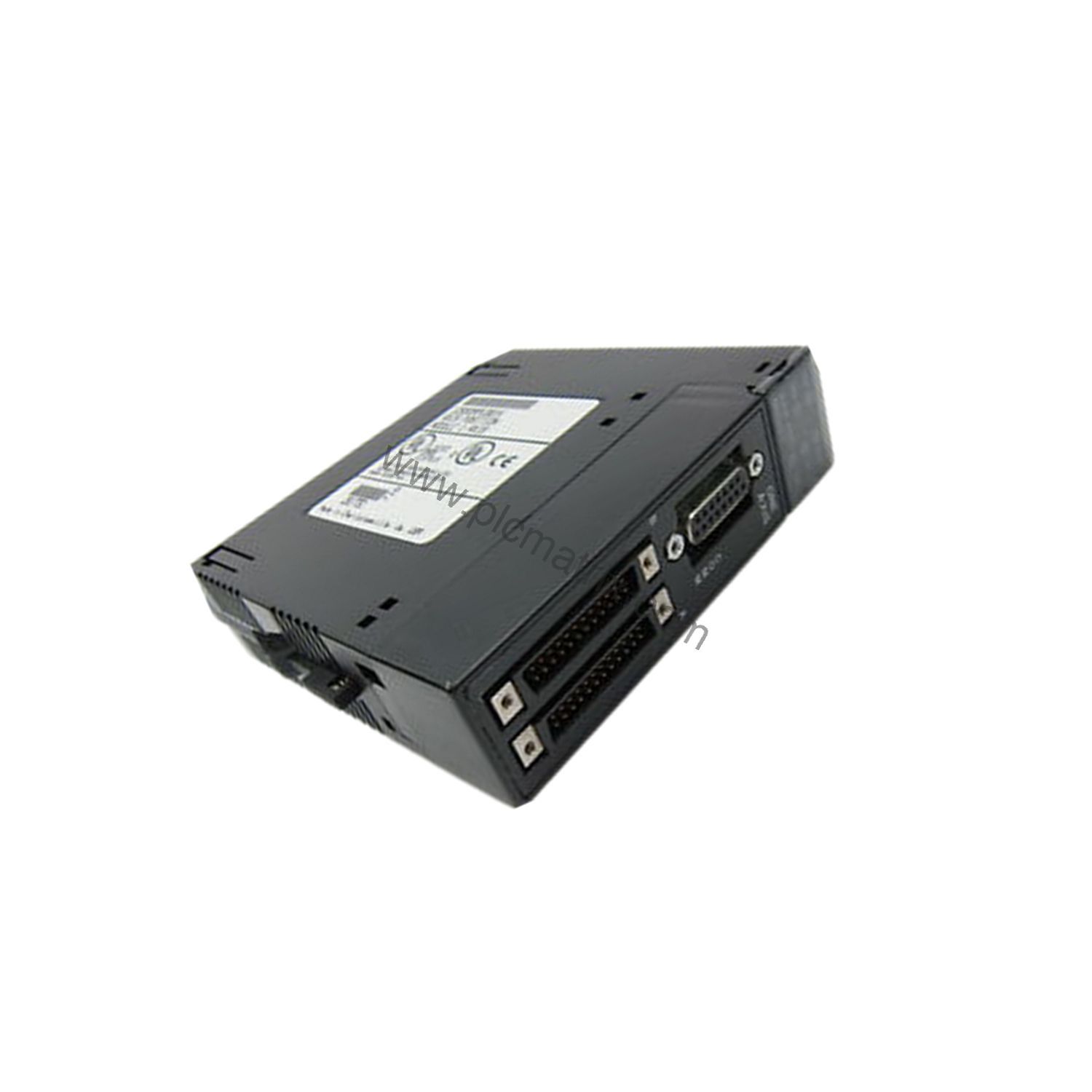

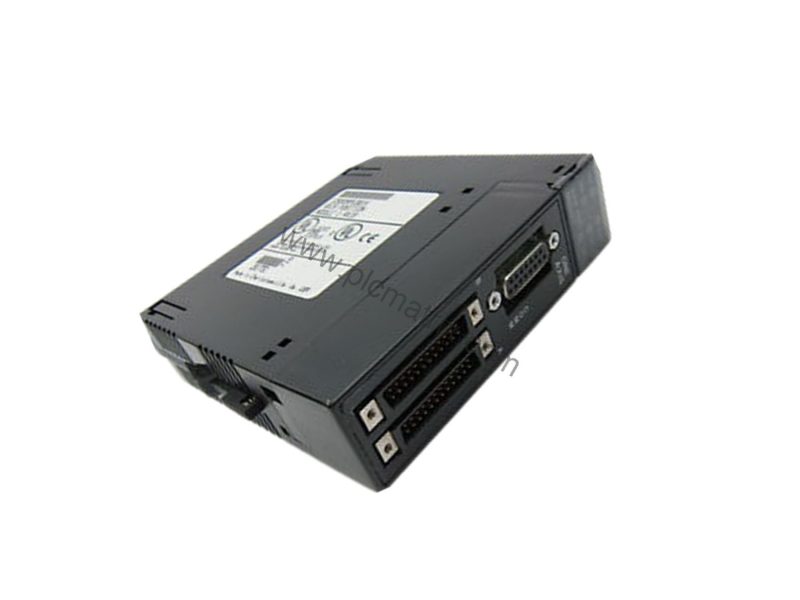

GE IC693APU301 Axis Positioning Module for Series 90-30 PLC

Product Introduction

When integrating motion control into a PLC system, the GE IC693APU301 Axis Positioning Module (APM) delivers precise single-axis servo control. Part of the Series 90-30 family, this module was formerly manufactured by GE Fanuc and is now supported by Emerson Automation. It combines PLC logic with high-performance motion control in a single slot, reducing system complexity and wiring costs.

Technical Specifications Breakdown

The IC693APU301 supports one motion axis with a servo loop update of 1 millisecond, enabling responsive positioning. It operates in two modes: standard mode for integrated PLC and motion control, and follower mode for electronic gearing in master-slave applications. Communication uses a 25-pin servo connection and a 24-pin high-density connector. LED indicators (EN1, EN2, STST, OK, CFG) provide quick status checks, minimizing downtime. The module fits a single slot and is compatible with CPUs 311, 313, 323, 331, and higher.

Industry Applications

In packaging lines, the IC693APU301 controls servo-driven cutters or conveyors with precise synchronization. For machine tool positioning, it manages single-axis slides or spindles, reducing scrap and rework costs. The follower mode enables electronic gearing for continuous processes like printing or labeling, eliminating mechanical gearboxes and lowering maintenance expenses.

Installation & Setup Guidance

Install the IC693APU301 in any Series 90-30 CPU or expansion baseplate. Use compatible cables: IC693CBL311 (10 ft), IC693CBL319 (3 ft), IC693CBL317 (10 ft with shield pigtail), or IC693CBL320 (3 ft with shield pigtail). Configure motion programs using Motion Programmer software and set parameters with VersaPro version 1.1 or later. Ensure no more than three APM modules per baseplate.

Compatibility & Integration

The IC693APU301 works with CPU 311, 313, and 323 (up to three modules per system) and CPU 331 and higher (up to eight modules). It integrates seamlessly with Series 90-30 PLCs, automatically transferring data between PLC tables and the APM. This reduces programming effort and speeds up deployment.

Maintenance & Reliability

Routine inspection of LED indicators and cable connections helps maintain uptime. The module’s 1 ms loop update ensures consistent performance, reducing wear on mechanical components. Given its discontinued lifecycle, verify availability with BluePLC Industrial to avoid production delays.

Selection Guide & Purchasing Advice

Before ordering the IC693APU301, confirm your CPU model and baseplate slot count. BluePLC Industrial stocks this module and compatible cables, offering fast shipping and expert support. Contact us to check current stock and find cost-effective alternatives if needed.
