GE Fanuc IC200ETM001 VersaMax Expansion Connector Module

Product Introduction

As industrial automation evolved from standalone controllers to distributed architectures, the need for flexible system expansion became critical. The GE Fanuc IC200ETM001 expansion connector addresses this challenge by enabling VersaMax PLC users to scale their control systems efficiently. Manufactured by GE Fanuc Automation as part of the Versamax product family, this module allows the addition of up to 7 extra racks, each accommodating up to 8 I/O modules including a field-bus communication module. This design supports growing automation demands without replacing existing hardware.

Technical Specifications

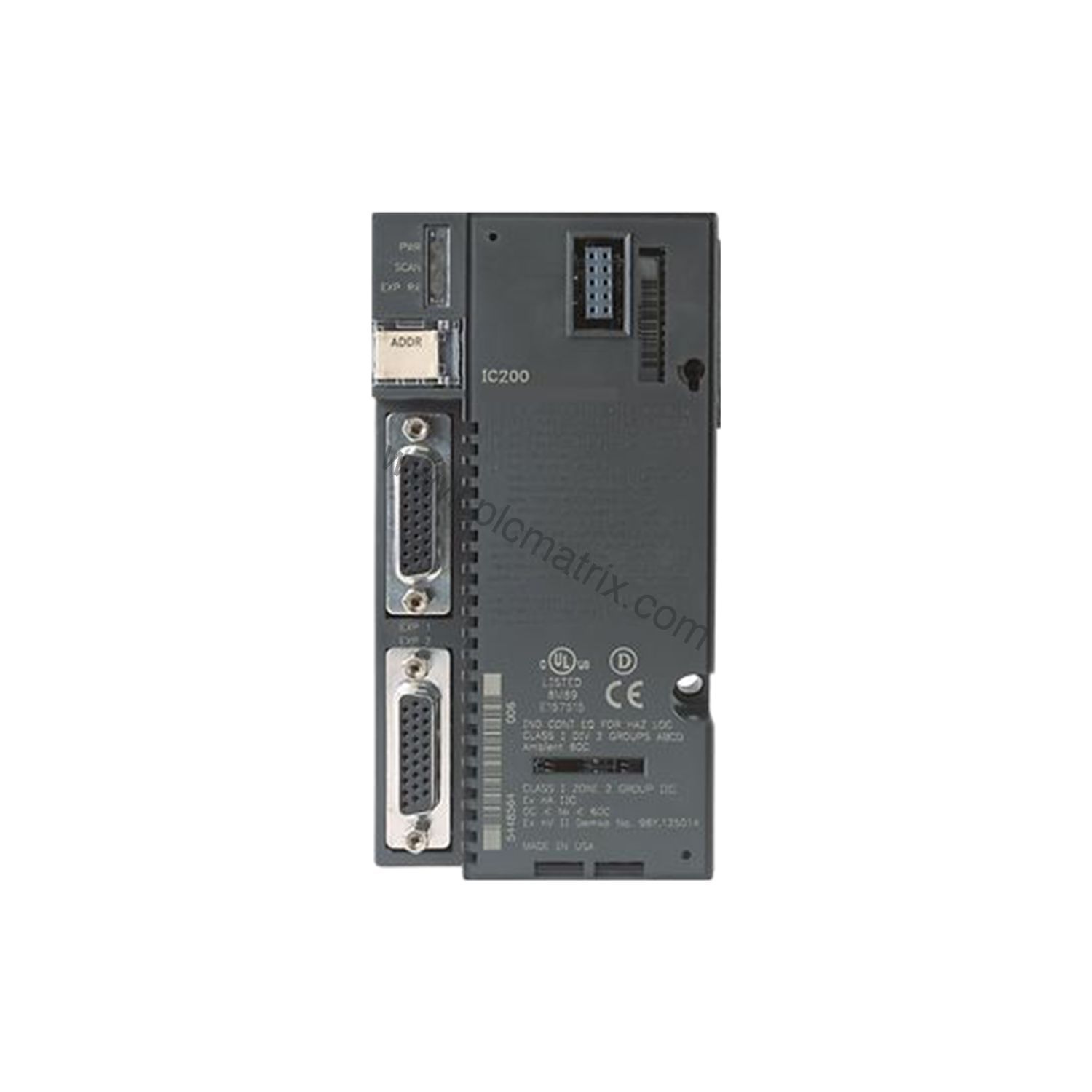

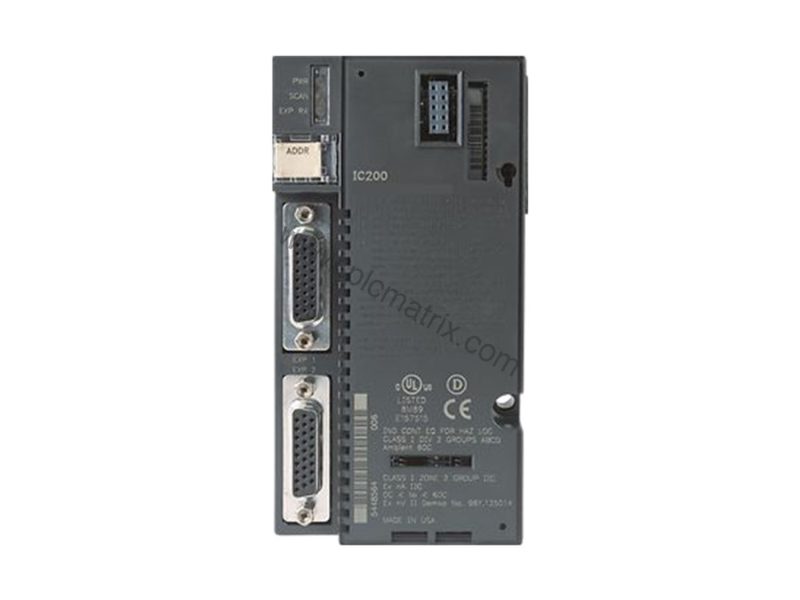

The IC200ETM001 features a 26-pin female connector on the front panel for linking to expansion receiver modules. A 16-pin serial port connector (male) located at the upper left corner facilitates firmware updates to the nearby Network Interface Unit (NIU). Two LED indicators provide clear status: one signals 5 Volts DC power from the CPU or NIU, while the EXP TX LED blinks to indicate active communication between the bus receiver module and the expansion transmitter. The module supports two types of expansion receivers: the non-isolated ERM002 and the isolated ERM001. Data transmission operates at 250 bits/sec, with cable lengths up to 15 meters for isolated modules and 750 meters for non-isolated modules. The IC200ETM001 mounts on a DIN rail and attaches to the left side of the VersaMax CPU.

Industry Applications

In manufacturing facilities where production lines expand over time, the IC200ETM001 enables cost-effective scalability. For example, a packaging plant can add sensor arrays and actuator modules across multiple racks without redesigning the entire control system. Similarly, in water treatment plants, distributed I/O points benefit from the long cable run capability of non-isolated modules, reaching remote monitoring stations up to 750 meters away. This flexibility reduces installation complexity and material costs.

Installation & Setup Guidance

Mount the IC200ETM001 securely on a standard DIN rail adjacent to the VersaMax CPU. Ensure the 26-pin female connector aligns properly with the expansion receiver module cable. Connect the 16-pin serial port to the NIU for firmware updates if needed. Verify that the power LED illuminates after connecting the CPU or NIU power supply. For isolated module setups, keep cable lengths within 15 meters to maintain signal integrity. For non-isolated configurations, the 750-meter maximum allows flexible placement of remote racks.

Maintenance & Reliability

Periodically inspect the LED indicators to confirm power and communication status. A steady power LED indicates proper voltage supply; if it turns off, check the connection to the CPU or NIU. The EXP TX LED should blink during normal operation; a steady off state suggests a communication fault. Keep the DIN rail mounting clean and free from vibration to ensure reliable contact. For isolated modules, verify cable shielding integrity to prevent noise interference over longer distances.

Compatibility & Integration

The IC200ETM001 integrates seamlessly with the VersaMax PLC family, including CPUs and NIUs that supply 5 Volts DC power. It works with both isolated (ERM001) and non-isolated (ERM002) expansion receiver modules. The 26-pin connector standardizes connections across the Versamax product line, simplifying spare parts management. For systems requiring firmware updates, the 16-pin serial port provides direct access to the NIU without additional adapters.

Selection Guide & Purchasing Advice

Before purchasing the IC200ETM001, confirm your existing VersaMax CPU or NIU supports expansion modules. Determine whether your application requires isolated or non-isolated receiver modules based on environmental noise and cable distance needs. Verify the total number of additional racks (up to 7) and I/O modules per rack (up to 8) to ensure adequate capacity. For current availability and lifecycle status, contact plcmatrix.com, a trusted supplier of GE Fanuc automation components. They can provide pricing, stock information, and compatible accessories to complete your system expansion.
