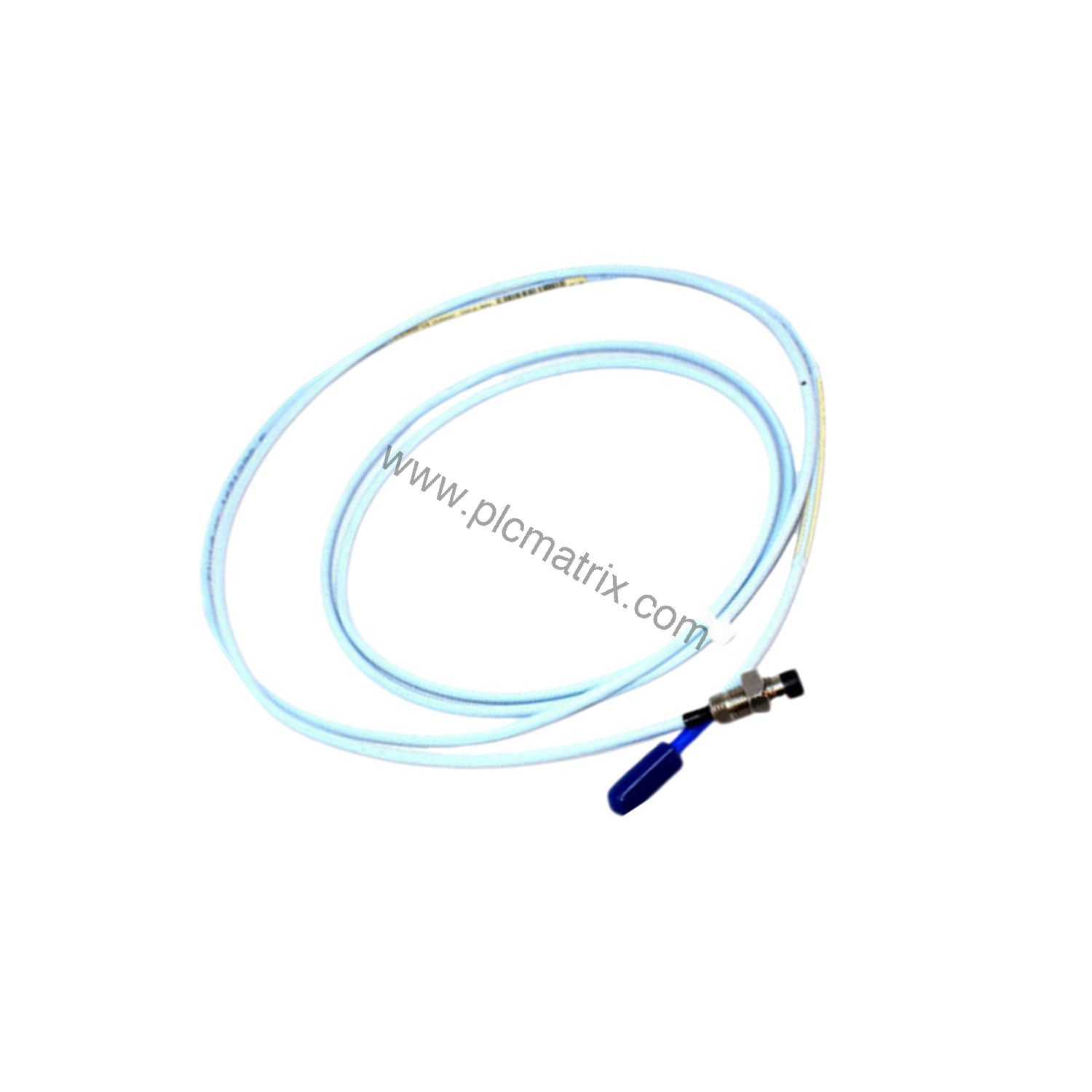

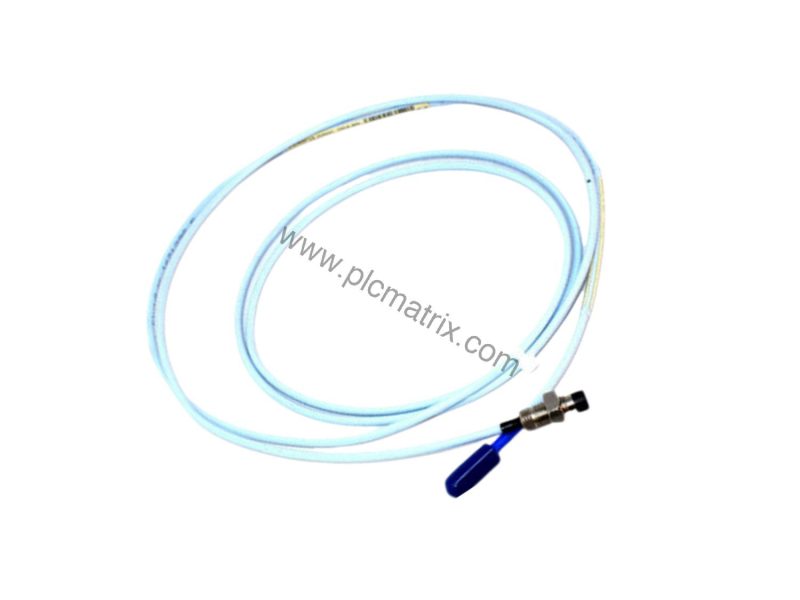

Bently Nevada 330104-00-23-10-02-00 3300 XL 8 mm Proximity Probe

What Is the 330104-00-23-10-02-00?

When rotating machinery vibration threatens uptime, how do you ensure accurate, repeatable measurements? The Bently Nevada 330104-00-23-10-02-00 3300 XL 8 mm Proximity Probe delivers reliable shaft displacement and vibration monitoring for critical turbomachinery, compressors, and pumps. This probe is part of the proven 3300 XL series, designed for harsh industrial environments.

Technical Specifications Breakdown

Probe Type: 3300 XL 8 mm Proximity Probe with M10 x 1 thread and armor for added durability.

Unthreaded Length: 00 mm, providing a flush tip configuration for close-clearance installations.

Overall Case Length: 230 mm (option 23), ensuring proper insertion depth.

Total Length: 1.0 meter (3.3 feet) with miniature coaxial ClickLoc connector and standard cable.

Probe Tip Material: Polyphenylene sulfide (PPS) for excellent wear and chemical resistance.

Probe Case Material: AISI 303 or 304 stainless steel (SST) for corrosion resistance.

Nominal Probe DC Resistance: 7.59 ± 0.50 Ω at 1.0 m length.

Pressure Rating: Designed to seal differential pressure between tip and case using a Viton O-ring.

Industry Applications

Vibration Monitoring in Turbomachinery

In steam turbines and gas turbines, the 330104-00-23-10-02-00 provides non-contact shaft displacement measurement. Its 8 mm diameter and 1.0 m cable length suit tight bearing housing installations. The PPS tip withstands oil mist and high temperatures common in turbine environments.

Compressor Protection

Centrifugal and axial compressors require precise rotor position monitoring to prevent rubs and surge events. This Bently Nevada probe delivers the accuracy needed for predictive maintenance programs, helping reduce unplanned downtime.

Installation & Setup Guidance

Mount the probe using the M10 x 1 threaded body. Ensure the unthreaded length (00 mm) allows the tip to extend fully into the measurement zone. Use the miniature coaxial ClickLoc connector for quick, secure cable attachment. Gap the probe at 1.27 mm (50 mils) to an AISI 4140 steel target for optimal linear range. Verify the system uses only 3300 XL 8 mm components for specified accuracy.

Maintenance & Reliability

Inspect the Viton O-ring seal periodically for signs of wear or leakage. Check the PPS tip for scratches or contamination that could affect measurement accuracy. The stainless steel case resists corrosion in most industrial environments. For maximum reliability, follow the manufacturer's guidelines for periodic verification of probe resistance and system calibration.

Compatibility & Integration

This probe works exclusively with 3300 XL 8 mm Proximitor Sensors and extension cables. It accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm probe. Power requirement: -17.5 Vdc to -26 Vdc (non-incendive) or -23 Vdc to -26 Vdc with barriers, at 12 mA maximum consumption. Output resistance is 50 Ω. For best performance, use the specified AISI 4140 steel target.

Buying Guide

Before ordering the 330104-00-23-10-02-00, verify your system voltage and target material. This probe does not include agency approvals (option 00). plcmatrix.com stocks this Bently Nevada proximity probe and can advise on compatible Proximitor sensors and extension cables. Please verify current lifecycle status and availability with plcmatrix.com before ordering.
