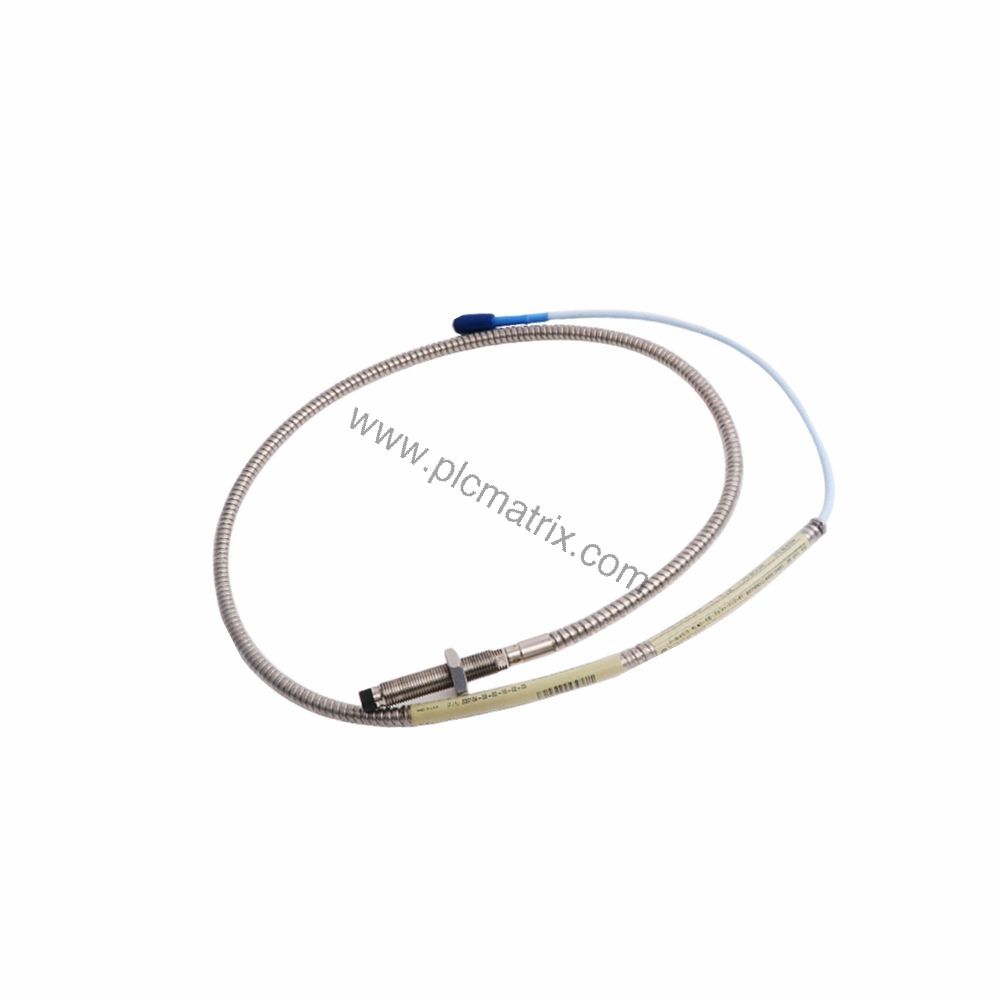

Bently Nevada 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probe, Metric

Why Do Vibration Monitoring Challenges Persist in Harsh Environments?

\n\nIn industrial rotating machinery, accurate vibration measurement is critical for predictive maintenance and preventing unplanned downtime. The Bently Nevada 330104-00-07-90-02-00 3300 XL 8 mm Proximity Probe addresses common failure modes like signal drift, temperature extremes, and pressure seal degradation. This probe delivers reliable, real-time displacement data for compressors, turbines, and pumps.\n\n

Product Overview

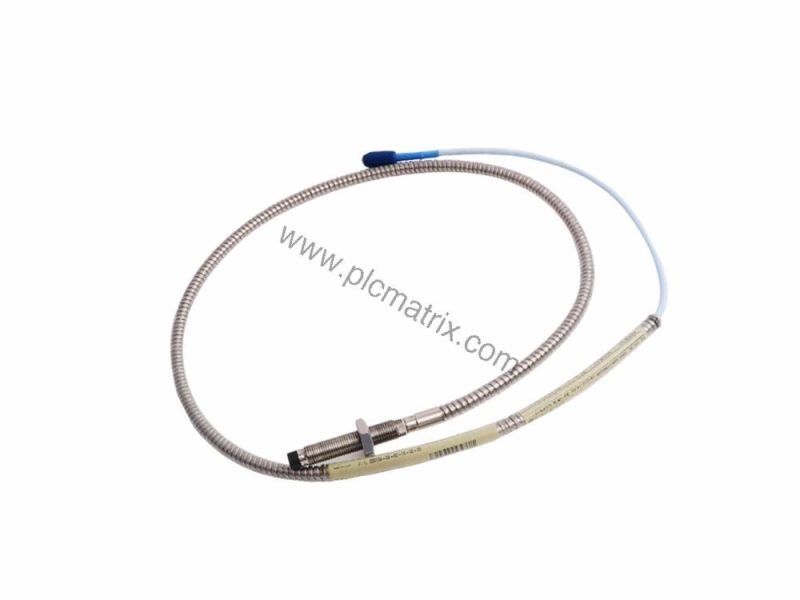

\n\nThe Bently Nevada 330104-00-07-90-02-00 is a 3300 XL 8 mm proximity probe designed for metric applications. It features a polyphenylene sulfide (PPS) probe tip and an AISI 303 or 304 stainless steel case. The probe uses an M10x1 thread and includes a miniature coaxial ClickLoc connector with standard cable. The total length is 9.0 meters (29.5 feet), making it suitable for installations requiring extended reach. This probe is part of the 3300 XL series, known for robust performance in vibration monitoring.\n\n

Technical Specifications Breakdown

\n\nThe 330104-00-07-90-02-00 offers a linear range of 2 mm (80 mils), starting at approximately 0.25 mm (10 mils) from the target. The recommended gap setting for radial vibration is -9 Vdc, corresponding to about 1.27 mm (50 mils). The nominal probe DC resistance is 9.87 ± 0.50 ohms for the 9.0-meter length. Field wiring accepts 0.2 to 1.5 mm² (16 to 24 AWG) conductors, with a maximum cable length of 305 meters (1,000 feet) between the probe and monitor. The probe operates in a standard temperature range of -52°C to +177°C (-62°F to +350°F), with extended range options for the tip up to +218°C.\n\n

Industry Applications

\n\nThis proximity probe excels in rotating machinery monitoring for oil and gas, power generation, and heavy manufacturing. In a steam turbine application, the 330104-00-07-90-02-00 provides precise shaft displacement measurements, enabling early detection of bearing wear or imbalance. Its PPS tip and stainless steel case resist corrosive atmospheres common in chemical plants. The probe's ability to seal differential pressure between tip and case using a Viton O-ring makes it suitable for pressurized environments.\n\n

Installation & Setup Guidance

\n\nProper installation ensures optimal performance. Mount the probe with the M10x1 thread, ensuring thread engagement does not exceed 15 mm. Use a 3-conductor shielded triad cable for field wiring, and tin the ends for reliable connections. Set the gap to -9 Vdc for radial vibration measurements. The linear range begins at 0.25 mm from the target, so avoid mounting closer than this distance. For best results, follow the recommended field wiring length limits to maintain signal integrity.\n\n

Maintenance & Reliability

\n\nThe 330104-00-07-90-02-00 is built for long service life with minimal maintenance. The probe's sealing material, a Viton O-ring, withstands harsh chemicals and high temperatures. However, exposing the probe to temperatures below -34°C (-30°F) may cause premature failure of the pressure seal. Regularly inspect the cable and connector for damage, especially in high-vibration areas. The probe's relative humidity tolerance is excellent, with less than a 3% change in Average Scale Factor after 56 days at 93% humidity per IEC 68-2-3.\n\n

Compatibility & Integration

\n\nThis probe integrates seamlessly with Bently Nevada 3300 XL Proximitor sensors and monitoring systems. When installed with intrinsically safe zener barriers per drawing 141092 or galvanic isolators, it meets Class I, Zone 0 requirements. For non-incendive circuits per drawing 140979, it qualifies for Class I, Zone 2. These certifications ensure safe operation in hazardous areas. Always verify compatibility with your existing monitoring equipment before installation.\n\n

Selection Guide & Purchasing Advice

\n\nBefore ordering the 330104-00-07-90-02-00, confirm your application's thread type (M10x1), cable length (9.0 meters), and connector style (miniature coaxial ClickLoc). This model does not include agency approval; select the appropriate option if required. For current availability and lifecycle status, contact plcmatrix.com. As a trusted supplier of industrial automation components, plcmatrix.com offers this probe along with expert support to ensure you select the right part for your machinery monitoring needs.
