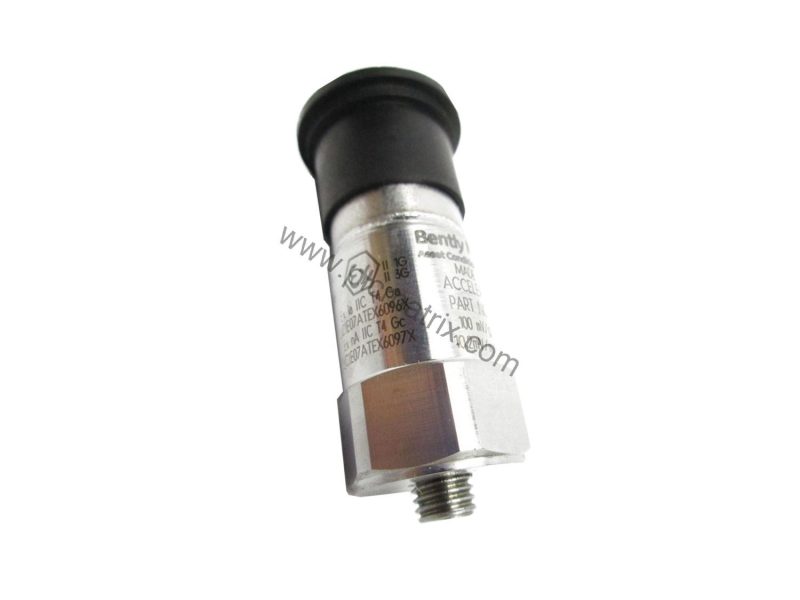

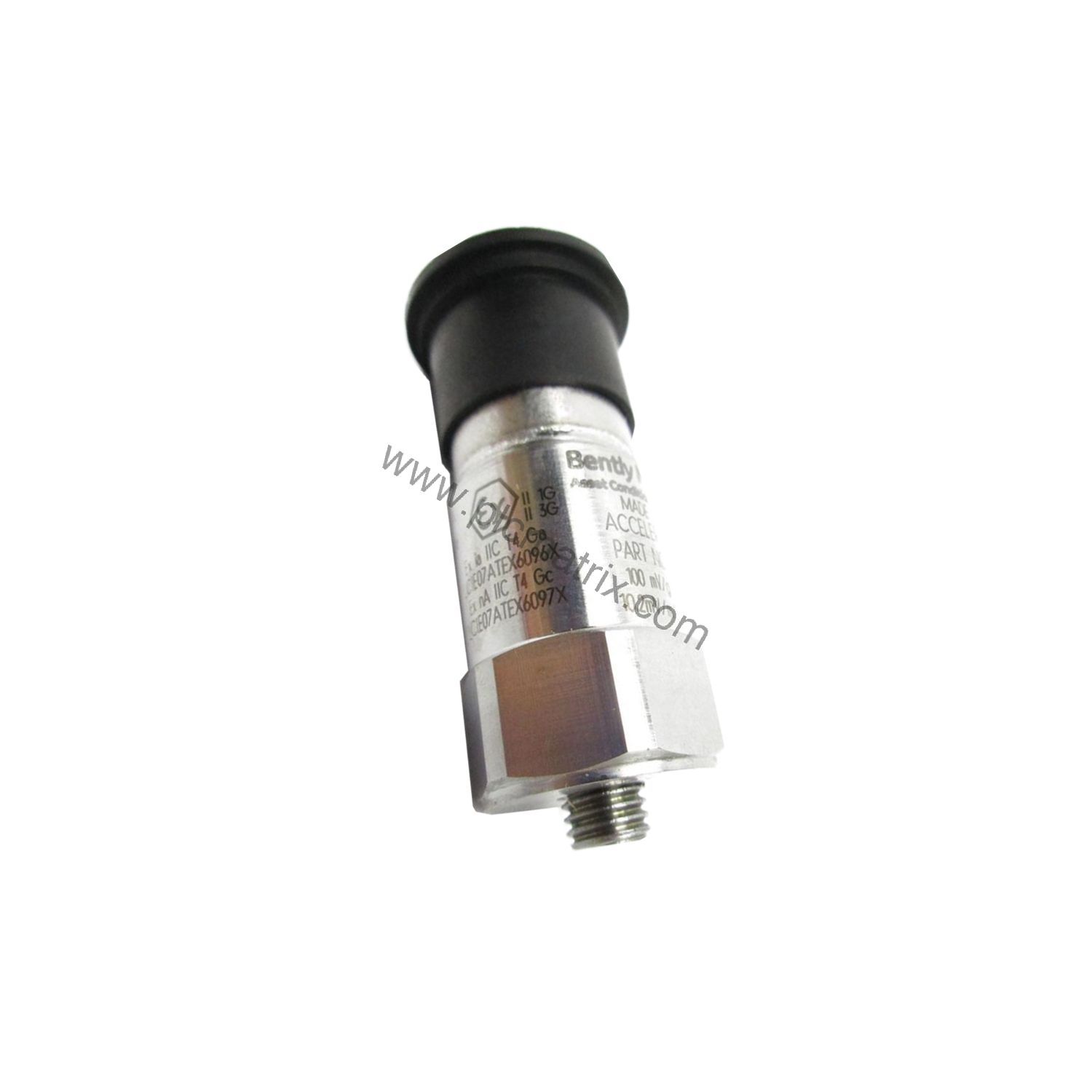

Bently Nevada 200350-11-00-CN 200350 Accelerometer, 100 mV/g, IP68

Product Introduction

When machinery vibration threatens uptime, the Bently Nevada 200350-11-00-CN 200350 Accelerometer delivers precise, reliable data. This sensor is part of the trusted 200350 series, designed for continuous monitoring in demanding industrial settings. With a sensitivity of 100 mV/g ±20% and a frequency range of 30-600,000 cpm (0.5-10,000 Hz), it captures a wide spectrum of vibration signals. The accelerometer features a ceramic shear sensing element, stainless steel housing, and welded hermetic sealing, ensuring long-term stability even in harsh conditions.

Technical Specifications Breakdown

Key performance parameters of the 200350-11-00-CN include:

Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%) – provides consistent output for accurate vibration analysis.

Frequency Range: 30-600,000 cpm (0.5-10,000 Hz) – covers low to high frequency vibrations common in rotating machinery.

Measurement Range: ±50g – suitable for moderate to high vibration levels.

Broadband Electrical Noise (1-10 kHz): 350 μg (3,434 μm/s²) – low noise floor ensures signal clarity.

Output Bias Voltage: 8 to 12 VDC – standard for industrial data collectors.

Excitation Voltage: 18 to 28 VDC – compatible with most vibration monitoring systems.

Constant Current Excitation: 2 to 20 mA – flexible integration.

Operating Temperature Range: -65°F to +250°F (-54°C to +121°C) – withstands extreme thermal environments.

Enclosure Rating: IP68 – protected against dust and prolonged immersion.

Shock Survivability: 5,000 g pk – robust against mechanical shocks.

Electrical Isolation (Case): >108 ohms – prevents ground loops.

Housing Material: Stainless Steel – corrosion resistant.

Sealing: Welded Hermetic – prevents moisture ingress.

Electrical Connector: 2-Pin Mil-C-5015 – industry standard.

Mounting Thread: 1/4-28 Female – common for industrial stud mounts.

Mounting Torque (Maximum): 2 to 5 ft-lb (2.7 to 6.8 N-m) – ensures proper installation.

Weight: 0.051 kg – lightweight for easy mounting.

Industry Applications

This accelerometer excels in predictive maintenance programs for:

Rotating Machinery: Pumps, motors, fans, and compressors benefit from continuous vibration monitoring to detect bearing wear, imbalance, and misalignment.

Oil & Gas: Refinery equipment operating in extreme temperatures and corrosive environments rely on the IP68-rated, stainless steel construction.

Power Generation: Turbines and generators require reliable vibration data; the 200350-11-00-CN delivers consistent performance across a wide frequency range.

Installation & Setup Guidance

Proper mounting is critical for accurate readings. The accelerometer uses a 1/4-28 female thread and is supplied with an M6x1 adhesive stud mount (Mounting Stud code 11). Apply the recommended mounting torque of 2 to 5 ft-lb (2.7 to 6.8 N-m) to ensure good mechanical coupling. Use a constant current excitation source between 2 to 20 mA and verify output bias voltage of 8 to 12 VDC. The 2-Pin Mil-C-5015 connector simplifies wiring. Allow 2.0 seconds settling time after power-up for bias stabilization.

Maintenance & Reliability

The welded hermetic sealing and stainless steel housing make this accelerometer virtually maintenance-free under normal conditions. Its IP68 rating allows operation in condensing humidity and non-submerged wet environments. Periodic inspection of the cable and connector for damage is recommended. The ceramic shear sensing element offers excellent long-term stability, reducing the need for recalibration. With a mounted resonant frequency of 1500 kcpm (25 kHz), it reliably measures high-frequency vibrations without resonance interference.

Selection Guide & Purchasing Advice

Before ordering the Bently Nevada 200350-11-00-CN, verify your system's excitation voltage (18-28 VDC) and constant current range (2-20 mA). Confirm the mounting thread compatibility (1/4-28 female) and ensure the measurement range of ±50g suits your application. For complete technical specifications, contact BluePLC Industrial. We stock this accelerometer and can advise on compatible cables and accessories. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
