Bently Nevada 200157-07-05 Enveloping Trendmaster Pro Accelerometer

Case Study: Solving Bearing Failure in High-Speed Machinery

A paper mill faced repeated, costly failures in its roller element bearings, leading to unplanned downtime and maintenance expenses. The root cause was subtle cavitation effects that standard accelerometers could not detect early. The Bently Nevada 200157-07-05 Enveloping Trendmaster Pro Accelerometer provided the solution. Its specialized enveloping channel type, used with the ProTIM option, isolates bearing fault signatures from background noise, enabling predictive maintenance. This case illustrates how the 200157-07-05 transforms vibration monitoring in demanding industrial environments.

Product Overview

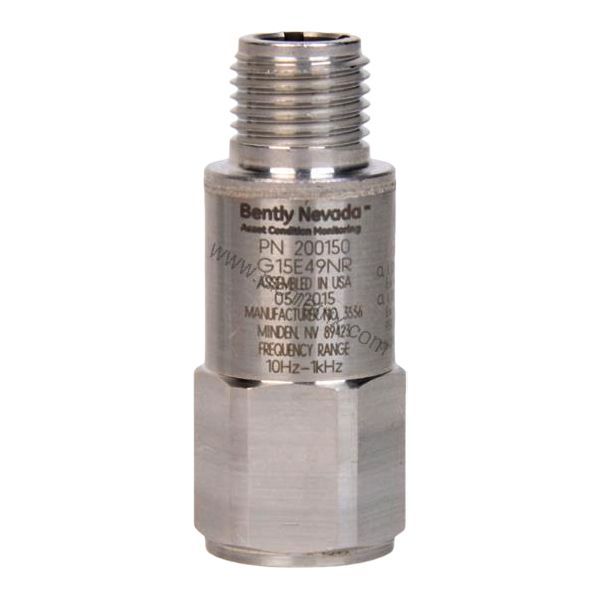

The Bently Nevada 200157-07-05 is an Enveloping Trendmaster Pro Accelerometer designed specifically for monitoring roller element bearings and detecting certain types of cavitation effects. Manufactured in the USA, this accelerometer uses a ceramic shear sensing element housed in 316L stainless steel. It delivers reliable performance in harsh conditions, with a temperature range of -40 °C to +105 °C and 100% condensing humidity tolerance. The unit features a mounting stud option of 3/8-24 to 3/8 NPT with a 3/4 inch hex stud, ensuring secure installation.

Technical Specifications

Sensitivity and Measurement Range

At 80 Hz, the sensitivity is 10.2 mV/(m/s²) (100 mV/g) with ±12% tolerance. The measurement range reaches ±245 m/s² (±25 g), making it suitable for high-amplitude vibration environments. For low-level detection, the range extends to 14.7 mm/s² (1.5 mg).

Frequency Response and Resonant Frequency

The frequency range is 10 to 10,000 Hz (600 to 600,000 cpm), referenced to 80 Hz with ±10% tolerance. The mounted resonant frequency exceeds 20 kHz (>1200 kcpm), ensuring accurate readings across the operating band.

Electrical Characteristics

Excitation voltage ranges from 4.7 to 5.5 Vdc. The quiescent current is less than 800 µA, and the output bias voltage is +2.5 ± 0.23 Vdc. Settling time within 5% of bias is ≤300 ms. Amplitude linearity is ±2% (1 to 10 g pk), and transverse sensitivity is ≤7%.

Environmental and Physical Attributes

Axial shock limit is 49,050 m/s² pk (5,000 g pk). The unit weighs 58 g (2.0 oz) typical, with dimensions of 17.5 mm x 45.7 mm (11/16 in x 1.8 in). Mounting torque is 2.7 to 6.8 N•m (2 to 5 ft•lbf). The hermetic seal withstands 5X10⁻⁸ atm•cc/s maximum.

Industry Applications

Roller Element Bearing Monitoring

In industries like paper, steel, and mining, roller element bearings operate under high loads and speeds. The 200157-07-05's enveloping technology extracts early fault signatures, allowing maintenance teams to schedule repairs before catastrophic failure. This reduces downtime and extends bearing life.

Cavitation Detection in Pumps

Cavitation in centrifugal pumps causes vibration and erosion. The accelerometer's sensitivity and frequency range capture cavitation-induced signals, enabling operators to adjust flow conditions or replace components proactively.

Installation and Setup Guidance

Mount the 200157-07-05 using the provided 3/8-24 female thread. Apply the specified mounting torque of 2.7 to 6.8 N•m (2 to 5 ft•lbf) to ensure proper coupling without damaging the sensor. Use the 3/8-24 to 3/8 NPT stud adapter for NPT ports. Allow 24 hours cure time after installation for optimal performance. Connect SIG+ and SIG- per polarity: SIG+ positive with respect to SIG- for acceleration from base to connector.

Maintenance and Reliability

Regularly inspect the accelerometer for physical damage or corrosion, especially in condensing humidity environments. Verify output bias voltage stays within +2.5 ± 0.23 Vdc. The hermetic sealing minimizes contamination risks. For safety-rated applications, follow the manufacturer's safety manual for testing intervals. Routine checks every six months help maintain reliability.

Selection Guide and Purchasing Advice

Before ordering the 200157-07-05, confirm compatibility with your ProTIM option and mounting thread requirements. The unit comes with multiple approvals (CSA, ATEX, and IECEx), suitable for hazardous locations. BluePLC Industrial offers this accelerometer with expert support to ensure correct selection. Contact BluePLC Industrial for current availability and lifecycle status.
