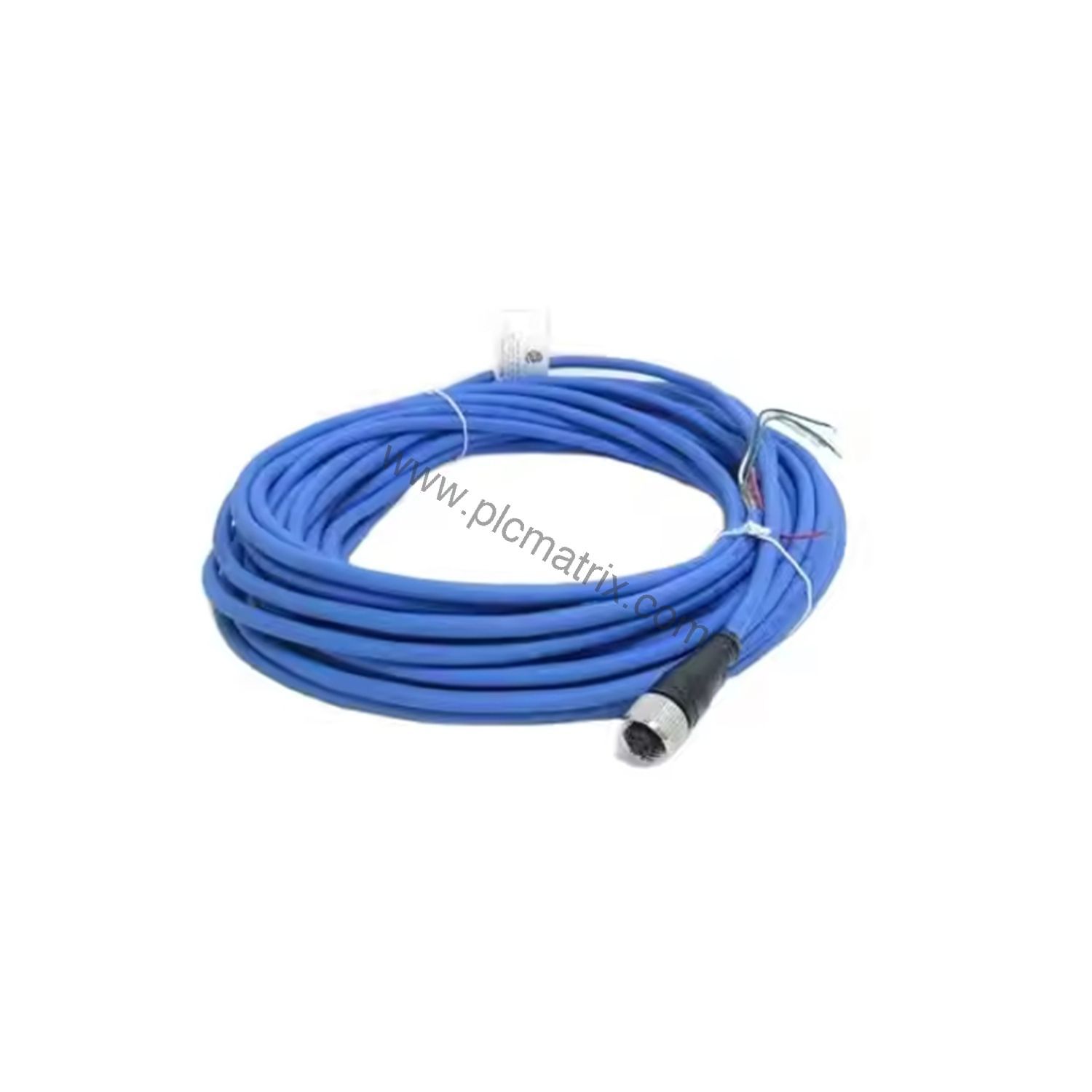

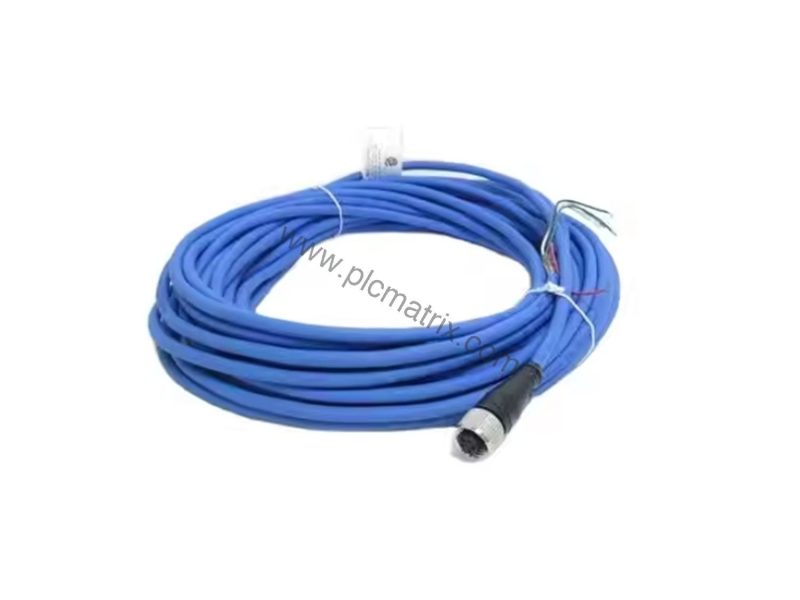

Bently Nevada 200152-25-CN Accelerometer Interface Standard Cable 25m

Product Overview

When vibration monitoring systems fail due to cable degradation, the Bently Nevada 200152-25-CN provides a robust solution. This accelerometer interface standard cable is designed for reliable signal transmission in demanding industrial environments. Part of the Bently Nevada 200151 model series, this cable features a connector on the accelerometer end only, ensuring a secure and precise connection to your sensor.

Technical Specifications

The 200152-25-CN offers a cable length of 25 meters, as indicated by the -25 suffix. The -CN suffix denotes a country-specific coupling nut. The cable construction includes 4 conductors of 22 AWG with a braided shield and drain wire providing minimum 85% coverage, and a PVC outer jacket. Nickel-plated coupling nuts ensure corrosion resistance. Connectors provide an IP67 seal to transducers and mating hardware, and are molded to the cable. The addition of DC4 electrical insulating compound in the connectors provides additional protection against moisture during thermal shock. The minimum bend radius is 73.7 mm (2.9 in). Operating temperature range is -20 ºC to +100 ºC (-4 ºF to +212 ºF). These cables may be used at lower temperatures if the installation prevents flexing or bending; flexing below -20 ºC may damage the cables.

Industry Applications

This cable is essential for machinery health monitoring in industries such as oil and gas, power generation, and manufacturing. It reliably connects accelerometers to monitoring systems, enabling early detection of bearing faults, imbalance, and misalignment. In a turbine monitoring application, the 25-meter length allows flexible routing from sensor to junction box while maintaining signal integrity.

Installation Guidance

When installing the 200152-25-CN, ensure the cable is routed away from sharp edges and excessive heat sources. Maintain the minimum bend radius of 73.7 mm to avoid internal damage. For installations in low-temperature environments where the cable may be flexed, keep the temperature above -20 ºC. Use the IP67-rated connectors to achieve a moisture-proof seal. Verify the coupling nut type matches your system's requirements.

Maintenance and Reliability

Regular inspection of the cable jacket and connectors for wear or damage is recommended. The robust PVC outer jacket and nickel-plated coupling nuts provide long service life in harsh conditions. The braided shield with drain wire effectively reduces electromagnetic interference, ensuring reliable data transmission. For extended reliability, avoid repeated flexing at low temperatures.

Selection Guide and Purchasing Advice

Before purchasing the 200152-25-CN, confirm the required cable length and connector type for your application. This model is ideal for new installations or as a replacement for existing Bently Nevada accelerometer systems. BluePLC Industrial offers this genuine Bently Nevada cable with fast shipping. Contact us for current lifecycle status and availability.
