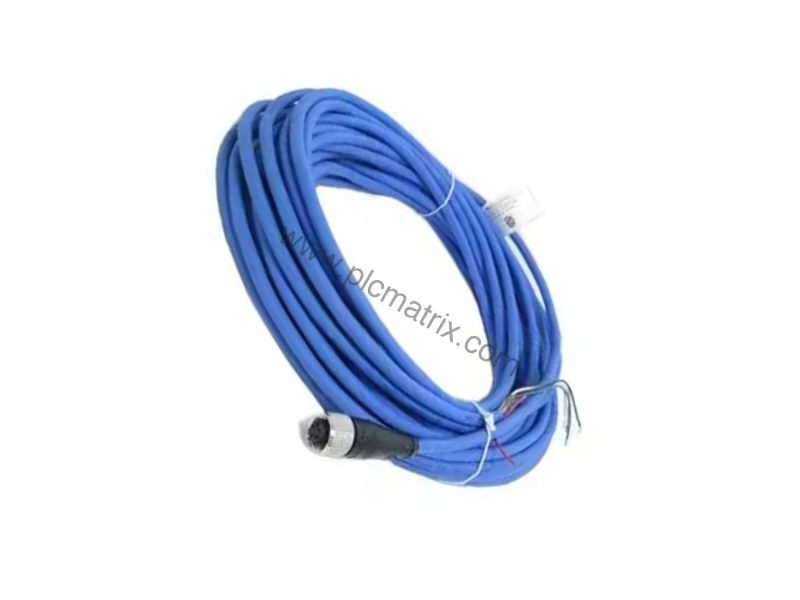

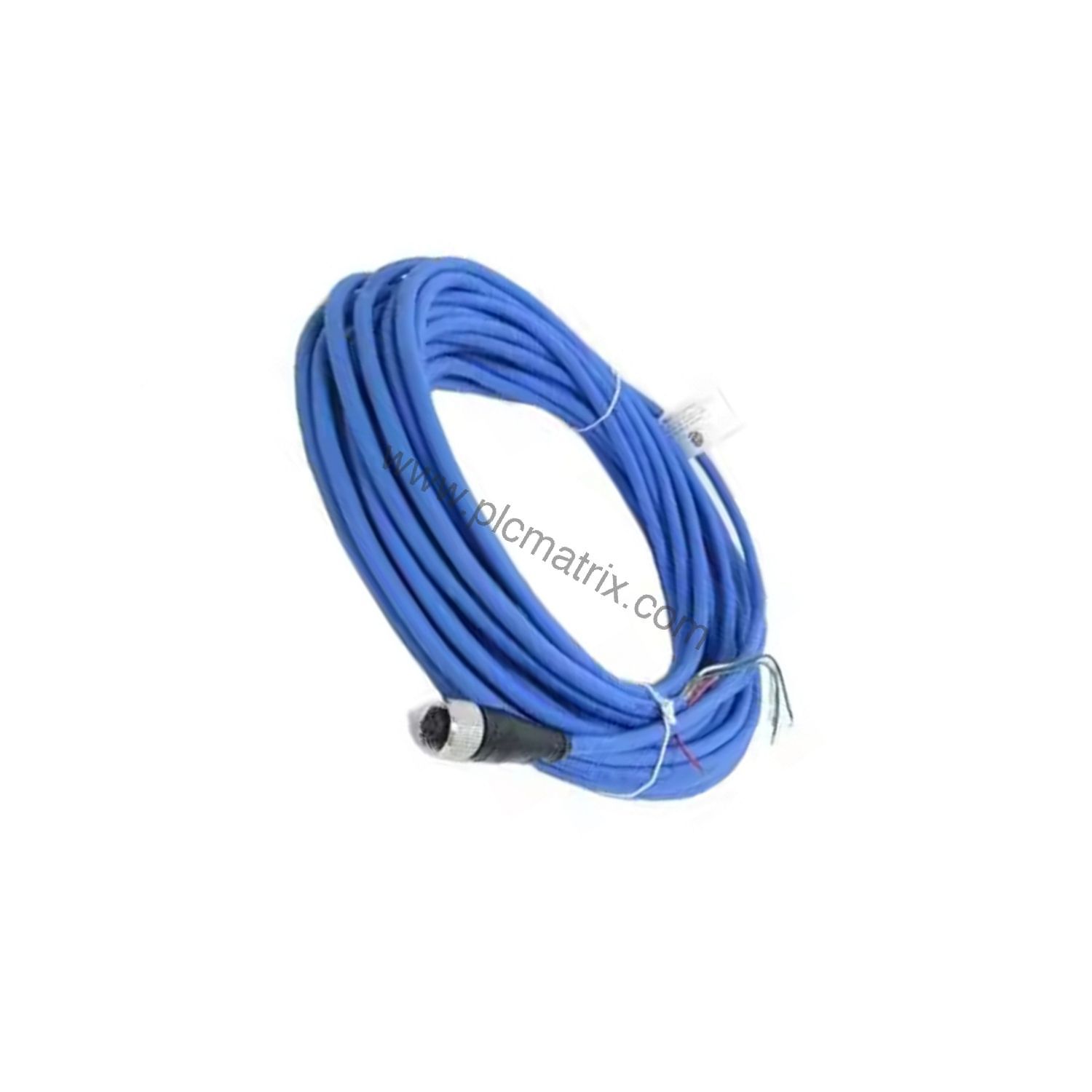

Bently Nevada 200152-25-10 Accelerometer Interface Standard Cable

Product Overview

When vibration monitoring systems fail due to cable degradation or connector issues, the Bently Nevada 200152-25-10 provides a robust solution. This accelerometer interface standard cable is engineered to maintain signal integrity in harsh industrial environments, ensuring accurate data transmission from accelerometers to monitoring equipment.

Technical Specifications

The 200152-25-10 features a cable length of 25 meters, as indicated by the -25 suffix. It includes an enhanced coupling nut (-10 option) on the accelerometer end only, providing a better grip for tightening the cable to the accelerometer. The cable construction is 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), and a PVC outer jacket. Connectors provide an IP67 seal to transducers and mating hardware, and are molded to the cable. The addition of DC4 electrical insulating compound in the connectors offers additional protection against moisture during thermal shock. The minimum bend radius is 73.7 mm (2.9 in). Operating temperature range is -20 ºC to +100 ºC (-4 ºF to +212 ºF). These cables may be used at lower temperatures if the installation prevents flexing or bending; flexing below -20 ºC may damage the cables.

Industry Applications

In rotating machinery monitoring, such as turbines, compressors, and pumps, the 200152-25-10 ensures reliable vibration data collection. Its IP67 seal makes it suitable for applications exposed to moisture or washdown environments. The enhanced coupling nut reduces the risk of loosening due to vibration, a common failure point in industrial settings.

Installation & Setup Guidance

When installing the 200152-25-10, ensure the cable is routed with a bend radius no smaller than 73.7 mm to prevent internal damage. Tighten the enhanced coupling nut securely on the accelerometer end to achieve the IP67 seal. Avoid flexing the cable at temperatures below -20 ºC. For best performance, use the DC4 insulating compound as specified to protect connectors during thermal cycling.

Maintenance & Reliability

Regularly inspect the cable for cuts, abrasions, or signs of moisture ingress at the connectors. Verify the coupling nut remains tight. The molded connector design and IP67 rating reduce maintenance needs, but periodic checks in high-vibration or wet environments are recommended. Following the temperature guidelines extends cable life and prevents premature failure.

Selection Guide & Purchasing Advice

Before purchasing the 200152-25-10, confirm your accelerometer connector type and required cable length. This model is specifically the 25-meter version with enhanced coupling nut. For other lengths or configurations, consult the Bently Nevada 200151 series. BluePLC Industrial offers this cable with fast shipping and expert support to ensure you get the right part for your vibration monitoring system.

Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
