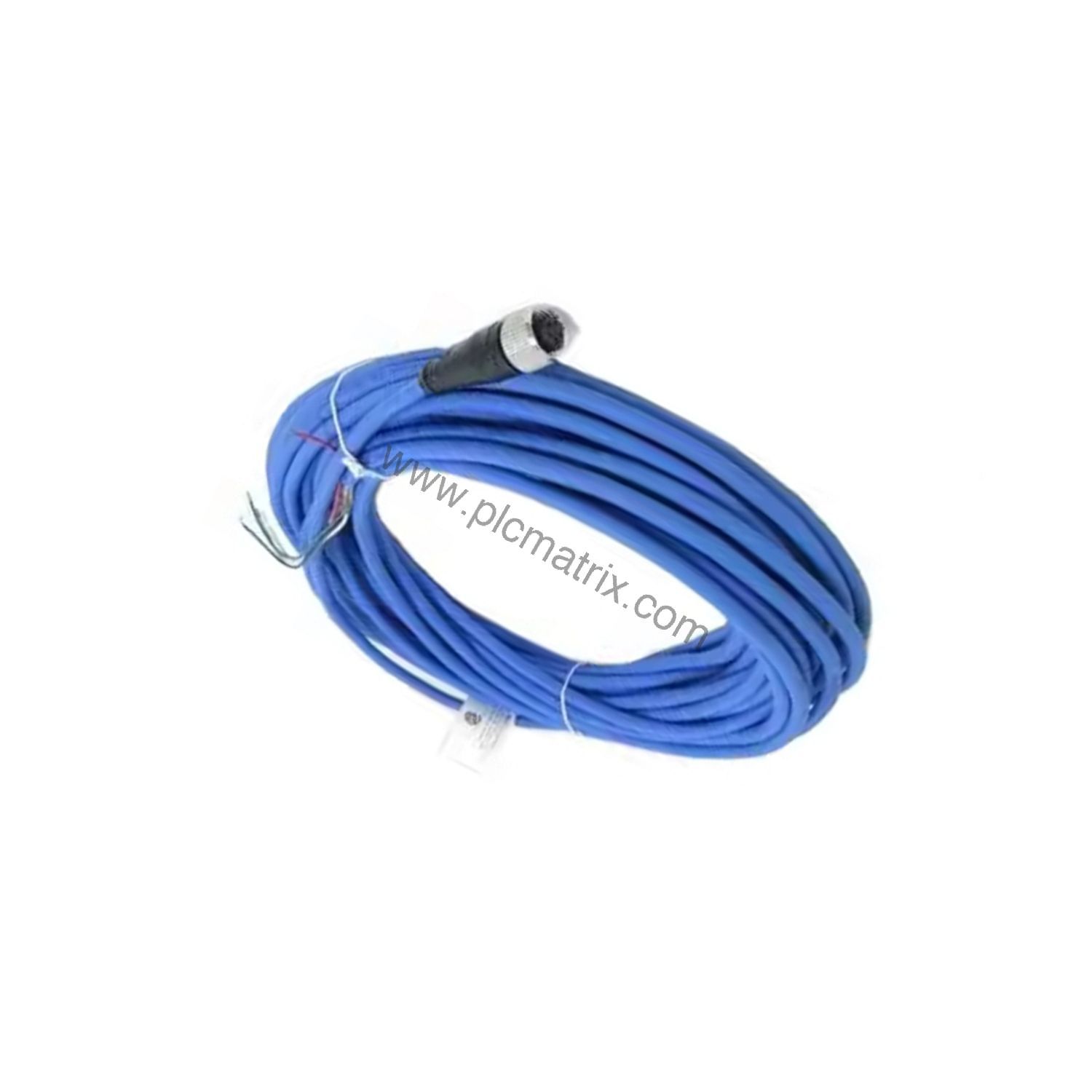

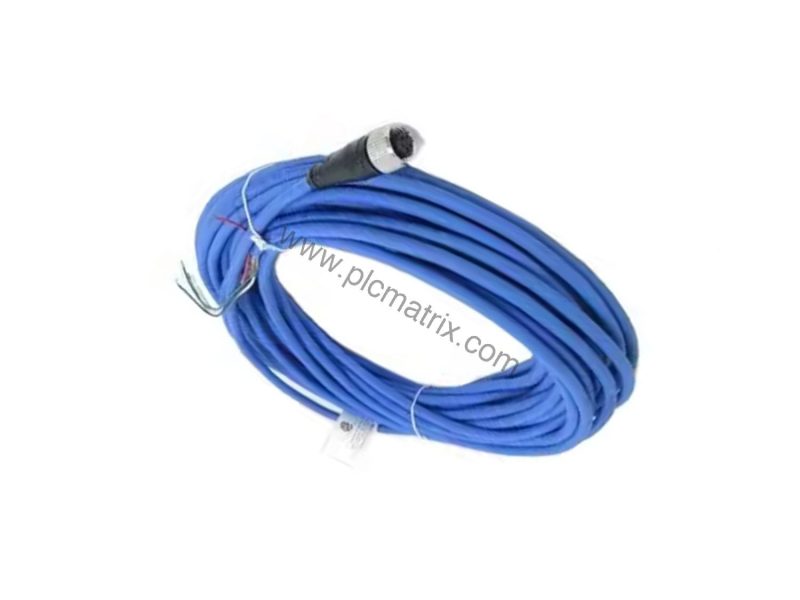

Bently Nevada 200152-25-10 Accelerometer Interface Standard Cable, 25m

Product Overview

In the evolution of industrial machinery monitoring, reliable signal transmission from sensors to control systems has become critical for predictive maintenance. The Bently Nevada 200152-25-10 Accelerometer Interface Standard Cable addresses this need with a robust design tailored for harsh environments. This 25-meter cable, featuring an enhanced coupling nut on the accelerometer end, ensures secure connections and consistent data flow in vibration monitoring applications.

Technical Specifications

The 200152-25-10 is built for durability and performance. Key specifications include:

Model: 200151 - Accelerometer Interface Standard Cable

Cable Length: 25 meters (as indicated by the -25 suffix)

Coupling Nut: Enhanced coupling nut (-10 option) provides a better grip for tightening the cable to the accelerometer, available on the accelerometer end only

Minimum Bend Radius: 73.7 mm (2.9 in)

Operating Temperature Range: -20 ºC to +100 ºC (-4 ºF to +212 ºF). Note: cables may be used at lower temperatures if installation prevents flexing; flexing below -20 ºC may damage the cable.

Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket, nickel-plated coupling nuts

Seal: Connectors provide an IP67 seal to transducers and mating hardware; connectors are molded to the cable; addition of DC4 electrical insulating compound provides additional moisture protection during thermal shock

Industry Applications

The 200152-25-10 is essential for vibration monitoring in rotating machinery such as turbines, compressors, pumps, and motors. Its 25-meter length allows flexible installation in large industrial plants, while the IP67 seal ensures reliable operation in wet or dusty environments. The enhanced coupling nut simplifies installation in tight spaces, reducing downtime during sensor replacement.

Installation & Setup Guidance

When installing the 200152-25-10, ensure the cable is routed with a bend radius no smaller than 73.7 mm to avoid internal damage. Tighten the enhanced coupling nut securely by hand, using the improved grip to achieve a proper seal. Avoid flexing the cable at temperatures below -20 ºC to prevent damage. For best results, follow the manufacturer's guidelines for cable routing and connection torque.

Maintenance & Reliability

Regular inspection of the 200152-25-10 cable and connectors is recommended to maintain signal integrity. Check for cuts, abrasions, or kinks in the PVC jacket, and verify that the coupling nut remains tight. The IP67 seal and DC4 compound provide long-term moisture protection, reducing the need for frequent replacements. For extended service life, avoid exposing the cable to temperatures above +100 ºC or below -20 ºC during operation.

Selection Guide & Purchasing Advice

Before purchasing the 200152-25-10, verify that your accelerometer requires a standard interface cable with a 4-conductor, 22 AWG configuration. Confirm that the 25-meter length suits your installation distance. For applications needing a longer or shorter cable, consider other options in the 200151 model series. BluePLC Industrial offers genuine Bently Nevada cables with full traceability, ensuring compatibility and reliability for your vibration monitoring system.

For complete technical specifications for the 200152-25-10, please contact BluePLC Industrial.
