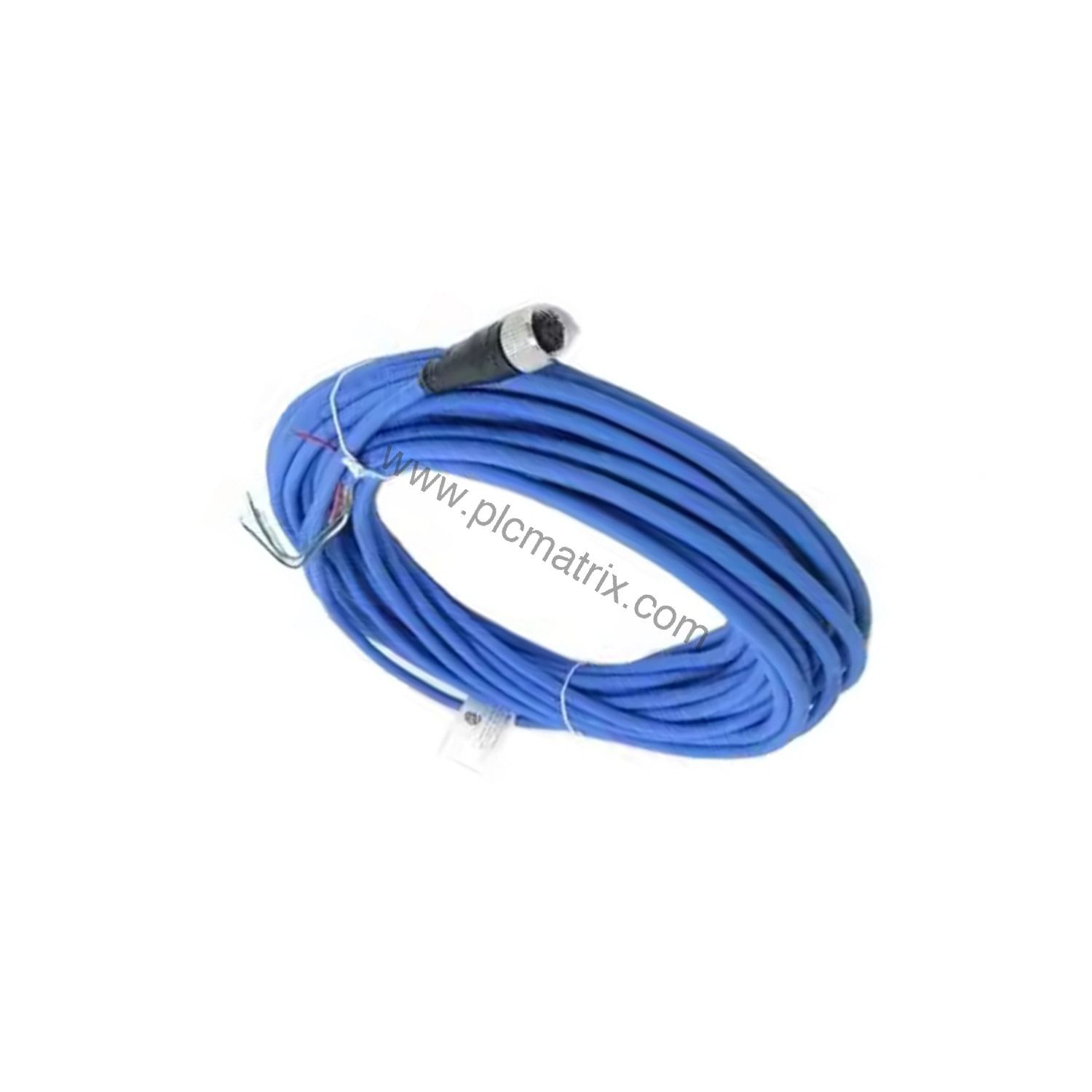

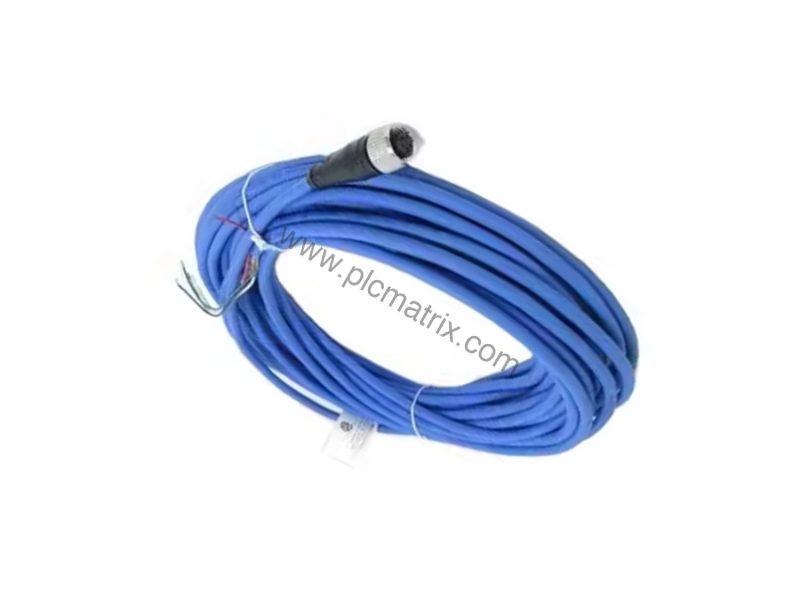

Bently Nevada 200152-04-00 Accelerometer Interface Standard Cable – 4.0m

Product Introduction

When vibration monitoring systems fail due to cable degradation, the cost of unplanned downtime can quickly exceed the price of a reliable replacement. The Bently Nevada 200152-04-00 Accelerometer Interface Standard Cable delivers a robust connection for critical rotating machinery, ensuring accurate data transmission from sensor to monitoring system. This 4.0-meter cable features a connector on the accelerometer end only, simplifying installation and reducing potential failure points. As part of the Bently Nevada 200151 model family, it is engineered for harsh industrial environments where signal integrity is non-negotiable.

Technical Specifications Breakdown

The 200152-04-00 is built around a 4-conductor, 22 AWG construction with a braided shield and drain wire (85% coverage, minimum) and a PVC outer jacket. This shielding minimizes electrical noise interference, directly reducing false alarms and maintenance costs. The cable length of 4.0 meters provides flexibility for mounting sensors at a practical distance from machinery without signal loss. Nickel-plated coupling nuts resist corrosion, extending service life in humid or chemically aggressive settings. The connectors achieve an IP67 seal when mated to transducers and hardware, preventing moisture ingress that could cause intermittent faults and costly troubleshooting. A minimum bend radius of 73.7 mm (2.9 in) protects the internal conductors during routing, avoiding premature failure from sharp bends.

Industry Applications

In petrochemical plants, the 200152-04-00 connects accelerometers on pumps and compressors to vibration monitoring systems, enabling early detection of bearing wear or imbalance. A single unplanned outage in a refinery can cost hundreds of thousands of dollars per day; this cable’s robust shielding and IP67 seal help maintain uptime by ensuring reliable signal transmission. In power generation, turbine vibration monitoring demands consistent performance across wide temperature swings. The cable operates from -20 °C to +100 °C (-4 °F to +212 °F), allowing deployment in both cold start-up environments and near hot turbine casings. By using a cable with proven reliability, maintenance teams reduce the frequency of sensor-related false trips, directly improving plant efficiency and reducing operational costs.

Installation & Setup Guidance

When installing the 200152-04-00, ensure the cable is routed with a bend radius greater than 73.7 mm to avoid internal damage. Secure the cable along its path using appropriate clamps to prevent vibration-induced wear. The connector on the accelerometer end should be hand-tightened firmly; do not use tools that could over-torque and damage the coupling nut. For installations where the cable may be exposed to temperatures below -20 °C, avoid flexing until the cable is warmed to ambient conditions to prevent jacket cracking. Always verify that the mating connector on the transducer is clean and dry before connection to maintain the IP67 seal. These simple steps extend cable life and reduce replacement frequency, delivering long-term cost savings.

Maintenance & Reliability

Routine inspection of the 200152-04-00 should focus on the connector area and cable jacket for signs of cracking, abrasion, or moisture ingress. In high-vibration applications, check that the cable is not rubbing against sharp edges or machine surfaces. The nickel-plated coupling nuts resist corrosion, but periodic cleaning with a dry cloth is recommended to remove conductive debris. Because this cable is not a safety-rated component, general maintenance practices apply: replace any cable showing physical damage immediately to avoid signal degradation. Investing in a high-quality interface cable like the 200152-04-00 reduces the total cost of ownership by minimizing unplanned replacements and diagnostic time.

Selection Guide & Purchasing Advice

Before ordering the 200152-04-00, confirm that your accelerometer requires a connector on the sensor end only and that a 4.0-meter length suits your installation distance. The standard coupling nut (-00 option) is compatible with most Bently Nevada transducers. If your application demands a different length or coupling nut variant, consult the ordering information for alternative configurations. BluePLC Industrial stocks the 200152-04-00 and can advise on compatibility with your existing Bently Nevada monitoring system. For complete technical specifications, please contact BluePLC Industrial. Verify current lifecycle status and availability before ordering to ensure seamless integration into your maintenance spares program.
