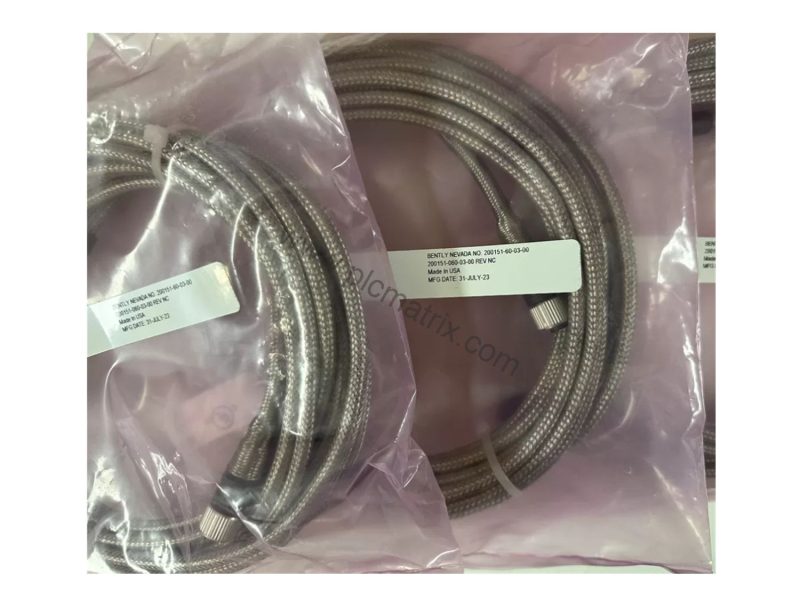

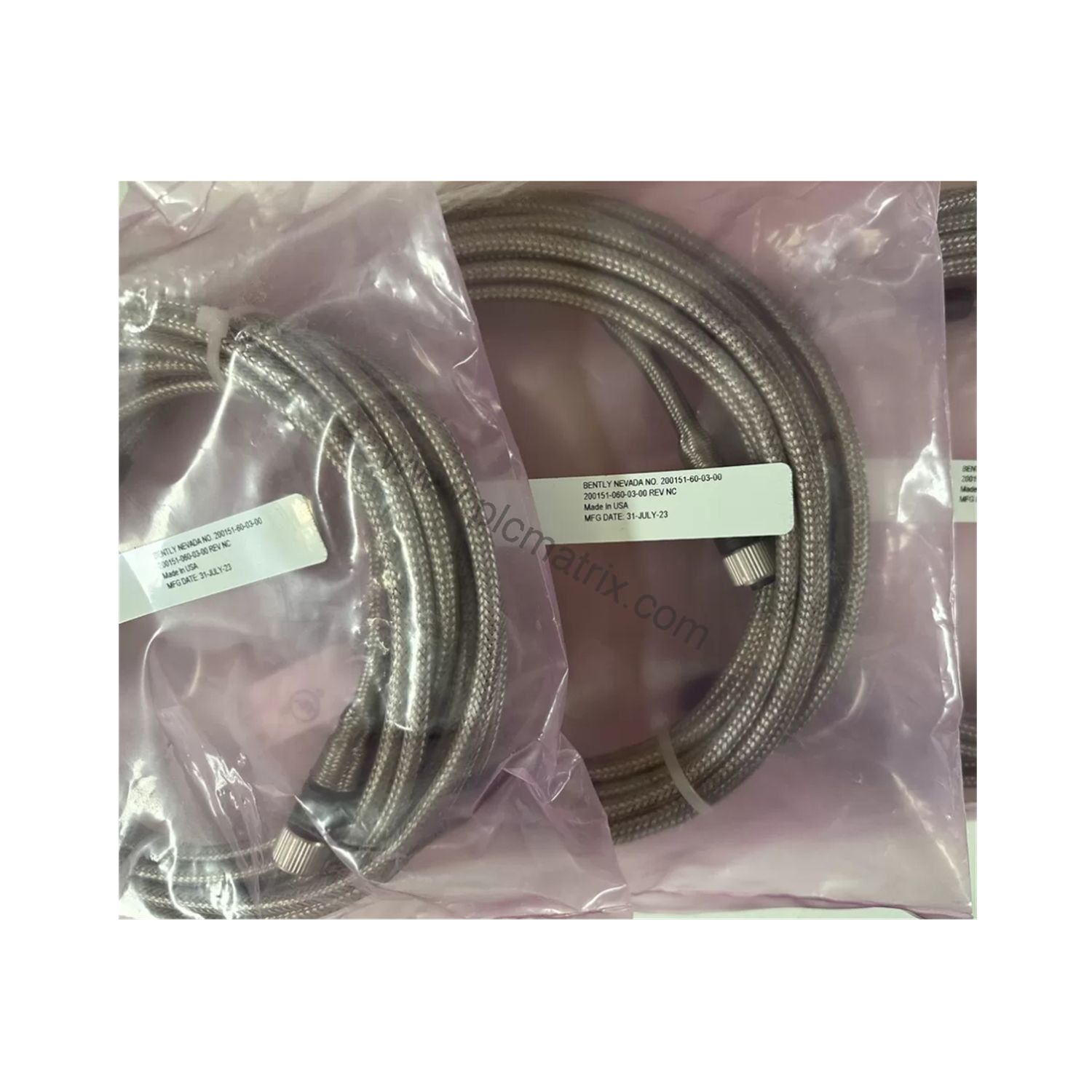

Bently Nevada 200151-60-02-00 Accelerometer Standard Cable 6.0m

Reliable Vibration Monitoring Starts with the Right Cable

When vibration data is compromised by cable failure, machine health assessments become unreliable. The Bently Nevada 200151-60-02-00 accelerometer standard cable eliminates this weak link. Designed as a 4-conductor, 22 AWG cable with braided shield and drain wire (85% coverage, minimum), it preserves signal integrity even in electrically noisy environments. The PVC outer jacket and nickel-plated coupling nuts provide robust physical protection, while the IP67-rated seal at each connector locks out moisture and contaminants. This cable is built for the demanding conditions found in rotating machinery monitoring, from steam turbines to centrifugal compressors.

Technical Specifications Breakdown

Model and Configuration: The 200151-60-02-00 is part of the 200151 series of accelerometer interface standard cables. The "-60" suffix indicates a cable length of 6.0 meters, providing flexibility for routing from the accelerometer to the monitoring system without excess slack. The "02" armor option specifies a blue cable without armor, suitable for installations where physical abrasion is minimal but environmental sealing remains critical. The "00" coupling nut option is the standard configuration, ensuring compatibility with Bently Nevada transducers and mating hardware.

Construction and Shielding: The 4-conductor, 22 AWG design with braided shield and drain wire (85% coverage, minimum) minimizes electromagnetic interference (EMI) pickup, preserving the accelerometer's dynamic signal. The PVC outer jacket offers good resistance to oils, chemicals, and mechanical wear in typical industrial settings.

Environmental Sealing: Connectors provide an IP67 seal to transducers and mating hardware, meaning the cable assembly is dust-tight and protected against temporary immersion in water. The connectors are molded to the cable, eliminating potential leak paths. Additionally, the use of DC4 electrical insulating compound inside the connectors offers extra protection against moisture ingress during thermal shock events, which is common in machinery that cycles between ambient and operating temperatures.

Temperature Range and Bend Radius: The cable is rated for an operating temperature range of -20 ºC to +100 ºC (-4 ºF to +212 ºF). For installations where the cable must flex, the minimum bend radius is 63.5 mm (2.5 in). At temperatures below –20 ºC (-4 ºF), flexing the cable may cause damage, so installations in cold environments should avoid movement of the cable.

Industry Applications: Solving Real Vibration Monitoring Challenges

Challenge: Signal Degradation in Harsh Environments

In petrochemical plants, accelerometers near pumps and compressors are exposed to vibration, heat, and chemical vapors. Standard cables often fail, causing false alarms or missed faults. The 200151-60-02-00's braided shield and IP67 seal maintain signal quality and connector integrity, reducing unplanned downtime.

Challenge: Moisture Ingress During Thermal Cycling

Steam turbines undergo significant temperature swings during startup and shutdown. Condensation inside connectors can cause intermittent signal loss. The DC4 insulating compound in the 200151-60-02-00 connectors provides an extra barrier against moisture, ensuring reliable data during critical transient conditions.

Challenge: Cable Routing Constraints

The 6.0-meter length of the 200151-60-02-00 is ideal for connecting accelerometers mounted on machinery to junction boxes or monitoring cabinets without requiring a splice or extension. This simplifies installation and reduces potential failure points.

Installation and Setup Guidance

Before installation, verify that the cable length (6.0 meters) is sufficient for the routing path from the accelerometer to the monitoring system. Avoid sharp bends; the minimum bend radius of 63.5 mm (2.5 in) must be respected to prevent internal conductor damage. When securing the cable, use appropriate cable ties or clamps that do not compress the jacket. Ensure the mating connectors on the transducer and junction box are clean and dry before connection. Tighten the coupling nuts by hand until snug—do not use tools that could over-torque and damage the seal. For installations in environments where the cable may be exposed to temperatures below –20 ºC (-4 ºF), ensure the cable is not flexed or moved after installation to avoid damage.

Maintenance and Reliability

Periodic inspection of the cable assembly is recommended as part of routine machine train maintenance. Check the connectors for signs of corrosion, cracking, or moisture ingress. Verify that the coupling nuts remain tight. Inspect the cable jacket for cuts, abrasions, or chemical attack. If the cable is routed through areas with high vibration, ensure it is properly supported to prevent fatigue at the connector junctions. The IP67 seal is effective only when the connectors are properly mated and undamaged. Replace the cable if any damage is found to maintain monitoring system reliability.

Selection Guide and Purchasing Advice

When selecting the 200151-60-02-00, confirm that the cable length (6.0 meters) and connector type match your accelerometer and monitoring system requirements. This cable is designed for use with Bently Nevada accelerometers that accept the standard interface connector. If your installation requires armor protection against physical damage, consider the armored variant of the 200151 series. For applications in extreme cold where the cable may need to flex, consult Bently Nevada for alternative cable options. BluePLC Industrial stocks the 200151-60-02-00 and can provide current availability and lifecycle status. Contact our team to verify compatibility with your existing Bently Nevada hardware and to discuss any special requirements.

For complete technical specifications for the 200151-60-02-00, please contact BluePLC Industrial.
