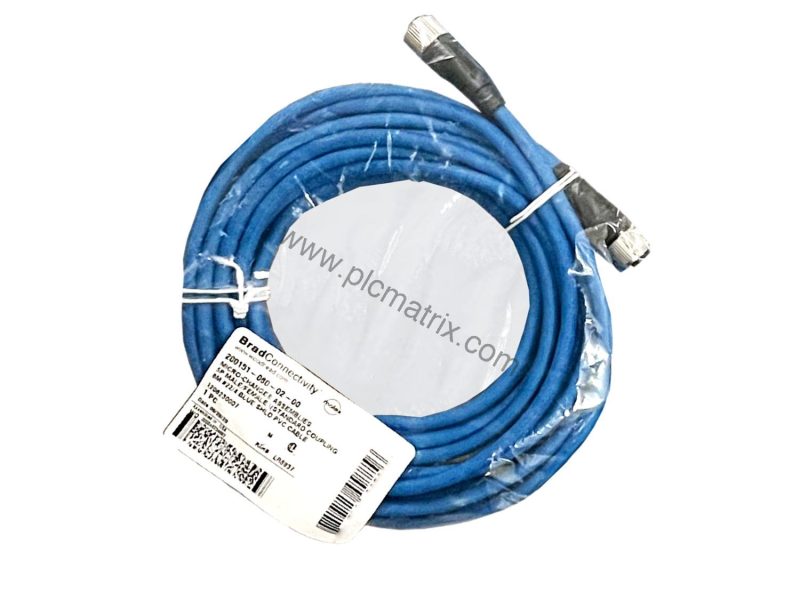

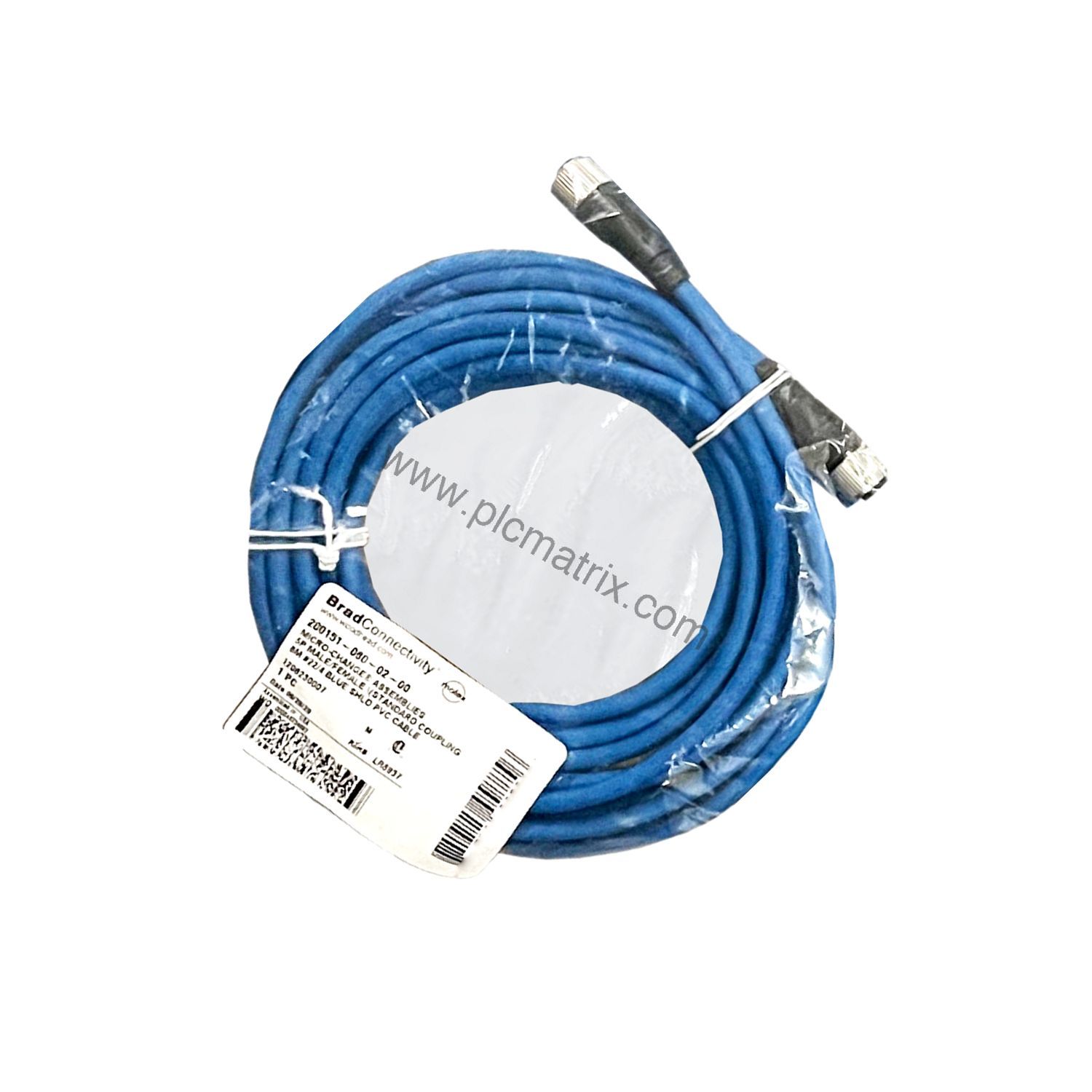

Bently Nevada 200151-40-02-02 Accelerometer Standard Cable, 4.0 Meters

What Is the Bently Nevada 200151-40-02-02?

When harsh industrial environments threaten sensor signal integrity, the Bently Nevada 200151-40-02-02 accelerometer standard cable provides a reliable connection. This cable is part of the 200151 model family, designed as an accelerometer interface standard cable with connectors on both ends. It ensures accurate vibration data transmission from transducers to monitoring systems, making it a critical component for predictive maintenance programs.

Technical Specifications Breakdown

Model: 200151 – Accelerometer Interface Standard Cable, Connectors on Both Ends

Cable length: 4.0 meters (specified by -40 option)

Armor option: -02 = Blue cable without armor

Coupling nut: 02 = Nylon coupling nut

Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket, nickel-plated coupling nuts

Seal: Connectors provide an IP67 seal to transducers and mating hardware. Connectors are molded to the cable. The addition of DC4 electrical insulating compound in the connectors provides additional protection against moisture during thermal shock.

Minimum bend radius: 63.5 mm (2.5 in)

Operating temperature range: -20 ºC to +100 ºC (-4 ºF to +212 ºF). These cables may be used at lower temperatures if the installation prevents the cable from flexing or bending. Flexing these cables at temperatures below –20 ºC (-4 ºF) may damage the cables.

Industry Applications

In rotating machinery monitoring, the 200151-40-02-02 connects accelerometers to data acquisition systems in applications such as turbines, compressors, pumps, and fans. Its IP67 sealing makes it suitable for wet or dusty environments, while the 4.0-meter length offers flexibility in mounting sensor locations. The blue cable without armor is ideal for indoor or protected installations where physical abrasion is minimal.

Installation & Setup Guidance

When installing the 200151-40-02-02, ensure the cable bend radius does not exceed 63.5 mm (2.5 in) to prevent internal conductor damage. The IP67 seal is achieved when connectors are fully tightened to compatible transducers and mating hardware. Avoid flexing the cable at temperatures below -20 ºC (-4 ºF) to prevent cracking of the PVC jacket. For best performance, route the cable away from high-EMI sources and secure it with cable ties at regular intervals.

Maintenance & Reliability

Routine inspection of the cable jacket and connectors is recommended to detect cuts, abrasion, or moisture ingress. The molded connector design and DC4 compound provide long-term reliability in thermal cycling conditions. If the cable is used in environments with chemical exposure, verify compatibility of the PVC jacket with the specific chemicals present. Replace the cable if the shield or conductors are exposed.

Selection Guide & Purchasing Advice

Before ordering the 200151-40-02-02, confirm that your monitoring system requires a 4.0-meter cable with connectors on both ends and a nylon coupling nut. This variant is the blue cable without armor. For applications needing armored protection, consider other options in the 200151 family. BluePLC Industrial offers this cable with fast shipping and expert support to ensure you select the correct part for your vibration monitoring setup.

For complete technical specifications for the 200151-40-02-02, please contact BluePLC Industrial.
