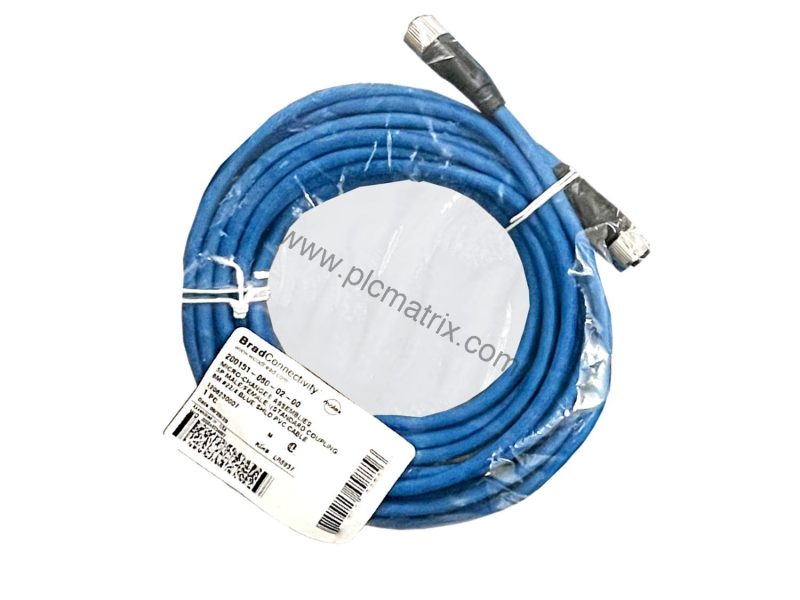

Bently Nevada 200151-40-02-02 Accelerometer Cable 4.0m Nylon Coupling Nut

Product Introduction

In the demanding world of industrial vibration monitoring, the integrity of the signal path is as critical as the sensor itself. The Bently Nevada 200151-40-02-02 accelerometer interface cable represents a key link in that chain, designed to deliver reliable performance in harsh environments. As part of the 200151 series, this cable is engineered for direct connection between accelerometers and monitoring systems, ensuring data fidelity from sensor to acquisition unit.

Technical Specifications Breakdown

The 200151-40-02-02 is a 4-conductor, 22 AWG cable with braided shield and drain wire (85% coverage, minimum) and a PVC outer jacket. The cable length is 4.0 meters, indicated by the -40 suffix in the ordering code. The armor option -02 specifies a blue cable without armor, and the coupling nut is 02, which is a nylon coupling nut. The connectors provide an IP67 seal to transducers and mating hardware, with connectors molded to the cable. The addition of DC4 electrical insulating compound in the connectors offers extra protection against moisture during thermal shock. The minimum bend radius is 63.5 mm (2.5 inches). The operating temperature range is -20 °C to +100 °C (-4 °F to +212 °F); these cables may be used at lower temperatures if the installation prevents flexing or bending, as flexing below -20 °C may damage the cables.

Industry Applications

This cable is ideal for use in rotating machinery monitoring, such as turbines, compressors, and pumps, where accurate vibration data is essential for predictive maintenance. In oil and gas facilities, the IP67-rated connectors resist moisture ingress, ensuring reliable operation in outdoor or washdown areas. The 4.0-meter length provides flexibility for routing in tight equipment compartments while maintaining signal integrity.

Installation & Setup Guidance

When installing the 200151-40-02-02, ensure the cable is routed with a bend radius no less than 63.5 mm to avoid damaging the internal conductors. The nylon coupling nut should be hand-tightened to the mating connector; do not use tools that could over-torque and crack the nut. For installations where the cable may be exposed to temperatures below -20 °C, secure the cable to prevent flexing, as movement at low temperatures can cause damage. The IP67 seal is effective only when the connector is fully engaged and the mating surface is clean.

Maintenance & Reliability

Periodically inspect the cable jacket for cuts, abrasions, or chemical exposure that could compromise the shield or conductors. Check the coupling nut for signs of cracking or wear, especially in high-vibration environments. The molded connectors are designed for long service life, but verify the seal integrity after any thermal cycling event. For maximum reliability, avoid repeated flexing near the connector ends, as this can stress the cable-to-connector interface.

Selection Guide & Purchasing Advice

Before ordering the Bently Nevada 200151-40-02-02, confirm that your accelerometer and monitoring system use the same connector type and pinout. The 4.0-meter length suits many standard installations; if a different length is needed, other options in the 200151 series are available. For applications requiring armor protection, consider the -01 or other armor options. BluePLC Industrial stocks this cable and can advise on compatibility with your existing Bently Nevada hardware. For complete technical specifications, please contact BluePLC Industrial.
