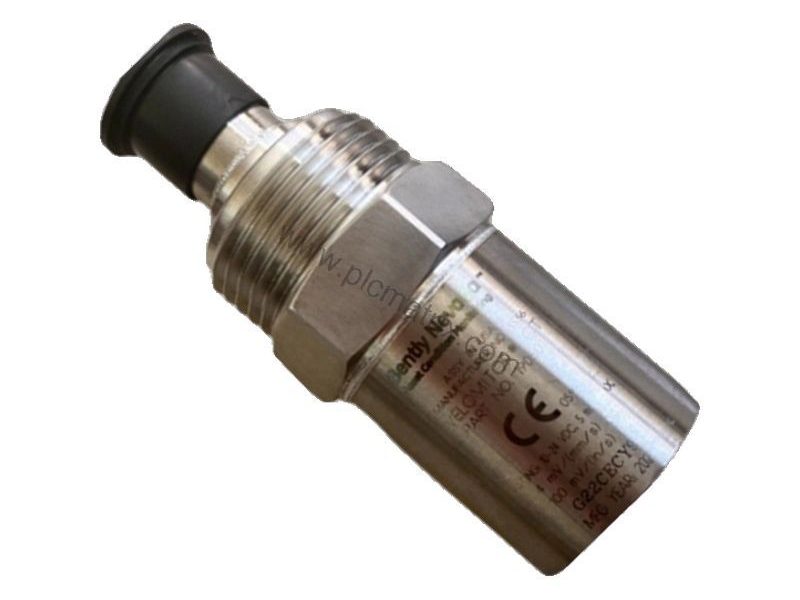

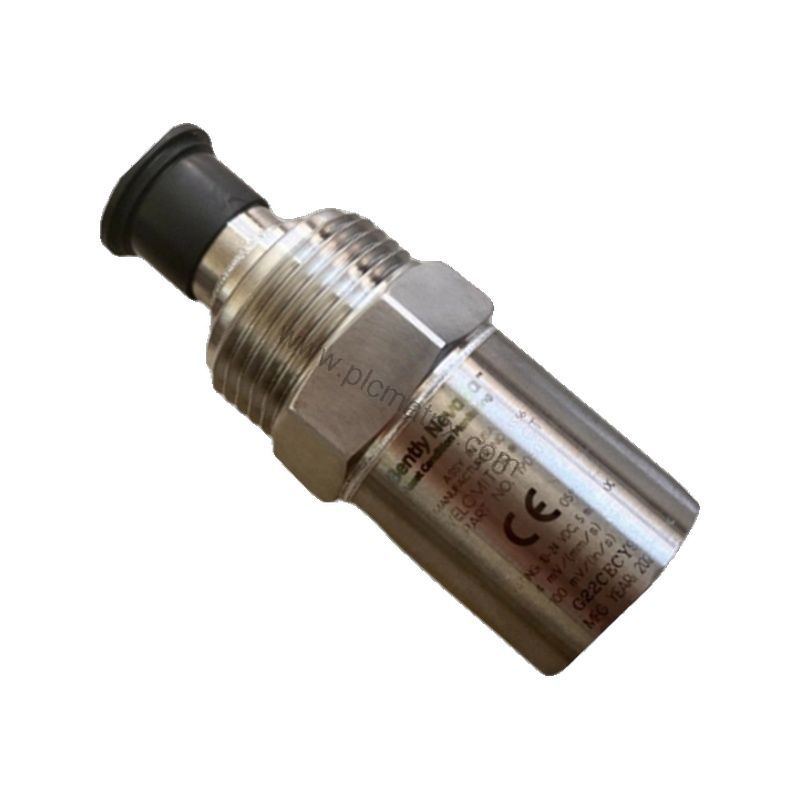

Bently Nevada 190501-08-99-04 Velomitor CT Velocity Transducer Overview

Solving Vibration Monitoring Challenges in Harsh Environments

When unplanned downtime due to machinery vibration threatens production targets, the Bently Nevada 190501-08-99-04 Velomitor CT Velocity Transducer provides a trusted solution. Designed for continuous monitoring of rotating equipment, this transducer delivers precise velocity measurements even in hazardous locations. Its robust construction and intrinsic safety certifications make it a go-to choice for engineers seeking reliable data in demanding industrial settings.

Product Introduction

The 190501-08-99-04 is a Velomitor CT Velocity Transducer from Bently Nevada, a leader in machinery protection. Manufactured in the U.S.A., this model includes a plate stud mounting option (3/8-in 24 to 1/2-in 20) and a 32-foot cable for easy installation. With agency approval option 04, it meets CSA/NRTL/C (Class I, Division 1) and ATEX/IECEx/CSA (Class I, Zone 0/1) standards, ensuring safe operation in explosive atmospheres.

Technical Specifications Breakdown

Key performance parameters include a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%, allowing accurate velocity measurement. The frequency response spans 3.0 Hz to 900 Hz (180 to 54,000 cpm) within ±1.0 dB, extending to 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) within ±3.0 dB. Amplitude linearity holds within ±2% to 63.5 mm/s pk (2.5 in/s pk), while the mounted resonant frequency is 9 kHz minimum (stud mounted, except quick disconnect). The output bias voltage is 10.1 Vdc ± 1.0 Vdc (Pin A referenced to Pin B), and dynamic output impedance is less than 400 Ω typical. Broadband noise is 0.229 mm/s (0.009 in/s) pk, and base strain sensitivity is 0.43 mm/s/μstrain (0.017 in/s/μstrain). The internal electronics are isolated from the case, and maximum cable length is 305 metres (1,000 ft.) with no signal degradation.

Industry Applications

This transducer excels in monitoring critical rotating machinery such as turbines, compressors, and pumps in oil and gas, petrochemical, and power generation facilities. For example, in a refinery where explosive gases are present, the ATEX/IECEx/CSA (Class I, Zone 0/1) certification allows safe installation directly in hazardous areas. The wide frequency response captures both low-speed and high-speed vibration, enabling early detection of bearing faults or imbalance. By providing accurate velocity data, the 190501-08-99-04 helps maintenance teams schedule repairs before catastrophic failure occurs, reducing unplanned downtime and repair costs.

Installation & Setup Guidance

Mount the transducer on a clean, flat surface with a 33 mm diameter (1.3 in diameter) area. Apply a mounting torque of 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf) to ensure proper coupling. Any orientation is acceptable, but ensure the mounting surface is free of debris. The included 32-foot cable simplifies wiring; connect Pin A and Pin B per the polarity note: Pin A goes positive with respect to Pin B when velocity is from base to top. For hazardous area installations, follow drawing 167536 and observe temperature limits: T4 @ -40°C ≤ Ta ≤ +100°C (-40°F ≤ Ta ≤ +212°F).

Maintenance & Reliability

Routine inspection of the cable and connector is recommended to prevent signal degradation. The 316L stainless steel case resists corrosion in harsh environments, and the humidity limit of 100% condensing (non-submerged) ensures reliable operation in wet conditions. With a shock limit of 5000 g pk maximum, the transducer withstands severe impacts. Periodic verification of output bias voltage (10.1 Vdc ± 1.0 Vdc) can confirm proper functioning. For long-term reliability, store the unit between -40°C to +100°C (-40°F to +212°F) when not in use.

Selection Guide & Purchasing Advice

Before ordering the 190501-08-99-04, verify that your application requires a Velomitor CT Velocity Transducer with the specified mounting hardware (plate stud 3/8-in 24 to 1/2-in 20) and 32-foot cable. Confirm that the agency approval option 04 matches your hazardous area classification (CSA/NRTL/C Class I, Division 1 or ATEX/IECEx/CSA Class I, Zone 0/1). BluePLC Industrial offers this model with full traceability and fast shipping. Contact our team to confirm availability and compatibility with your existing monitoring system.
