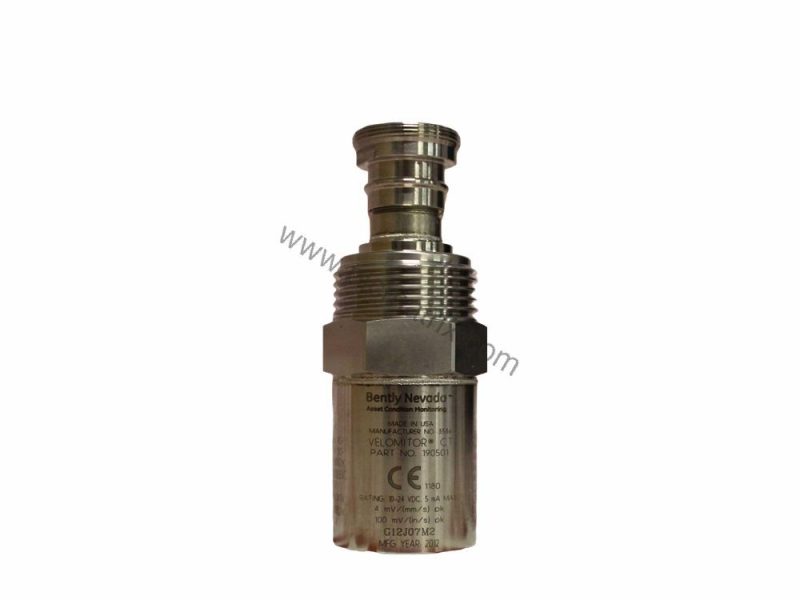

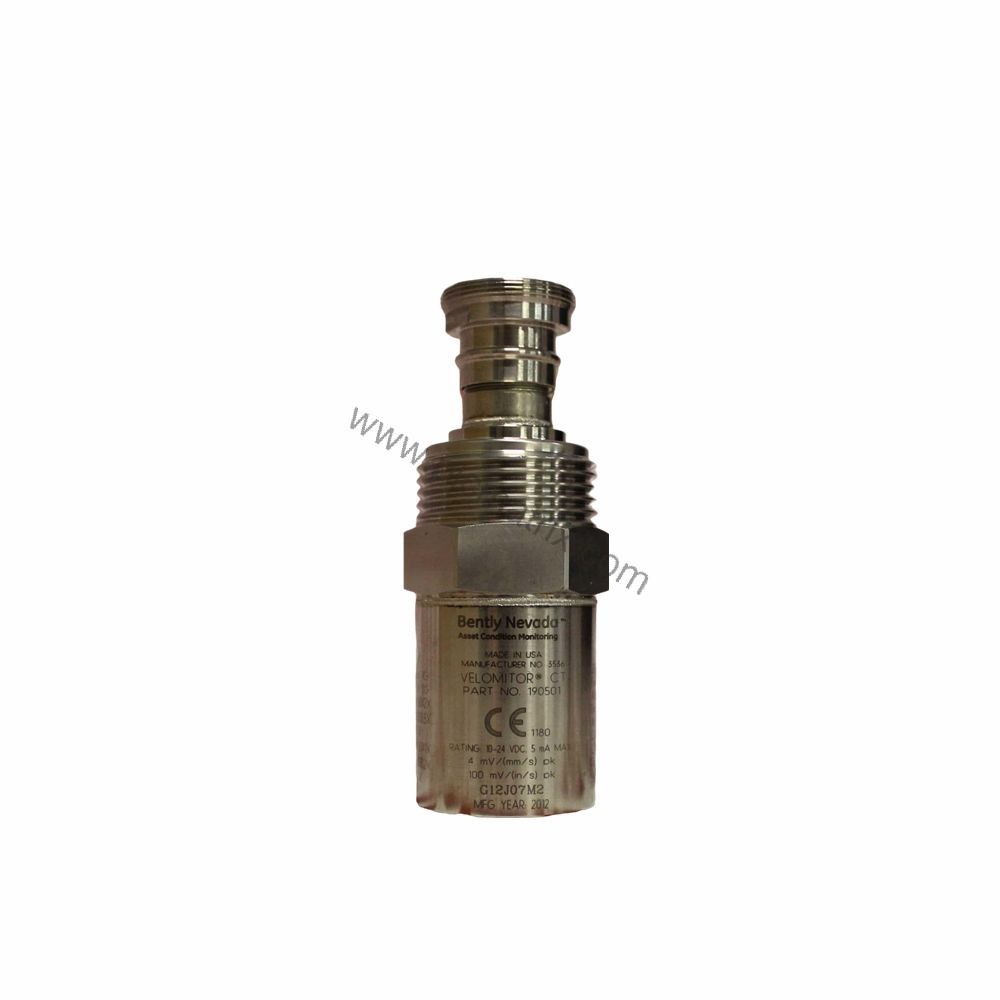

Bently Nevada 190501-07-00-04 Velomitor CT Velocity Transducer Overview

Product Introduction

When machinery vibration threatens operational uptime, the Bently Nevada 190501-07-00-04 Velomitor CT Velocity Transducer delivers reliable, continuous monitoring. Designed for harsh industrial environments, this velocity transducer converts mechanical motion into an electrical signal proportional to velocity, enabling early detection of bearing wear, imbalance, and misalignment. Part of the trusted Velomitor CT series, the 190501-07-00-04 is built for demanding applications where accuracy and durability are non-negotiable.

Technical Specifications Breakdown

The 190501-07-00-04 offers a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%, ensuring precise velocity readings. Its frequency response spans 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB, with an extended range of 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB. The output bias voltage is 10.1 Vdc ± 1.0 Vdc, referenced Pin A to Pin B. With a dynamic output impedance of less than 400 Ω typical, the transducer maintains signal integrity over long cable runs up to 305 metres (1,000 ft.) using part number 02173006. Amplitude linearity is ±2% to 63.5 mm/s pk (2.5 in/s pk), and the mounted resonant frequency is 9 kHz minimum (stud mounted, except quick disconnect).

Industry Applications

This velocity transducer excels in rotating machinery monitoring for industries such as oil and gas, power generation, and petrochemical processing. For example, in a turbine train, the 190501-07-00-04 detects early-stage bearing faults by capturing vibration velocity across a broad frequency range. Its rugged 316L stainless steel case and intrinsic safety approvals (Ex ia IIC T4, AEx ia IIC T4) make it suitable for hazardous areas classified as Class I, Division 1, Groups A, B, C, D. The transducer's transverse response is less than 5% of axial sensitivity, minimizing cross-axis errors in complex machine trains.

Installation & Setup Guidance

Mounting the 190501-07-00-04 is straightforward with the included plate stud option (3/8-in 24 to 3/8-in 24). Use the MIL-C-5015 connection interface for reliable electrical connectivity. Apply a mounting torque of 4.5 N-m ± 0.6 N-m (40 in–lbf ± 5 in-lbf) to ensure proper mechanical coupling. The transducer can be mounted in any orientation, simplifying placement on horizontal or vertical machine surfaces. For intrinsic safety installations, follow drawing 167536 to maintain the T4 temperature classification (-40°C ≤ Ta ≤ +100°C).

Maintenance & Reliability

Routine inspection of the 190501-07-00-04 involves verifying cable integrity and connector cleanliness. The internal electronics are isolated from the case, reducing ground loop issues. With a shock limit of 5000 g pk maximum and 100% condensing humidity tolerance, this transducer withstands severe industrial conditions. Base strain sensitivity is only 0.43 mm/s/μstrain, ensuring vibration readings remain unaffected by structural loading. Periodic calibration checks against the ±5% sensitivity tolerance help maintain measurement accuracy over the transducer's service life.

Selection Guide & Purchasing Advice

Before ordering the 190501-07-00-04, verify the agency approval option matches your site's hazardous area classification. This unit carries CSA/NRTL/C (Class I, Division 1) and ATEX/IECEx/CSA (Class I, Zone 0/1) approvals. The transducer weighs 0.297 kg and has a height of 82 mm (3.2 in) with a 33 mm diameter mounting surface. For complete technical specifications, contact BluePLC Industrial. Our team can confirm availability and recommend compatible cables (part number 02173006) and mounting hardware to streamline your installation.
