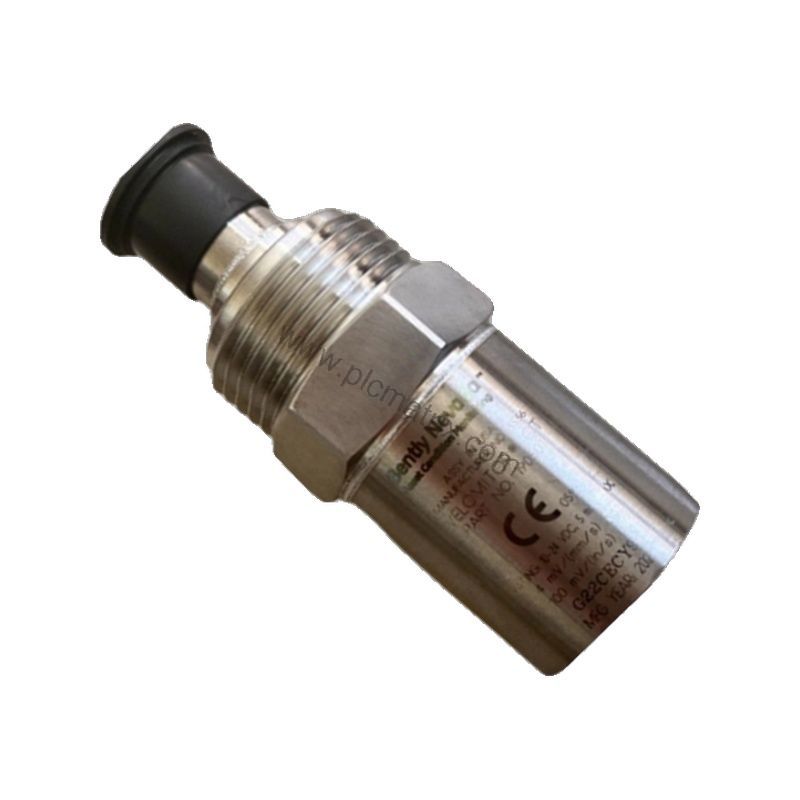

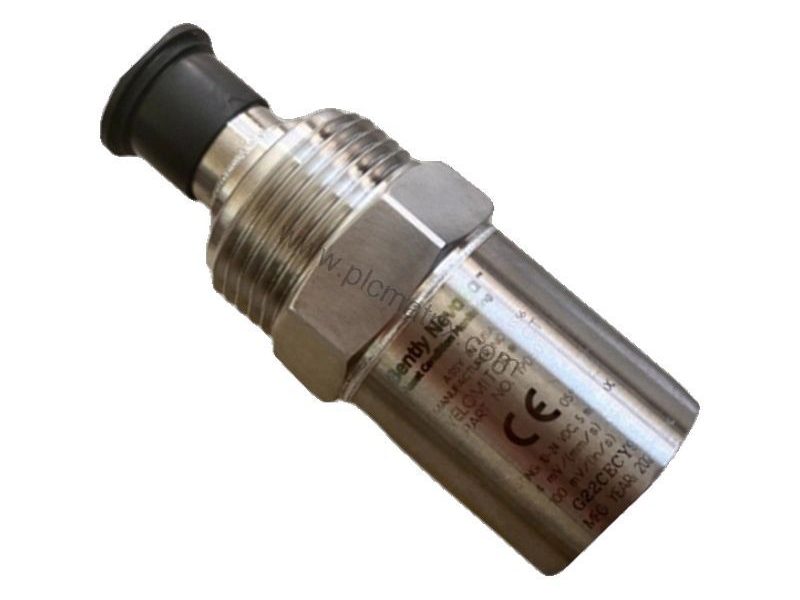

Bently Nevada 190501-07-00-04 Velomitor CT Velocity Transducer Overview

Introduction

As industrial machinery evolves toward higher speeds and tighter tolerances, the need for precise vibration monitoring has never been greater. The Bently Nevada 190501-07-00-04 Velomitor CT Velocity Transducer addresses this demand, offering reliable performance in demanding environments. Designed for permanent installation on rotating equipment, this transducer provides accurate velocity measurements essential for predictive maintenance and asset protection.

Technical Specifications Breakdown

The 190501-07-00-04 delivers a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%, ensuring consistent signal output across its operating range. Its frequency response spans 3.0 Hz to 900 Hz (180 to 54,000 cpm) within ±1.0 dB, extending to 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) at ±3.0 dB. This wide bandwidth captures both low-speed and high-speed vibration components. The output bias voltage is 10.1 Vdc ± 1.0 Vdc, referenced between Pin A and Pin B, while dynamic output impedance remains below 400 Ω typical. Amplitude linearity holds within ±2% up to 63.5 mm/s pk (2.5 in/s pk), and the mounted resonant frequency is a minimum of 9 kHz when stud mounted (excluding quick disconnect).

Industry Applications

Commonly deployed in oil and gas refineries, power generation plants, and chemical processing facilities, the 190501-07-00-04 monitors critical rotating assets such as turbines, compressors, and pumps. Its intrinsic safety approvals (Ex ia IIC T4, AEx ia IIC T4) and Class I, Division 1 ratings make it suitable for hazardous areas where flammable gases or vapors may be present. The transducer's robust 316L stainless steel case and 100% condensing humidity tolerance further enhance reliability in harsh outdoor or washdown environments.

Installation & Setup Guidance

Mount the transducer using the provided plate stud (3/8-24 to 3/8-24) with a torque of 4.5 N·m ± 0.6 N·m (40 in-lbf ± 5 in-lbf). Ensure the mounting surface is clean and flat to achieve the specified resonant frequency. The MIL-C-5015 connection interface simplifies wiring, and the transducer can be oriented in any direction. For optimal signal integrity, limit cable length to 305 meters (1,000 feet) using part number 02173006. Polarity is defined: Pin A goes positive with respect to Pin B when velocity is from base to top.

Maintenance & Reliability

With no moving parts and internal electronics isolated from the case, the 190501-07-00-04 requires minimal routine maintenance. Periodic visual inspection of the cable and connector for damage is recommended. The transducer withstands shock up to 5,000 g pk and operates from -40°C to +85°C, ensuring longevity in extreme conditions. Its broad frequency response and low transverse sensitivity (less than 5% of axial) reduce false readings, supporting consistent machinery protection.

Selection Guide & Purchasing Advice

When selecting the 190501-07-00-04, verify that the mounting hardware option (plate stud 3/8-24) matches your installation requirements. Confirm agency approval compatibility with your site's hazardous area classification. For complete technical specifications and current availability, contact BluePLC Industrial. Their team can assist with application-specific questions and ensure the transducer integrates seamlessly with your existing monitoring system.
