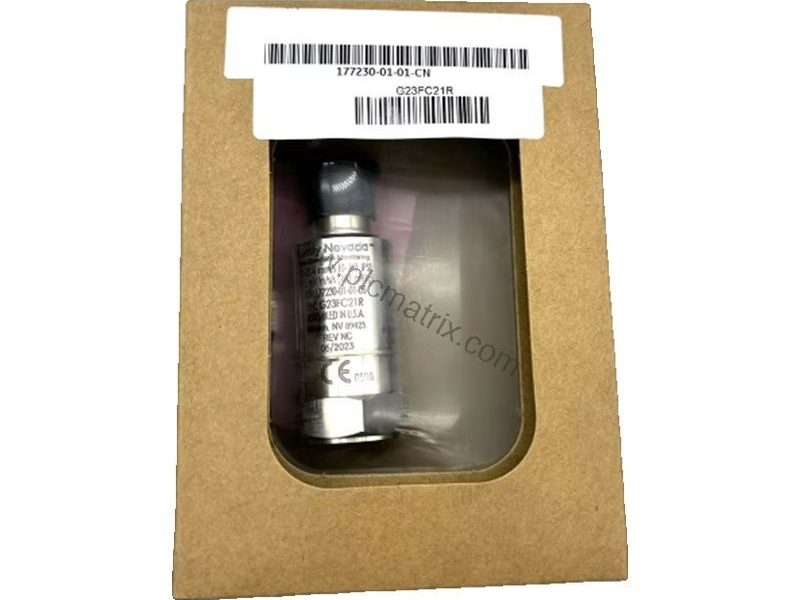

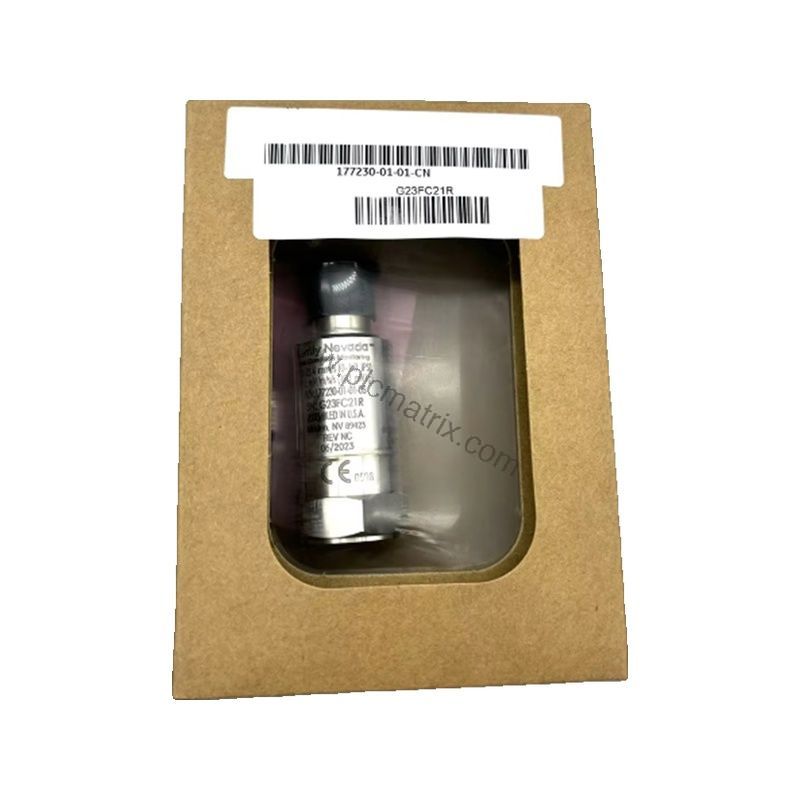

Bently Nevada 177230-02-01-05 Seismic Transmitter for Vibration Monitoring

Introduction

When unplanned downtime strikes rotating machinery, the root cause often lies in undetected vibration. The Bently Nevada 177230-02-01-05 Seismic Transmitter provides a reliable solution, converting vibration velocity into a standard 4-20 mA signal for seamless integration with PLCs, DCS, and SCADA systems. This robust instrument is engineered for continuous monitoring in demanding industrial environments.

Technical Specifications Breakdown

The 177230-02-01-05 offers a measurement range of 0 to 50.8 mm/s (0 to 2.0 in/s) with a frequency response of 10 Hz to 1 kHz (600 to 60 kcps) RMS. Its output is a 4-20 mA current loop, with sensitivity calibrated so that 4 ± 0.3 mA equals 0.0 mm/s and 20 ± 2 mA equals the full-scale range. The full-scale range option 01 is 25.4 mm/s (1.0 in/s) ± 10%. Excitation voltage ranges from 12 to 30 Vdc, current-limited to 40 mA. The transmitter features a ceramic shear sensing element and a mounted resonant frequency greater than 12 kHz. Transverse sensitivity is less than 5% of sensitivity.

Industry Applications

This seismic transmitter excels in monitoring vibration on fans, pumps, compressors, and turbines. In a petrochemical plant, for example, the 177230-02-01-05 can be installed on critical pumps to detect early signs of bearing wear or imbalance, enabling predictive maintenance and reducing costly unplanned shutdowns. Its hermetically sealed design and 316L stainless steel case make it suitable for offshore platforms and other corrosive environments.

Installation & Setup Guidance

Mount the transmitter using the 1/4-28 UNF or M6 x 1 SI / M8 x 1.25 SI threads, applying a mounting torque of 4 to 7 N-m (35.4 to 62.0 in-lbf). The 3-pin MIL-C-5015 connector wiring is straightforward: Pin A for 4-20 mA positive loop, Pin B for loop return, and Pin C for dynamic acceleration signal (unbuffered, referenced to Pin B). Ensure the excitation voltage is within 12 to 30 Vdc and the loop current is limited to 40 mA. Allow a settling time of less than 15 seconds within 2% of final value after power-up.

Maintenance & Reliability

With a hermetically sealed sensor and 316L stainless steel construction, the 177230-02-01-05 requires minimal maintenance. Its operating temperature range of -40°C to +85°C (-40°F to +185°F) and 100% non-submerged humidity tolerance ensure reliable performance in harsh conditions. Regular inspection of the connector and cable integrity is recommended. The transmitter's electrical isolation exceeds 108 ohms, with an isolation breakdown voltage of 600 Vrms, providing robust protection against ground loops.

Compatibility & Integration

This transmitter is designed for use with PLCs, DCS, and SCADA systems that have internal power supplies typically current-limited in the range of 30 mA to 35 mA. The 4-20 mA output integrates directly with standard analog input modules, making it a versatile choice for both new installations and retrofits. Multiple approvals (CSA/NRTL/C, ATEX/IECEx) facilitate global deployment.

Selection Guide & Purchasing Advice

When selecting the 177230-02-01-05, verify that the measurement range and frequency response match your application requirements. Ensure your system's power supply provides 12-30 Vdc with appropriate current limiting. For assistance with configuration or to confirm availability, contact BluePLC Industrial, your trusted source for Bently Nevada automation components.
