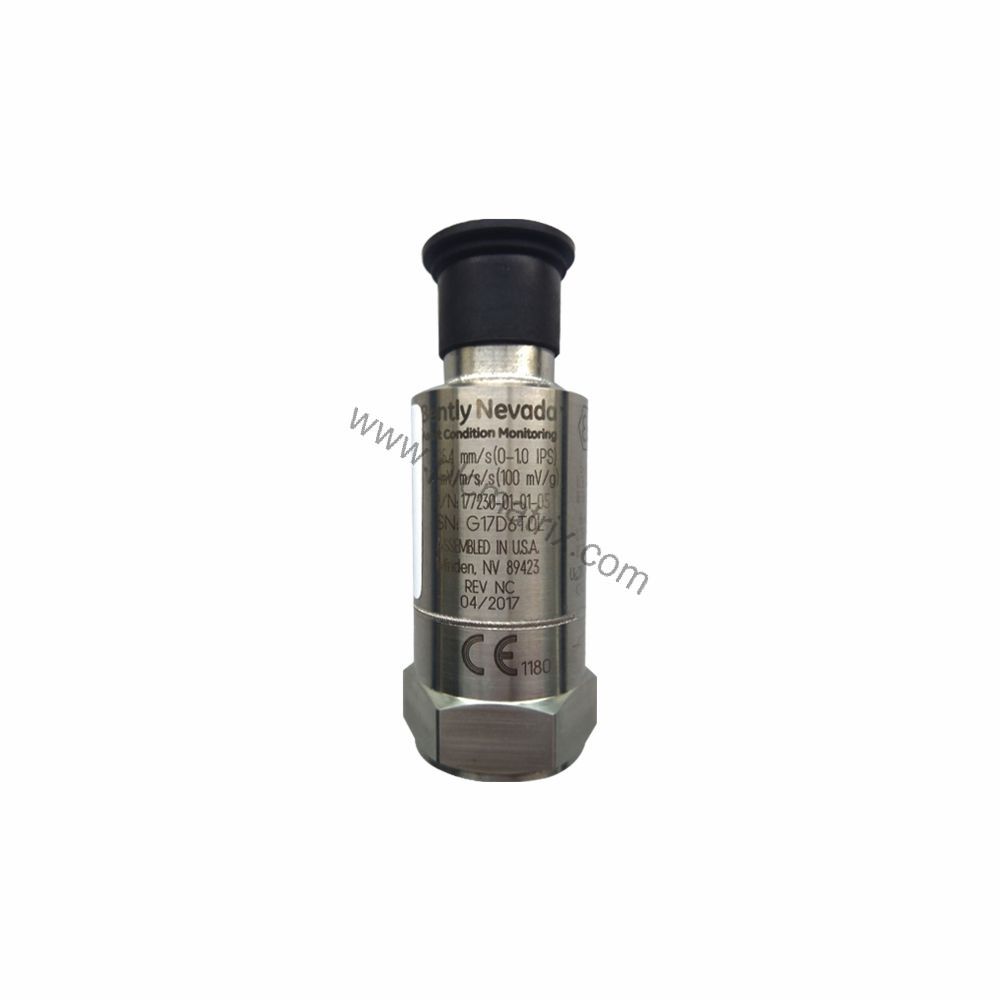

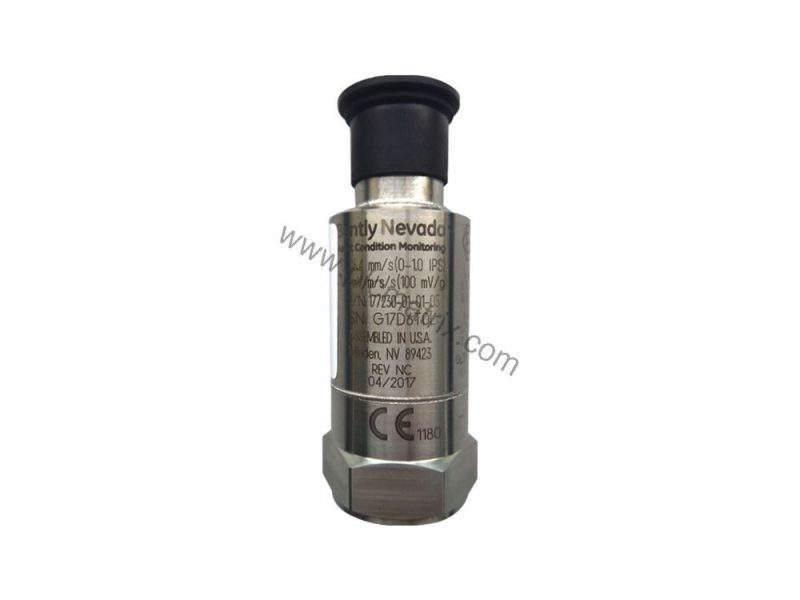

Bently Nevada 177230-01-02-05 Seismic Transmitter for Vibration Monitoring

Product Introduction

When unplanned downtime threatens production targets, the Bently Nevada 177230-01-02-05 Seismic Transmitter provides reliable vibration monitoring for rotating and reciprocating machinery. This industrial-grade transmitter converts mechanical vibration into a standardized 4 to 20 mA current loop signal, enabling seamless integration with PLCs, DCS, and SCADA systems. Manufactured in the U.S.A., the 177230-01-02-05 is engineered for harsh environments where accuracy and durability are non-negotiable.

Technical Specifications Breakdown

The 177230-01-02-05 offers a measurement range of 0 – 25.4 mm/s (0 – 1.0 in/s) with a full-scale accuracy of ±10%. Its frequency response covers 3 Hz to 1 kHz (±10%), making it suitable for detecting a wide spectrum of vibration frequencies. The main loop sensitivity is calibrated so that 4 ± 0.3 mA equals 0.0 mm/s, and 20 ± 2 mA equals the full-scale range. The transmitter operates on an excitation voltage of 12 to 30 Vdc, current-limited to 40 mA, and settles within 15 seconds to within 2% of the final value. It features a mounted resonant frequency greater than 12 kHz and transverse sensitivity less than 5% of sensitivity. The sensing element is ceramic shear type, ensuring stable performance over time.

Industry Applications

This seismic transmitter is ideal for monitoring vibration in fans, pumps, compressors, and turbines across oil and gas, power generation, and manufacturing facilities. In a typical refinery application, the 177230-01-02-05 mounts directly on bearing housings to provide early warning of bearing degradation or imbalance. By converting real-time vibration data into a 4-20 mA signal, operators can trend machine health and schedule maintenance before catastrophic failure occurs. The transmitter's ability to operate in 100% non-submerged relative humidity makes it suitable for outdoor installations in humid climates.

Installation & Setup Guidance

Mount the 177230-01-02-05 using the 1/4-28 UNF mounting hole or the available M6 x 1 SI or M8 x 1.25 SI threads. Apply a mounting torque of 4 to 7 N-m (35.4 to 62.0 in-lbf) to ensure secure mechanical coupling. The 3-pin MIL-C-5015 connector (316L stainless steel) simplifies wiring: Pin A connects to the 4-20 mA positive loop, Pin B to the loop return, and Pin C provides an unbuffered dynamic acceleration signal referenced to Pin B. Verify that the host system's internal power supply is current-limited between 30 mA and 35 mA for proper operation.

Maintenance & Reliability

The hermetically sealed sensor and 316L stainless steel case protect against moisture and corrosive atmospheres, ensuring long service life. With an operating temperature range of -40°C to +85°C (-40°F to +185°F), the transmitter performs reliably in extreme conditions. Periodic inspection of the connector and mounting integrity is recommended, but no internal maintenance is required. The shock survivability rating of 9.810 m/s² (1.000 g peak) maximum drop test confirms its robustness during handling and installation.

Selection Guide & Purchasing Advice

Before ordering the 177230-01-02-05, verify that the measurement range and frequency response match your application requirements. The -AA option specifies 0 – 25.4 mm/s (1.0 in/s) full scale, while the -BB option defines the 3 Hz to 1 kHz frequency response. Multiple approvals (CSA/NRTL/C, ATEX/IECEx) are included, but always confirm local certification needs. BluePLC Industrial stocks this Bently Nevada transmitter and can assist with compatibility questions for your existing monitoring system.
