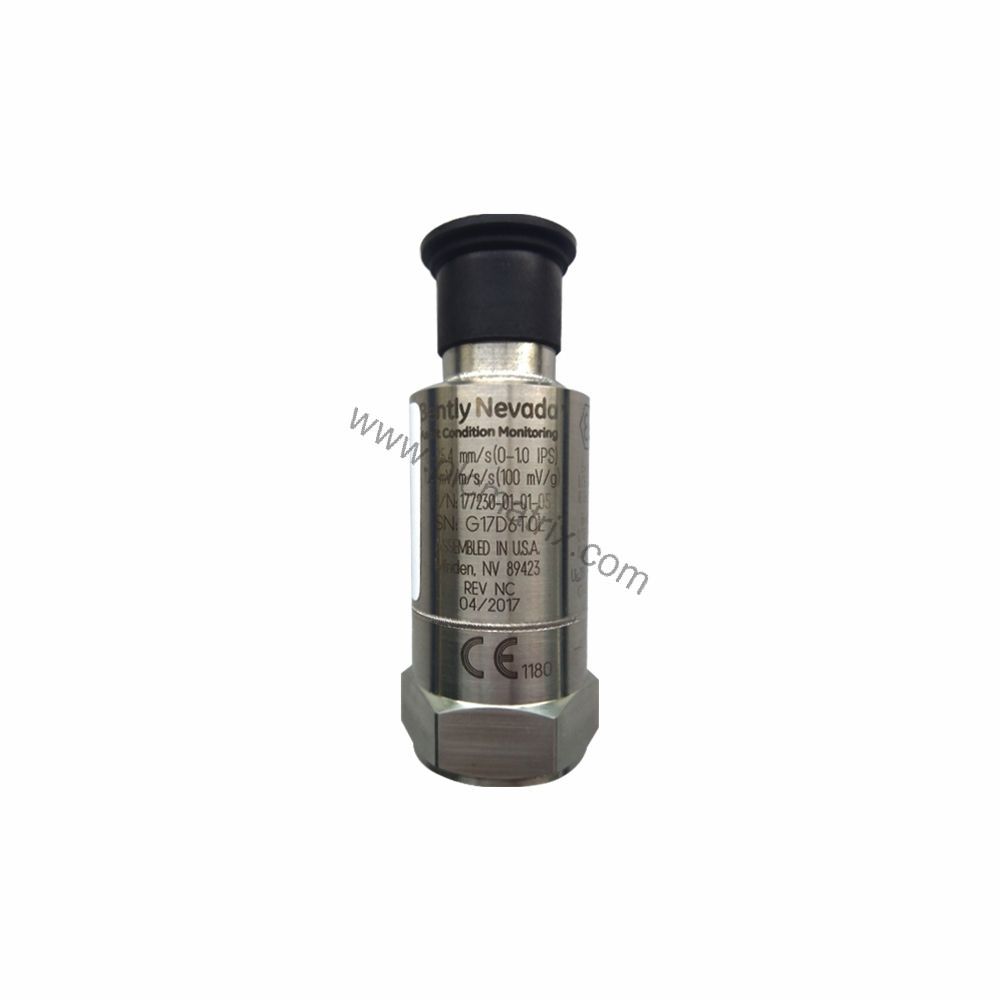

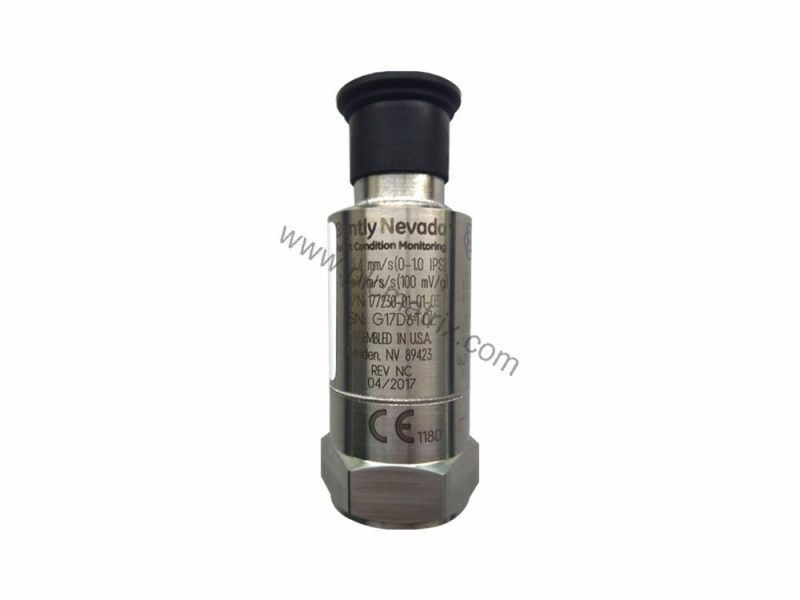

Bently Nevada 177230-00-01-05 Seismic Transmitter Overview

Product Introduction

When machinery vibration threatens uptime, the Bently Nevada 177230-00-01-05 provides reliable seismic measurement for industrial protection. This seismic transmitter converts vibration velocity into a standard 4-20 mA current loop signal, enabling seamless integration with PLCs, DCS, and SCADA systems. Built with a 316L stainless steel case and hermetically sealed sensor, it withstands harsh environments including 100% non-submerged humidity. The 177230-00-01-05 is manufactured in the USA and carries multiple approvals including CSA/NRTL/C and ATEX/IECEx.

Technical Specifications Breakdown

The 177230-00-01-05 offers a measurement range of 0 to 12.7 mm/s (0 to 0.5 in/s) with a frequency response of 10 Hz to 1 kHz (600 to 60 kcps) RMS. Its output signal is a 4-20 mA current loop from Pin A to Pin B, where 4 ± 0.3 mA equals 0.0 mm/s and 20 ± 2 mA equals the full scale range of 25.4 mm/s (1.0 in/s) ± 10%. The transmitter operates on an excitation voltage of 12 to 30 Vdc, current limited to 40 mA, and has a settling time of less than 15 seconds within 2% of final value. The sensing element is ceramic/shear type, with transverse sensitivity less than 5% of sensitivity. Mounted resonant frequency exceeds 12 kHz. The device measures 25.4 mm (1.00 in) in diameter and 66.0 mm (2.60 in) in height, weighing 0.131 kg (4.62 oz).

Industry Applications

This seismic transmitter excels in rotating machinery monitoring, such as pumps, fans, compressors, and turbines. In oil and gas facilities, it provides early warning of bearing wear or imbalance, reducing unplanned downtime. For power generation plants, the 177230-00-01-05 integrates directly into existing DCS or SCADA systems, offering real-time vibration data for predictive maintenance. Its rugged 316L stainless steel construction and hermetic seal make it suitable for offshore platforms and chemical processing environments where corrosion resistance is critical.

Installation & Setup Guidance

Mount the 177230-00-01-05 using the 1/4-28 UNF mounting hole in the body, or optional M6 x 1 SI or M8 x 1.25 SI threads. Apply a mounting torque of 4 to 7 N-m (35.4 to 62.0 in-lbf). The 3-pin MIL-C-5015 connector (316L stainless steel) follows this wiring convention: Pin A is 4-20 mA positive loop, Pin B is 4-20 mA loop return (negative loop return and common for dynamic signal), and Pin C is dynamic acceleration signal (unbuffered, referenced to Pin B). Ensure the excitation voltage is between 12 and 30 Vdc with current limited to 40 mA. The device is designed for use with PLCs, DCS, and SCADA systems that have internal power supplies typically current limited in the range of 30 mA to 35 mA.

Maintenance & Reliability

The hermetically sealed sensor and 316L stainless steel case provide excellent long-term reliability in harsh conditions. The transmitter operates from -40°C to +85°C (-40°F to +185°F) and withstands 100% non-submerged humidity. Electrical isolation exceeds 108 ohms with an isolation breakdown voltage of 600 Vrms at less than 1 mA leakage current. Shock survivability is rated for a 9.810 m/s² (1.000 g peak) maximum drop test. For routine maintenance, inspect the connector and mounting integrity periodically. No internal adjustments are required; the device is factory-calibrated. Contact BluePLC Industrial for replacement or recalibration services.

Buying Guide & Selection Advice

Before purchasing the 177230-00-01-05, verify that your system's power supply can provide 12 to 30 Vdc with current limiting in the 30-40 mA range. Confirm the mounting thread compatibility (1/4-28 UNF, M6 x 1, or M8 x 1.25) and ensure the connector type matches your cabling. This transmitter is ideal for new installations or as a direct replacement for existing seismic transmitters in Bently Nevada systems. For current lifecycle status and availability, please contact BluePLC Industrial. They offer expert support and fast shipping for industrial automation components.
