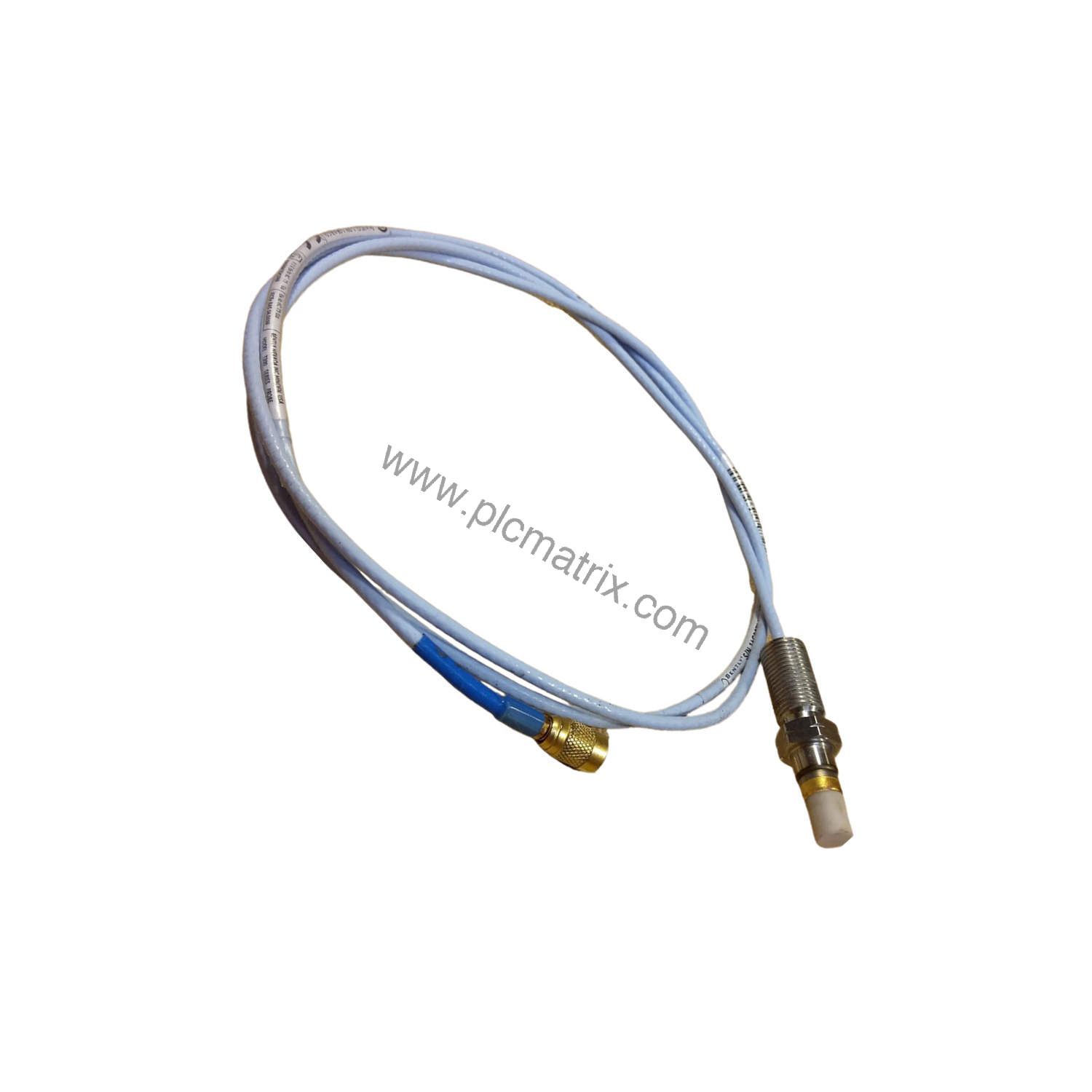

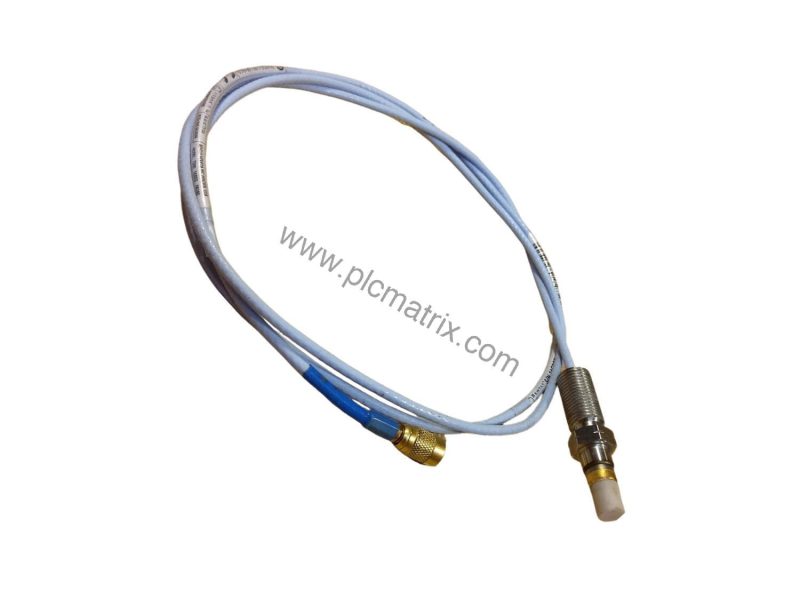

Bently Nevada 146055-05-02-05 3300 Ceramic Capped Reverse Mount Probe

Solving Vibration Monitoring Challenges in Harsh Environments

When rotating machinery operates in high-temperature or high-pressure environments, standard proximity probes often fail due to thermal expansion or seal degradation. The Bently Nevada 146055-05-02-05 3300 Ceramic Capped Reverse Mount Probe addresses this challenge directly. Its alumina ceramic tip withstands extreme conditions while providing reliable shaft vibration and position measurements. This probe is part of the proven 3300 series, designed for continuous duty in critical turbomachinery applications.

Technical Specifications

The 146055-05-02-05 features a 3/8-24 UNF thread with a total probe length of 0.5 meter (1.6 feet). It uses a miniature ClickLoc coaxial connector with standard cable. The probe case is made of AISI 304 stainless steel, and the probe tip is alumina ceramic (Al2O3). Agency approval option -05 indicates multiple approvals for global use. The probe is rated to seal 34 Bar (500 psi) nitrogen, and its operating temperature range spans -51°C to +177°C (-60°F to +351°F).

Industry Applications

This probe excels in steam turbines, gas compressors, and large pumps where reverse mounting is required for limited-access installations. In a recent retrofit of a refinery's main air compressor, the 146055-05-02-05 replaced older sensors that suffered from cable fatigue. The ceramic cap resists contamination from oil mist, while the stainless steel case prevents corrosion in humid environments. The 0.5 meter cable length simplifies routing in tight cable trays.

Installation & Setup Guidance

When mounting the 146055-05-02-05, ensure the probe case thread engages fully but does not exceed the maximum thread engagement of 0.563 inches. Use a torque wrench to avoid overtightening the ceramic tip. The miniature ClickLoc connector requires a compatible extension cable; verify the connector type before installation. For optimal performance, calibrate the system with an AISI 4140 steel target as specified in the system documentation.

Maintenance & Reliability

Regular inspection of the probe cable and connector is recommended to prevent signal degradation. The ceramic tip should be cleaned gently with a soft cloth if debris accumulates. Given the probe's 12-month factory warranty, routine checks every six months help ensure long-term reliability. The 146055-05-02-05 is designed for minimal maintenance, but verify the pressure seal integrity after any system overhaul.

Selection Guide & Purchasing Advice

Before ordering, confirm the total probe length requirement: the -05 option provides 0.5 meter. For longer runs, consider the 1, 2, 5, or 9 meter options. The connector type (-02) is miniature ClickLoc coaxial; ensure your extension cable matches. BluePLC Industrial stocks this part as new and original in factory packing. Contact our team to verify current lifecycle status and availability.
