Bently Nevada 146055-05-02-00 3300 Ceramic Capped Reverse Mount Probe

Product Introduction

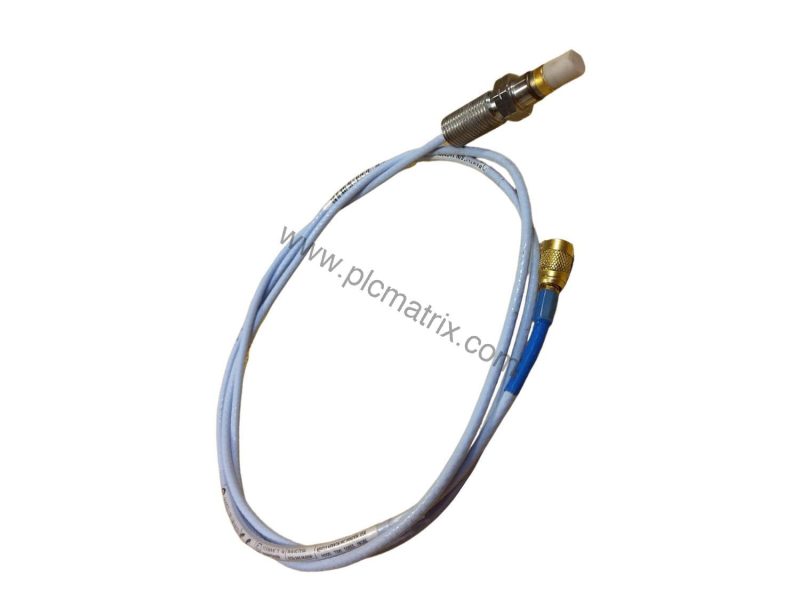

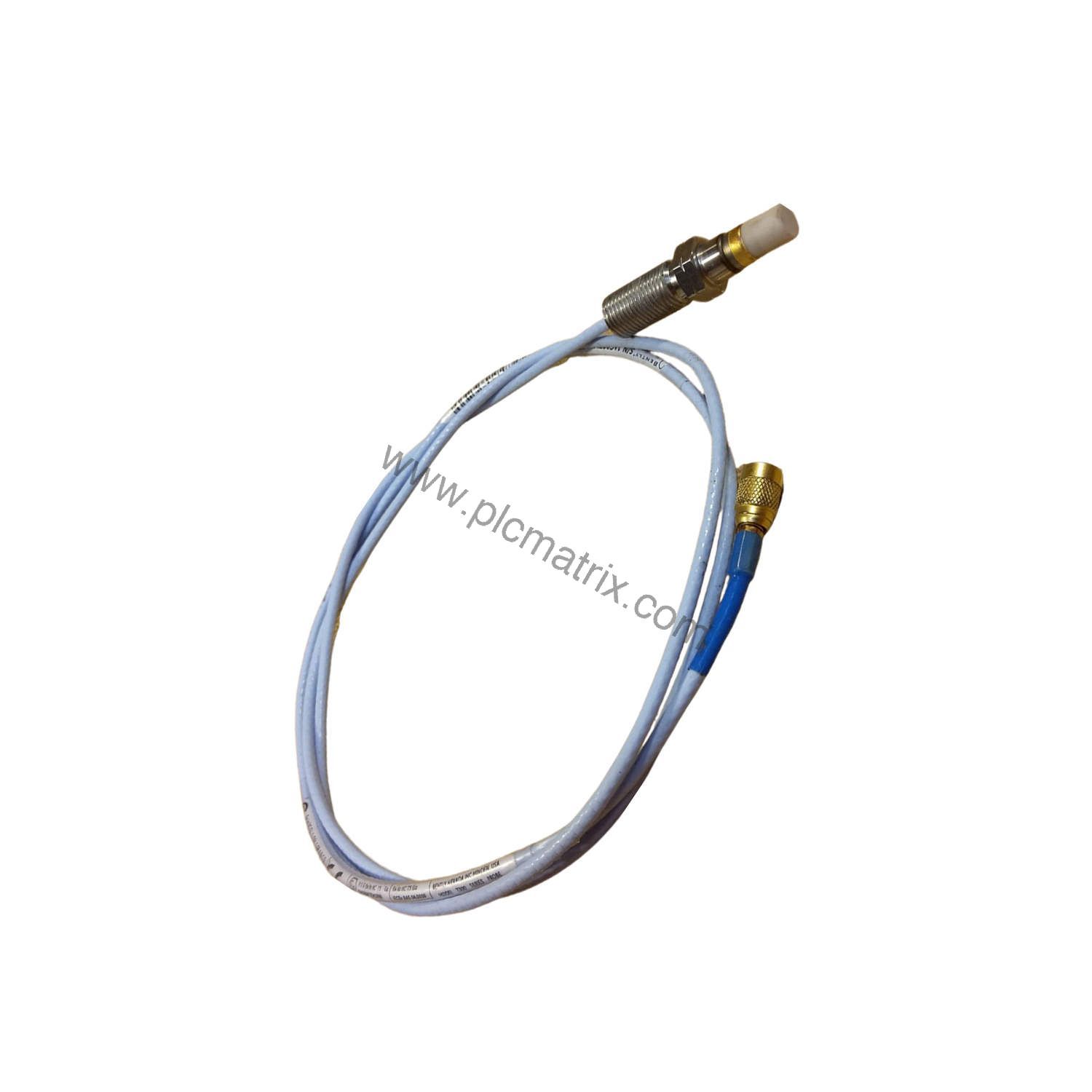

When unplanned downtime threatens production targets, the Bently Nevada 146055-05-02-00 3300 Ceramic Capped Reverse Mount Probe delivers reliable vibration monitoring for critical rotating assets. This precision sensor forms part of the trusted 3300 series, engineered to detect shaft displacement and vibration in turbines, compressors, and pumps. The 146055-05-02-00 features a 0.5 meter (1.6 feet) total length with 3/8-24 UNF threads, an alumina ceramic tip, and a miniature ClickLoc coaxial connector. Each unit ships new and original in factory packing with a 12-month warranty from BluePLC Industrial.

Technical Specifications Breakdown

Understanding the key parameters of the 146055-05-02-00 ensures correct application and installation. The probe uses 3/8-24 UNF threads, a standard size for mounting in bearing housings and machine casings. The total length option -05 indicates a 0.5 meter probe, suitable for installations where the sensor must reach close to the target without excess cable. The connector and cable-type option 02 specifies a miniature ClickLoc coaxial connector with standard cable, providing a secure and quick connection. The agency approval option -00 means no special certification is required for this variant, simplifying procurement for general industrial use. Probe case thread is 3/8-24, and available probe lengths include 0.5, 1, 2, 5, or 9 meters to accommodate various machine geometries.

Industry Applications

In the oil and gas sector, the Bently Nevada 146055-05-02-00 monitors shaft vibration in high-speed centrifugal compressors, helping operators detect early signs of bearing wear or imbalance before catastrophic failure occurs. For power generation facilities, this probe installs in steam turbine bearing housings to provide continuous shaft relative vibration data, enabling condition-based maintenance scheduling. The alumina ceramic tip withstands harsh environments, while the reverse mount design simplifies installation in confined spaces. By integrating this sensor into a 3300 system, engineers gain accurate, repeatable measurements that support predictive maintenance programs and reduce unplanned outages.

Installation & Setup Guidance

Proper installation of the 146055-05-02-00 begins with verifying the mounting thread compatibility—3/8-24 UNF—and ensuring the probe tip will be positioned within the linear range of 0.25 to 1.78 mm from the target. Use the miniature ClickLoc connector to attach the extension cable, ensuring a clean, secure fit to maintain signal integrity. For optimal performance, mount the probe in a location free from excessive oil mist or debris, and follow the torque specifications provided in the 3300 system manual. Always verify the total probe length matches the machine geometry to avoid cable strain or incorrect gap settings.

Maintenance & Reliability

Routine inspection of the 146055-05-02-00 focuses on the probe cable and connector integrity. Check for cuts, kinks, or corrosion on the coaxial cable, as damage can introduce noise into the vibration signal. The alumina ceramic tip resists wear and chemical attack, but periodic visual inspection ensures no physical damage has occurred. Environmental factors such as temperature extremes (-51°C to +177°C) and pressure (rated to 34 Bar) are well within the probe's design limits, making it suitable for demanding industrial settings. Following the manufacturer's guidelines for periodic system calibration maintains measurement accuracy over the long term.

Selection Guide & Purchasing Advice

When selecting the Bently Nevada 146055-05-02-00, confirm the total length option matches your installation requirement—0.5 meter for this variant. Verify the connector type (miniature ClickLoc) is compatible with your existing extension cables and Proximitor sensor. For applications requiring agency approvals, consider other options in the 146055 ordering code. BluePLC Industrial stocks this probe new and original in factory packing, backed by a 12-month warranty. Contact our team to verify lifecycle status and availability before ordering, ensuring you receive the correct component for your critical machinery monitoring system.
