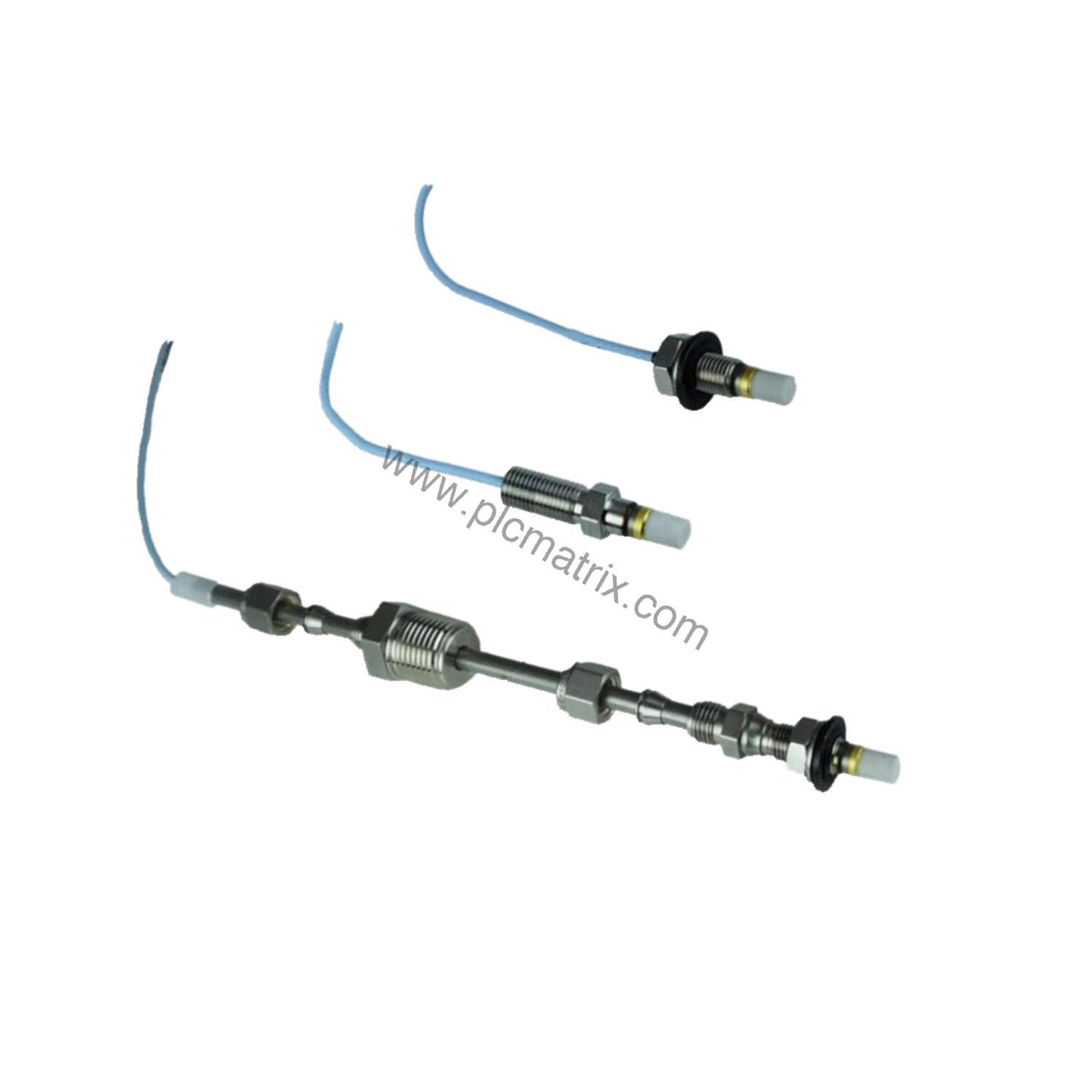

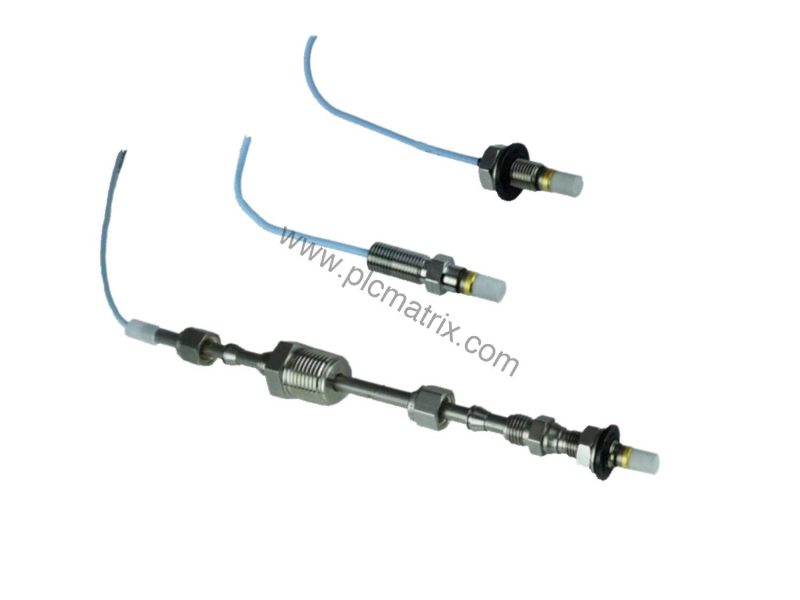

Bently Nevada 146054-08-90-01-00 3300 Ceramic Capped Proximity Probe

Introduction

In the demanding world of industrial rotating machinery, accurate vibration monitoring is not just a preference—it is a necessity. The Bently Nevada 146054-08-90-01-00 3300 Ceramic Capped Proximity Probe represents a critical component for safeguarding turbines, compressors, and pumps. This probe, part of the trusted 3300 series, delivers precise shaft displacement measurements, enabling predictive maintenance and preventing catastrophic failures. By converting mechanical motion into an electrical signal, it provides operators with real-time insight into machine health.

Technical Specifications

The 146054-08-90-01-00 is a 3300 Ceramic Capped Probe with a 3/8-24 UNF thread and no armor. Its overall case length is 0.8 inches (option -08), and the total probe length is 9.0 meters (29.5 feet). The probe case thread is 3/8-24, with a maximum thread engagement length of 0.563 inches. The probe tip is made of alumina ceramic (Al2O3), and the case material is AISI 304 stainless steel. The standard cable is 75 Ω coaxial, FEP insulated, available in lengths of 0.5, 1, 2, 5, or 9 meters. The probe operates and stores in temperatures from -51°C to +177°C and is rated to seal 34 Bar (500 psi) nitrogen.

Industry Applications

This probe excels in monitoring radial and axial shaft positions in critical rotating equipment. In power generation, it tracks turbine shaft vibration, helping operators avoid unplanned outages. In oil and gas, it monitors compressor and pump health in harsh environments. The ceramic tip provides excellent wear resistance, making it ideal for continuous duty in high-temperature areas. The 9-meter cable length suits installations where the proximity sensor must be placed far from the monitoring system, offering flexibility in machine layout.

Installation & Setup Guidance

Proper installation is key to accurate readings. Mount the probe with the 3/8-24 UNF thread into a suitable mounting bracket or machine case. Ensure the target surface is clean and made of AISI 4140 steel for calibration consistency. The linear range starts at approximately 0.25 mm (10 mils) from the target and extends to 1.78 mm (70 mils). Use the provided ClickLoc miniature coaxial connector with connector protector for secure cable attachment. Avoid bending the cable sharply near the probe head to prevent damage. Always follow the manufacturer's guidelines for gap setting and initial calibration.

Maintenance & Reliability

The 146054-08-90-01-00 is built for long-term reliability. The stainless steel case and ceramic tip resist corrosion and wear. Routine inspection should focus on cable integrity and connector cleanliness. Check for any signs of physical damage or contamination on the probe face. The probe's robust design minimizes drift, but periodic verification against a known target is recommended. With proper care, this probe delivers consistent performance over many years, reducing total cost of ownership.

Selection Guide & Purchasing Advice

When selecting a replacement or new probe, verify the total length, thread type, and cable option match your system requirements. The 146054-08-90-01-00 is a 9-meter probe with a 3/8-24 thread and no armor. Ensure your extension cable and Proximitor sensor are compatible with the 3300 5 mm system. BluePLC Industrial offers this probe new and in original factory packing with a 12-month factory warranty. Contact BluePLC Industrial for complete technical specifications and to confirm lifecycle status before ordering.
