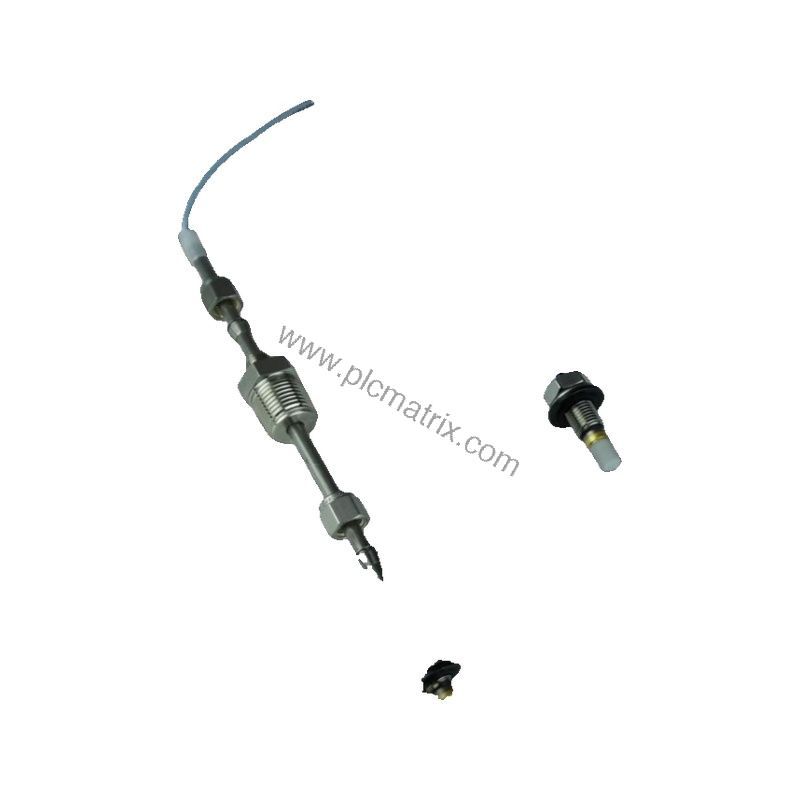

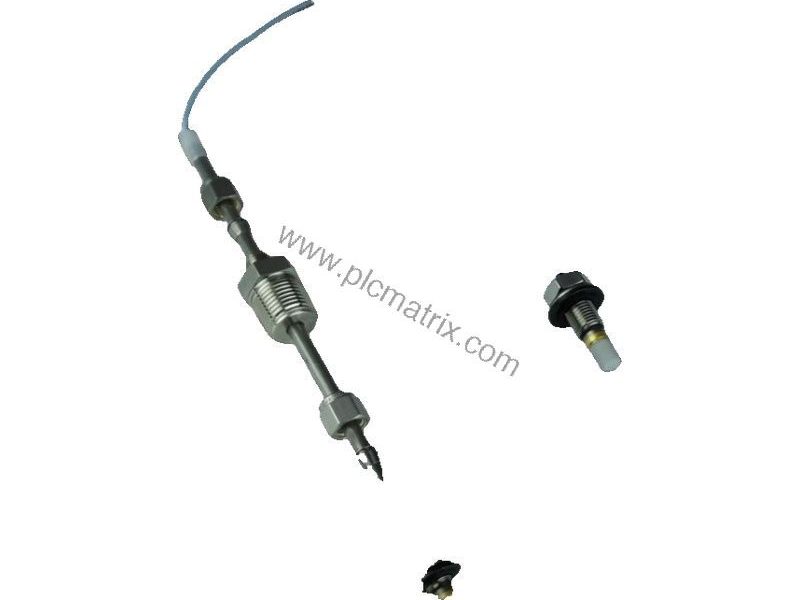

Bently Nevada 146054-08-90-00-00 3300 Ceramic Capped Proximity Probe

Product Overview

When machine vibration threatens uptime, the Bently Nevada 146054-08-90-00-00 3300 Ceramic Capped Proximity Probe delivers precise, reliable measurement. This probe is part of the trusted 3300 series, designed for non-contact displacement sensing in critical rotating machinery. With a 3/8-24 UNF thread and a 0.8-inch overall case length, it offers a robust mounting solution. The 9.0-meter (29.5 feet) total length provides flexibility for installation in large equipment trains. This model comes without armor and without a connector, making it suitable for custom cable routing in permanent monitoring setups.

Technical Specifications

The 146054-08-90-00-00 operates as part of a 3300 5 mm system, delivering a linear range of 1.52 mm (60 mils) starting at approximately 0.25 mm (10 mils) from the target. The incremental scale factor (ISF) is 7.87 V/mm (200 mV/mil) with ±6.5% interchangeability error over the full linear range. The probe tip is made of alumina ceramic (Al2O3), and the probe case is AISI 304 stainless steel. It uses a 75 Ω coaxial, FEP insulated cable. Operating temperature range is -51°C to +177°C (-60°F to +351°F), and it is rated to seal 34 Bar (500 psi) nitrogen. The nominal DC resistance from center conductor to outer conductor is 9.87 ± 0.90 ohms for the 9.0-meter probe.

Industry Applications

This proximity probe is ideal for vibration and position monitoring in turbines, compressors, pumps, and motors. In a steam turbine application, the 146054-08-90-00-00 provides accurate shaft displacement data, enabling early detection of bearing wear or imbalance. For centrifugal compressors, the ceramic tip offers excellent wear resistance in high-speed environments. The 9.0-meter cable length suits large machinery where the proximitor is mounted remotely from the probe.

Installation & Setup Guidance

When installing the 146054-08-90-00-00, ensure the probe tip is properly positioned within the linear range (0.25 to 1.78 mm from target). Use the 3/8-24 UNF thread for secure mounting, with a maximum thread engagement of 0.563 inches. For best performance, pair the probe with a compatible Bently Nevada Proximitor sensor and extension cable. Calibrate the system using an AISI 4140 steel target as reference. Avoid overtightening to prevent damage to the ceramic tip.

Maintenance & Reliability

The ceramic capped design provides excellent durability in harsh environments. Regularly inspect the probe cable for cuts or abrasion, especially near the machine casing. The FEP insulation resists chemicals and high temperatures. Verify the probe resistance periodically (9.87 ± 0.90 ohms) to ensure cable integrity. For long-term reliability, follow the manufacturer's guidelines for periodic system verification.

Selection Guide & Purchasing Advice

Before ordering the 146054-08-90-00-00, confirm your system requirements: this probe has a 0.8-inch case length, 9.0-meter total length, no connector, and no agency approval. For applications needing a connector or different cable length, consider other options in the 3300 series. BluePLC Industrial offers this probe new and in original factory packing with a 12-month warranty. Contact us to verify current lifecycle status and availability.
