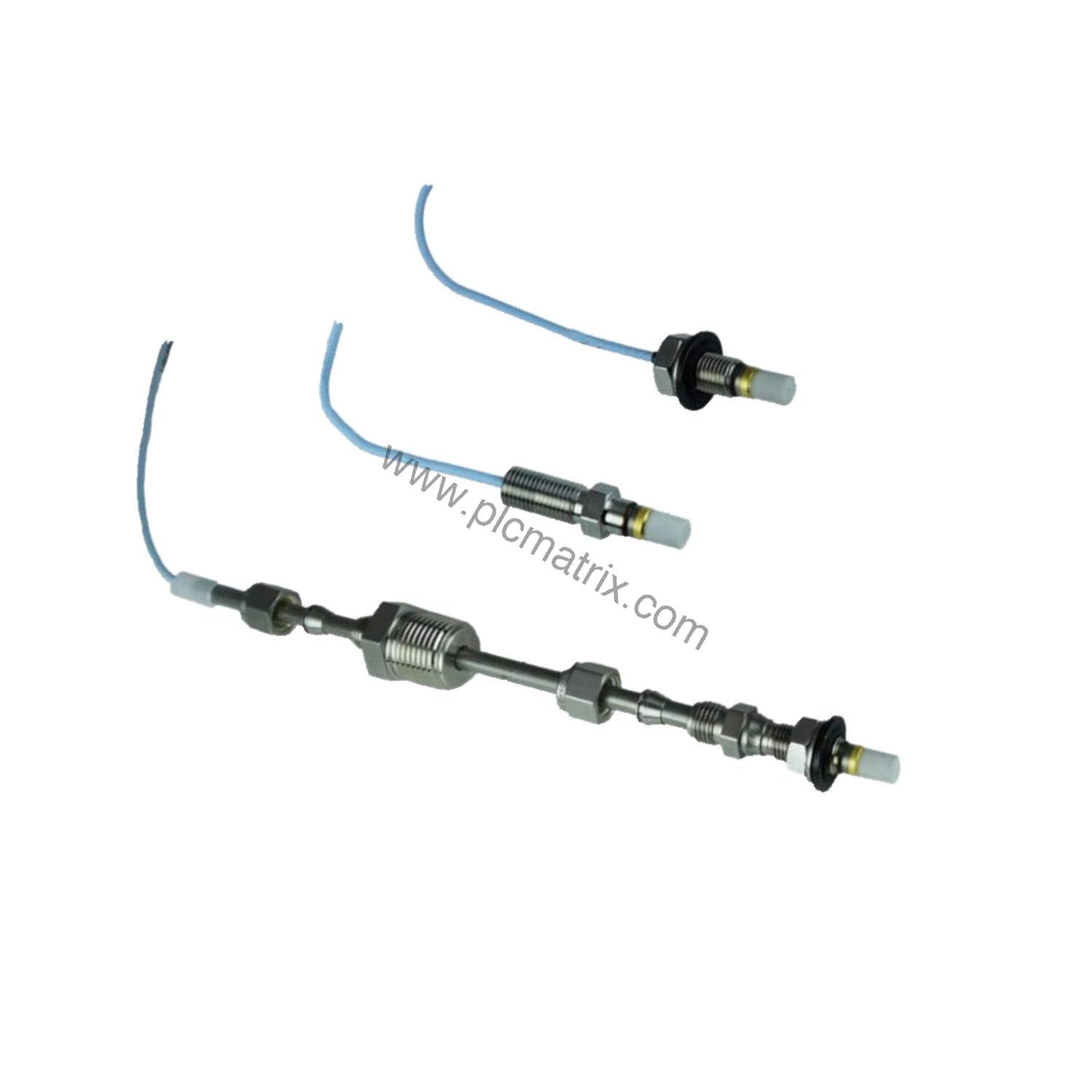

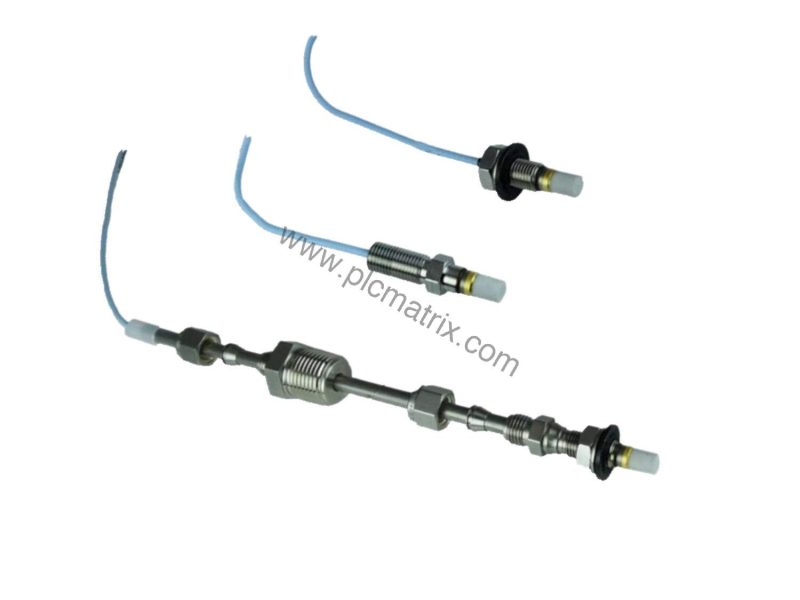

Bently Nevada 146054-08-90-00-00 3300 Ceramic Capped Proximity Probe

Product Overview

In the demanding world of rotating machinery monitoring, the Bently Nevada 146054-08-90-00-00 3300 Ceramic Capped Proximity Probe sets a benchmark for precision and durability. As industrial plants evolve toward predictive maintenance, reliable vibration and position sensing becomes critical to avoid unplanned downtime. This probe, part of the trusted 3300 series, delivers consistent performance in harsh environments, from steam turbines to compressors. With a ceramic tip designed for wear resistance, it ensures accurate gap measurements over extended periods. The 146054-08-90-00-00 model features a 0.8-inch overall case length and a 9.0-meter cable, making it suitable for installations where the sensor must be placed far from the monitoring system. Bently Nevada's engineering excellence guarantees that this probe integrates seamlessly with 3300 XL Proximitor systems, providing the data needed for effective condition monitoring.

Technical Specifications

The 146054-08-90-00-00 is a 3300 Ceramic Capped Probe with a 3/8-24 UNF thread and no armor. Key specifications from the manufacturer include:

Overall Case Length: 0.8 inches (option -08)

Total Length: 9.0 meters (29.5 feet) (option -90)

Connector and Cable-Type: No connector (option 00)

Agency Approval: Not required (option -00)

Probe Case Thread: 3/8-24

Available probe lengths: 0.5, 1, 2, 5, or 9 meters

These parameters ensure compatibility with standard mounting configurations and allow for flexible installation in tight spaces. The ceramic cap provides excellent thermal stability and resistance to abrasion, maintaining measurement accuracy even in high-vibration environments.

Industry Applications

This proximity probe is ideal for critical rotating equipment such as gas turbines, centrifugal compressors, and large electric motors. In the oil and gas industry, where continuous operation is paramount, the 146054-08-90-00-00 helps detect shaft vibration and axial position changes early, enabling timely maintenance. Similarly, in power generation, it monitors turbine clearances to prevent catastrophic failures. The probe's robust construction and 9-meter cable length make it a practical choice for installations where the sensor must be located away from the monitoring cabinet, reducing signal noise and improving reliability.

Installation Guidance

Proper installation is key to achieving accurate readings. When mounting the 146054-08-90-00-00, ensure the probe tip is perpendicular to the target surface and within the specified gap range. The 3/8-24 UNF thread allows secure mounting using standard hardware. Avoid overtightening, which could damage the ceramic cap. Route the coaxial cable away from high-voltage lines to prevent electromagnetic interference. For best results, pair this probe with a compatible Bently Nevada Proximitor and extension cable, following the manufacturer's guidelines for system calibration.

Maintenance and Reliability

The 146054-08-90-00-00 requires minimal maintenance due to its sealed design and ceramic tip. Regularly inspect the cable for cuts or abrasions, especially in areas with high mechanical stress. Check the probe tip for debris or contamination, which can affect measurement accuracy. The probe operates reliably across a wide temperature range, but avoid exposing it to chemicals or excessive moisture beyond its rated specifications. With proper care, this probe delivers years of consistent performance, supporting your plant's reliability goals.

Selection Guide and Purchasing Advice

Before ordering the 146054-08-90-00-00, verify that your system requires a 9.0-meter probe with a 0.8-inch case length and no connector. If your application needs a different length or connector type, refer to the 146054 ordering code to select the correct options. BluePLC Industrial offers this probe in new, original factory packaging with a 12-month warranty. Contact our team to confirm compatibility with your existing Bently Nevada monitoring system and to discuss volume pricing or expedited shipping options.
