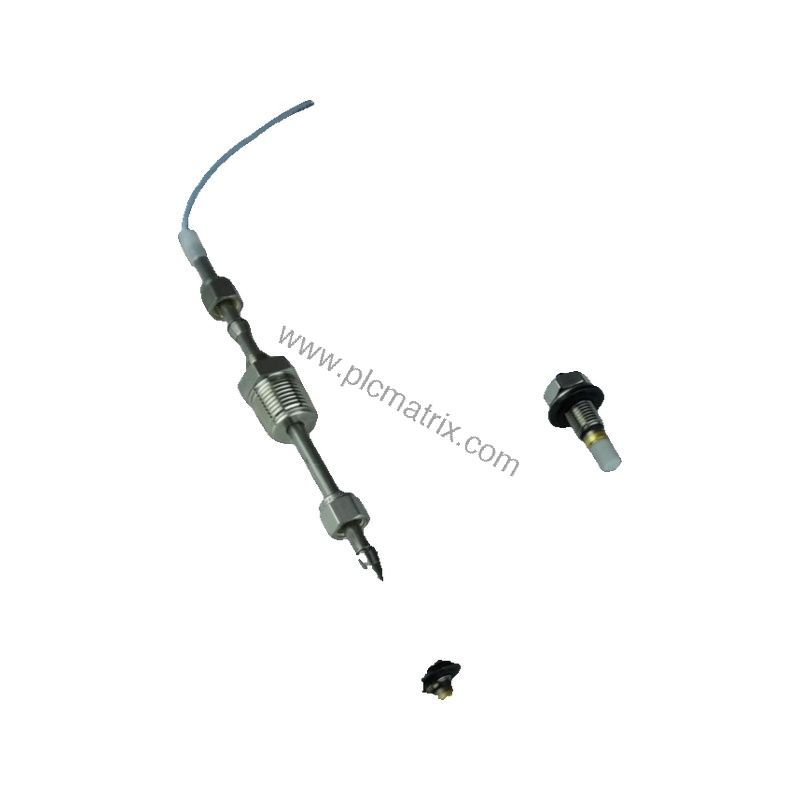

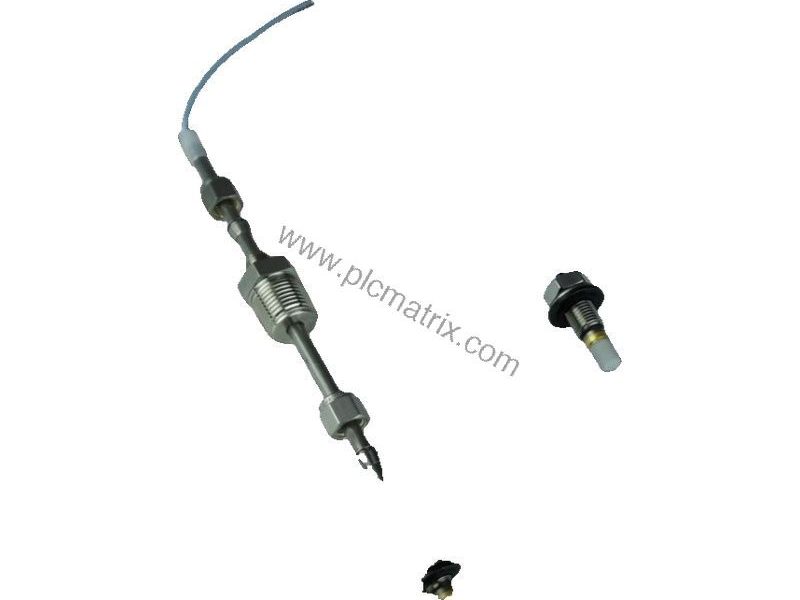

Bently Nevada 146054-08-10-01-00 3300 Ceramic Capped Proximity Probe

Product Overview

When reliable vibration monitoring is critical for rotating machinery, the Bently Nevada 146054-08-10-01-00 3300 Ceramic Capped Proximity Probe delivers precise displacement measurements. This probe is part of the trusted 3300 series, designed for harsh industrial environments. With a 3/8-24 UNF thread and a robust ceramic tip, it provides consistent performance for turbine, compressor, and pump protection systems.

Technical Specifications

The 146054-08-10-01-00 features a 0.8-inch overall case length and a total probe length of 1.0 meter (3.3 feet). It uses a miniature coaxial ClickLoc connector with a connector protector and standard cable. The probe case thread is 3/8-24, and the maximum thread engagement length is 0.563 inches. Nominal DC resistance from the center conductor to the outer conductor is 7.59 ± 0.50 ohms for the 1.0-meter probe. The probe tip material is alumina ceramic (Al₂O₃), and the case is AISI 304 stainless steel. Operating and storage temperature range is -51°C to +177°C (-60°F to +351°F). The probe is rated to seal 34 Bar (500 psi) nitrogen.

Industry Applications

This proximity probe is widely used in oil and gas, power generation, and petrochemical facilities for monitoring shaft vibration and position. In steam turbines, the 146054-08-10-01-00 provides accurate gap voltage readings to detect early signs of bearing wear or misalignment. Compared to standard proximity probes, the ceramic capped design offers improved resistance to debris and high-temperature environments, reducing false readings and maintenance intervals.

Installation & Setup Guidance

Mount the probe using the 3/8-24 UNF thread into a suitable mounting block or bracket. Ensure the target surface is clean and made of AISI 4140 steel for optimal linearity. The linear range starts at approximately 0.25 mm (10 mils) from the target and extends to 1.78 mm (70 mils). Connect the miniature coaxial ClickLoc connector to the extension cable, ensuring a secure fit to maintain signal integrity. For best results, follow the manufacturer's recommended gap setting procedures.

Maintenance & Reliability

Regularly inspect the probe cable and connector for damage or wear. The ceramic tip is durable but should be checked for cracks or contamination. The 146054-08-10-01-00 is built for long service life in demanding conditions, and its stainless steel case resists corrosion. For extended reliability, verify that the probe is not exposed to temperatures beyond its rated range. Routine calibration checks against a known target help maintain measurement accuracy.

Selection Guide & Purchasing Advice

When ordering, confirm the total probe length (1.0 meter for this variant) and connector type. The 146054-08-10-01-00 is a non-armored probe with standard cable. For applications requiring higher pressure ratings or different cable lengths, contact the manufacturer. BluePLC Industrial offers this Bently Nevada probe new and in original factory packing with a 12-month warranty. Ensure compatibility with your existing 3300 XL system components for best performance.

Comparison with Similar Probes

Compared to standard 3300 probes without ceramic caps, the 146054-08-10-01-00 provides enhanced tip durability and better performance in high-temperature or debris-laden environments. Unlike armored probes, this version is lighter and more flexible, making it easier to route in tight spaces. The miniature coaxial ClickLoc connector offers a secure, quick-connect solution that reduces installation time compared to older connector types.
