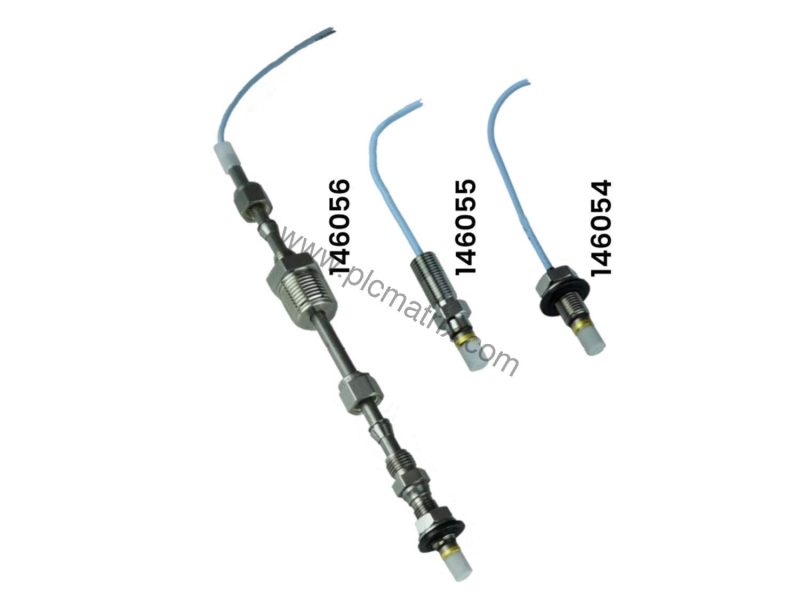

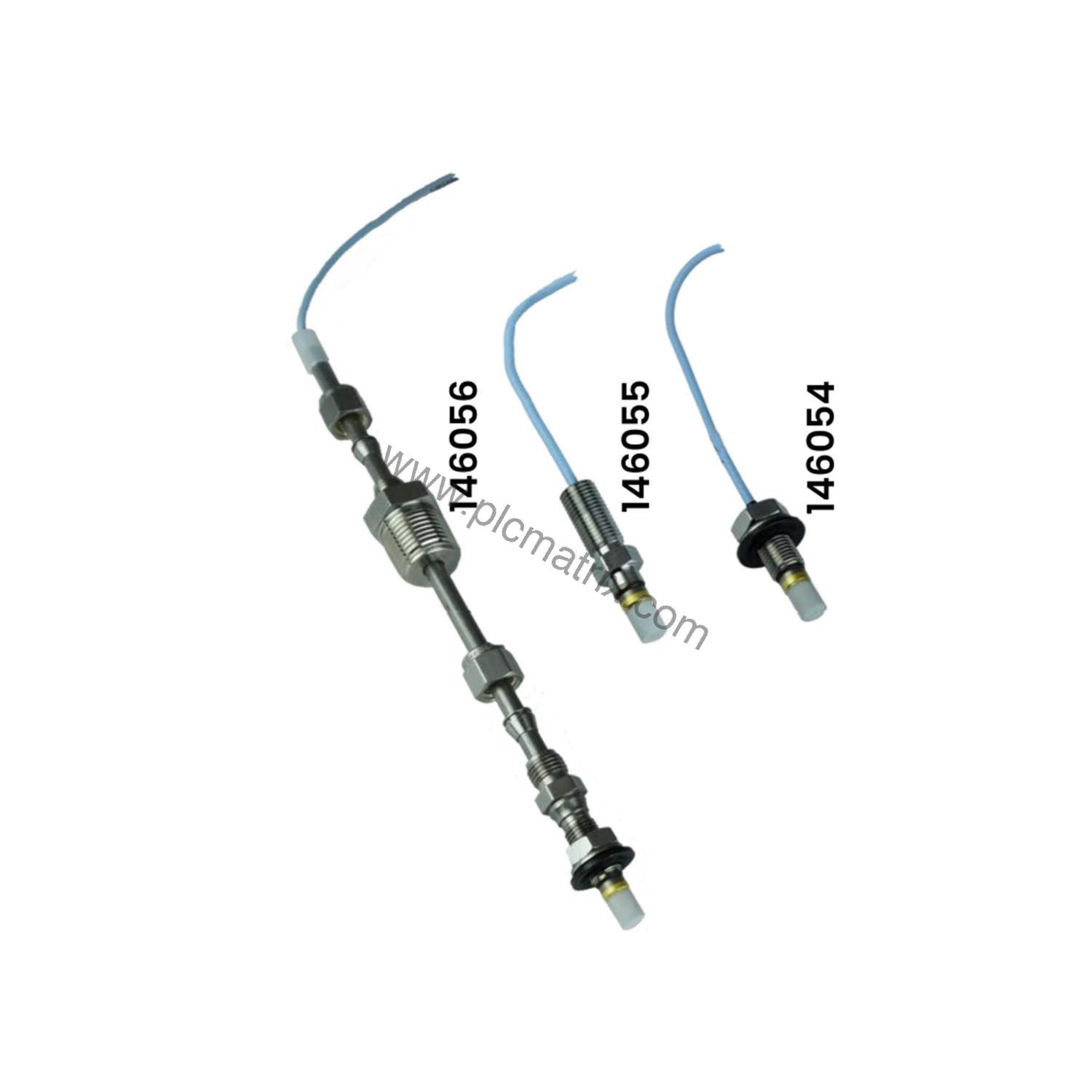

Bently Nevada 146054-08-10-00-00 3300 Ceramic Capped Proximity Probe

Introduction: Solving Vibration Monitoring Challenges in Harsh Environments

When rotating machinery operates under extreme temperatures or pressures, standard proximity probes often fail, leading to costly downtime. The Bently Nevada 146054-08-10-00-00 3300 Ceramic Capped Proximity Probe addresses this challenge directly. Designed for demanding industrial applications, this probe uses an alumina ceramic tip to withstand high temperatures while delivering precise shaft displacement measurements. As part of the trusted 3300 series, it provides the reliability that plant engineers depend on for continuous machine protection.

Technical Specifications Breakdown

The 146054-08-10-00-00 is configured with specific options to match application requirements. The overall case length is 0.8 inches (option -08), and the total probe length is 1.0 meter (3.3 feet) (option -10). It features a 3/8-24 UNF thread for mounting and comes without a connector (option 00). The probe case is made of AISI 304 stainless steel, ensuring corrosion resistance in harsh environments. The probe tip material is alumina ceramic (Al2O3), which provides excellent thermal stability and wear resistance. The probe is rated for operating and storage temperatures from -51°C to +177°C (-60°F to +351°F). It is pressure rated to seal 34 Bar (500 psi) nitrogen, with modifications available for higher-pressure applications. The standard cable is 75 ohm coaxial, fluoroethylene propylene (FEP) insulated, available in lengths of 0.5, 1, 2, 5, or 9 meters. The linear range is 1.52 mm (60 mils), starting at approximately 0.25 mm (10 mils) from the target. The incremental scale factor (ISF) is 7.87 V/mm (200 mV/mil) ±6.5% for a standard 5-meter or 9-meter system.

Industry Applications

In the power generation sector, the 146054-08-10-00-00 monitors turbine shaft vibration and thrust position, helping operators detect early signs of bearing wear or imbalance. Its ceramic cap and stainless steel case allow it to perform reliably near steam seals and hot bearing housings. In oil and gas facilities, this probe is used on compressors and pumps where high-temperature environments and potential exposure to nitrogen pressure are common. The 1.0 meter cable length provides flexibility for routing to junction boxes without signal degradation. By choosing the 146054-08-10-00-00, engineers reduce the risk of probe failure in critical rotating equipment, directly improving plant availability.

Installation & Setup Guidance

Proper installation is essential for accurate measurements. The 3/8-24 UNF thread allows secure mounting into standard probe holders. Ensure the probe tip is positioned within the linear range of 0.25 to 1.78 mm (10 to 70 mils) from the target surface. Use a non-magnetic feeler gauge or a calibrated shim to set the initial gap. The probe cable is 75 ohm coaxial with FEP insulation; avoid sharp bends or kinks during routing. For systems requiring agency approval, note that this configuration has option -00 (not required). Always verify that the target material matches AISI 4140 steel for system accuracy and interchangeability specifications. After installation, perform a static calibration check using a micrometer stage to confirm the output voltage corresponds to the expected gap.

Maintenance & Reliability

Routine inspection of the probe tip and cable is recommended. Check for any buildup of conductive debris or oil on the ceramic face, which can affect the gap measurement. The stainless steel case resists corrosion, but the cable jacket should be examined for cuts or abrasion, especially near connection points. The probe is designed for long service life in temperatures up to +177°C, but verify that ambient conditions do not exceed the specified range. For applications with high vibration or thermal cycling, periodic verification of the mounting thread torque is advised. By following these simple maintenance steps, users maximize the probe's reliability and reduce unplanned downtime.

Selection Guide & Purchasing Advice

When selecting the 146054-08-10-00-00, confirm that the overall case length (0.8 in) and total length (1.0 m) match your installation geometry. This probe does not include a connector, so plan for a suitable junction or direct termination. For applications requiring agency certifications, choose a different option code. BluePLC Industrial stocks this Bently Nevada probe as new and original in factory packing, backed by a 12-month factory warranty. Contact BluePLC Industrial to verify current lifecycle status and availability before ordering. Their team can also help match the probe with compatible Proximitor sensors and extension cables for a complete 3300 system.
