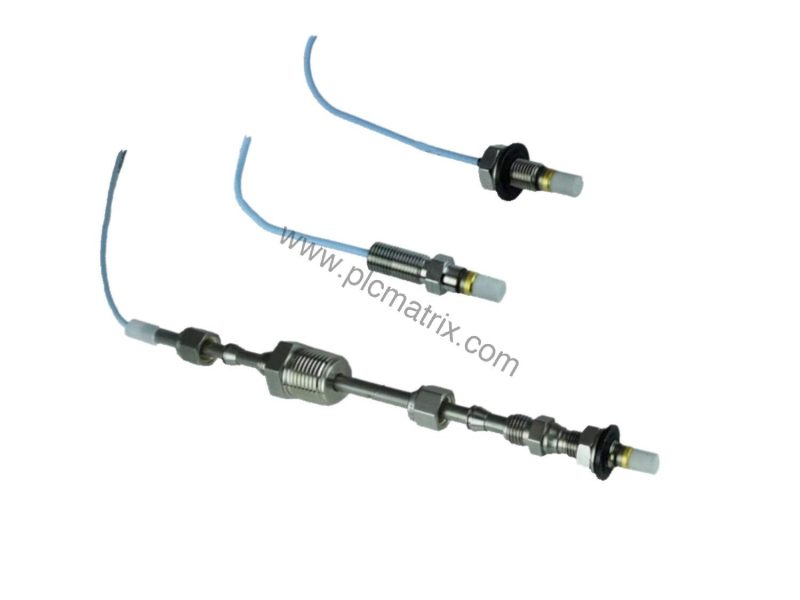

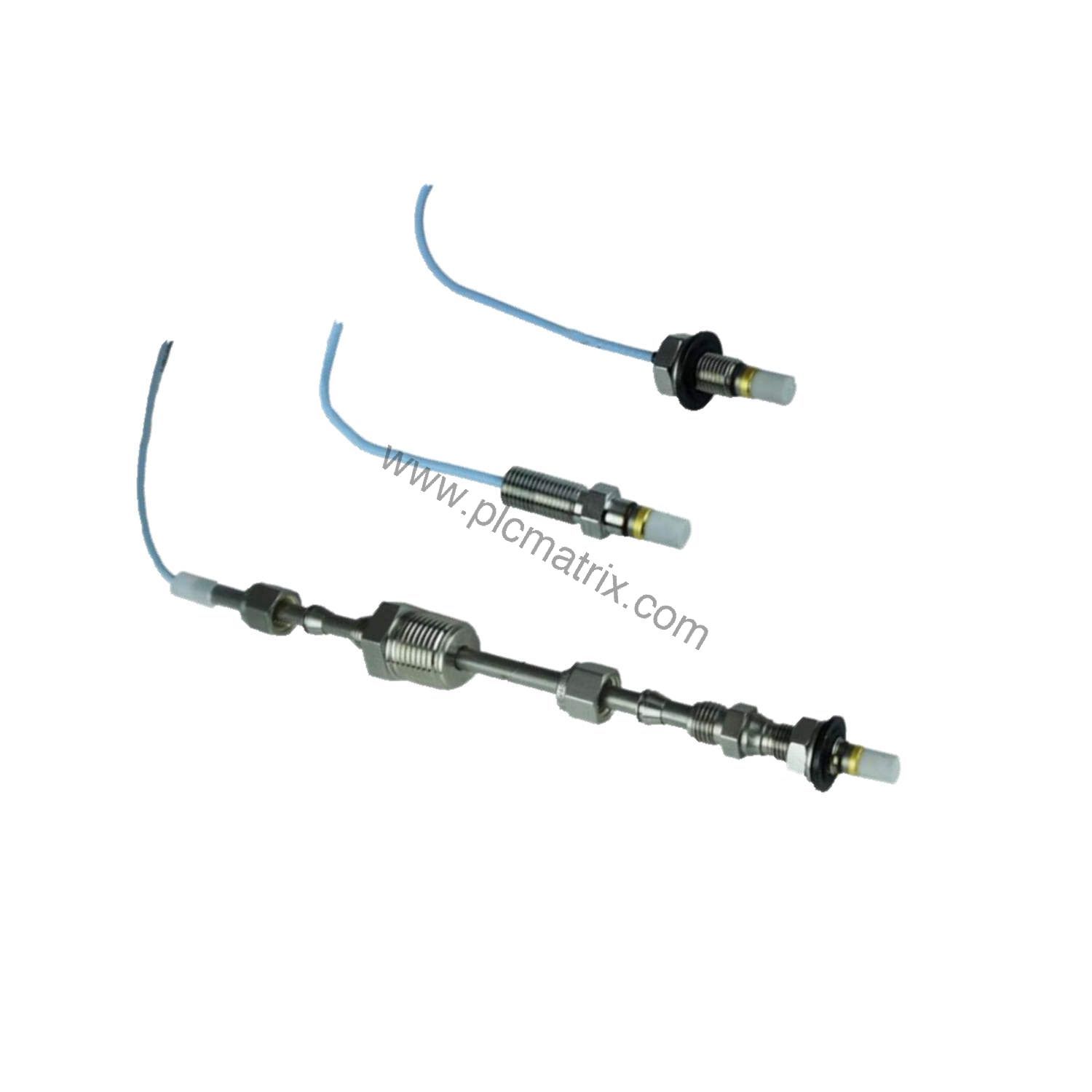

Bently Nevada 146054-08-10-00-00 3300 Ceramic Capped Proximity Probe

Introduction

When unplanned downtime threatens your rotating machinery, the Bently Nevada 146054-08-10-00-00 3300 Ceramic Capped Proximity Probe provides the precision measurement you need. This probe is part of the trusted 3300 series, designed for reliable shaft vibration and position monitoring in critical industrial applications.

Technical Specifications

The 146054-08-10-00-00 features a 3/8-24 UNF thread and a ceramic (Al2O3) probe tip for durability. Key specifications include:

Overall case length: 0.8 inches

Total length: 1.0 meter (3.3 feet)

Connector and cable-type option: No connector

Agency approval: Not required

Probe case material: AISI 304 stainless steel

Operating and storage temperature range: -51°C to +177°C (-60°F to +351°F)

Pressure rating: 34 Bar (500 psi) nitrogen

Linear range: 1.52 mm (60 mils), from 0.25 to 1.78 mm (10 to 70 mils)

Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±6.5%

These parameters ensure accurate and repeatable measurements in harsh environments.

Industry Applications

The 146054-08-10-00-00 excels in monitoring vibration and position of rotating shafts in turbines, compressors, pumps, and motors. Its ceramic tip withstands high temperatures and pressures, making it suitable for steam turbines and gas compressors. By providing early warning of shaft misalignment or bearing wear, this probe helps prevent catastrophic failures and reduces maintenance costs.

Installation & Setup Guidance

Mount the probe with the 3/8-24 UNF thread into a suitable mounting block. Ensure the probe tip is positioned within the linear range (0.25 to 1.78 mm from the target). Use the specified coaxial cable (75 Ω, FEP insulated) and maintain proper grounding. Calibrate the system with an AISI 4140 steel target for optimal accuracy.

Maintenance & Reliability

Inspect the probe cable and connector periodically for damage. Keep the probe tip clean and free of debris. The stainless steel case and ceramic tip resist corrosion and wear, extending service life. Follow manufacturer guidelines for routine checks to ensure consistent performance.

Selection Guide & Purchasing Advice

Before ordering the 146054-08-10-00-00, verify your system requirements: probe length (1.0 meter), thread size (3/8-24 UNF), and connector type (none). For complete technical specifications, contact BluePLC Industrial. We offer new, original products with a 12-month factory warranty and expert support.
