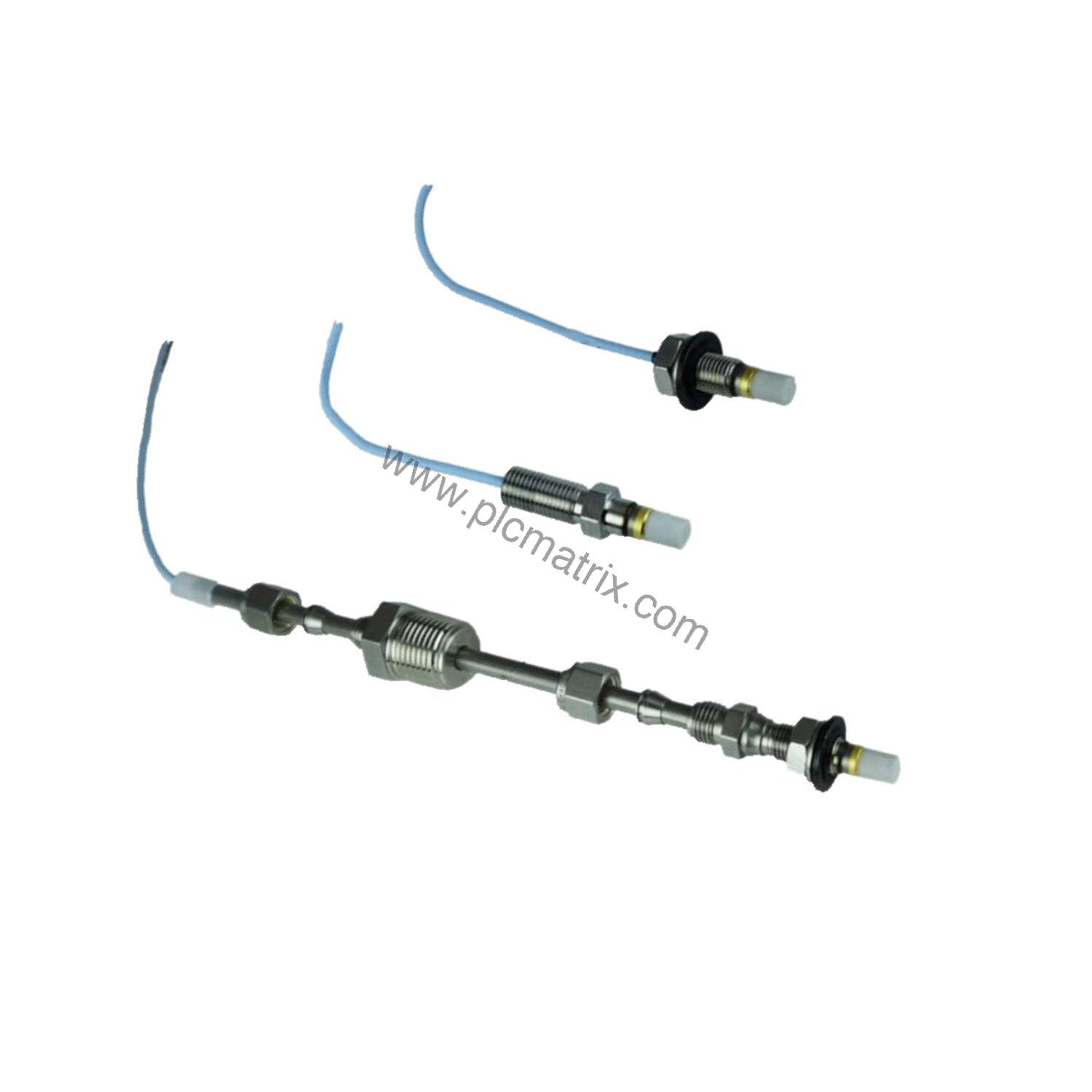

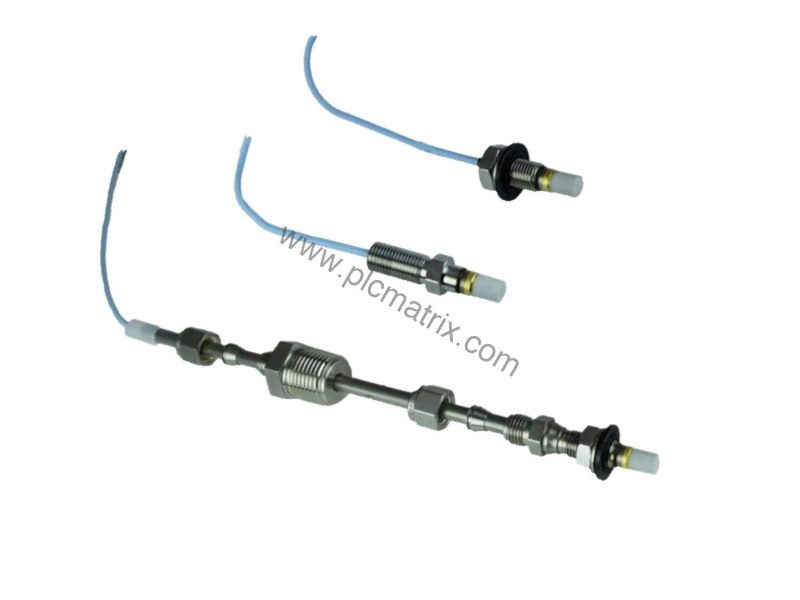

Bently Nevada 146054-08-05-01-05 3300 Ceramic Capped Proximity Probe

Product Introduction

When vibration monitoring in rotating machinery demands uncompromising accuracy and durability, the Bently Nevada 146054-08-05-01-05 delivers. This 3300 Ceramic Capped Proximity Probe is engineered for harsh industrial environments where reliable shaft displacement and position measurement are critical. Part of the trusted 3300 series, this probe features a 3/8-24 UNF thread design without armor, making it a direct choice for retrofit or new installations in turbines, compressors, and pumps. The 146054-08-05-01-05 combines proven Bently Nevada technology with robust ceramic tip construction to withstand high temperatures and pressures.

Technical Specifications Breakdown

The 146054-08-05-01-05 is configured with specific options that define its performance envelope. The overall case length option -08 indicates a 0.8 inch case, while the total length option -05 provides a 0.5 meter (1.6 feet) probe cable. This compact length is ideal for installations with limited clearance. The connector and cable-type option -01 uses a miniature coaxial ClickLoc connector with connector protector and standard cable, ensuring a secure and reliable signal connection. Agency approval option -05 certifies the probe for CSA, ATEX, and IECEx hazardous area use, allowing deployment in explosive atmospheres. The probe case thread is 3/8-24, and the probe tip material is alumina ceramic (Al2O3), offering excellent wear resistance and electrical insulation. The probe case material is AISI 304 stainless steel, providing corrosion resistance in demanding environments. The probe operates and stores within a temperature range of -51°C to +177°C (-60°F to +351°F) and is rated to seal 34 Bar (500 psi) nitrogen.

Industry Applications

This proximity probe excels in critical rotating machinery monitoring. In steam turbines, the 146054-08-05-01-05 provides precise shaft radial vibration and axial position measurements, enabling early detection of bearing wear or imbalance. For centrifugal compressors in oil and gas facilities, the ceramic capped probe withstands high-pressure environments and delivers reliable data for predictive maintenance programs. The ATEX and IECEx certifications make it suitable for Zone 1 and Zone 2 hazardous areas, common in petrochemical plants. By integrating this probe into a Bently Nevada monitoring system, engineers gain actionable insights to extend equipment life and reduce unplanned downtime.

Installation & Setup Guidance

Mount the 146054-08-05-01-05 using the 3/8-24 UNF threaded case into a properly tapped hole in the machine casing. Ensure the probe tip is positioned within the linear range of 0.25 mm to 1.78 mm (10 to 70 mils) from the target surface for optimal performance. The probe cable should be routed away from high-voltage sources and sharp edges to prevent damage. Use the miniature coaxial ClickLoc connector to attach the extension cable, ensuring a firm click is heard to confirm proper engagement. For systems requiring extended cable runs, Bently Nevada offers compatible extension cables in lengths up to 9 meters. Always verify the target material is AISI 4140 steel to maintain system accuracy and interchangeability specifications.

Maintenance & Reliability

Regular inspection of the probe tip and cable is recommended to ensure long-term reliability. Check for any signs of physical damage, contamination, or corrosion on the ceramic tip and stainless steel case. The probe's robust design, with alumina ceramic tip and stainless steel construction, minimizes wear in high-vibration environments. Given its temperature rating of -51°C to +177°C, the 146054-08-05-01-05 can be deployed in both cryogenic and high-heat applications without performance degradation. For optimal reliability, follow the manufacturer's guidelines for periodic system calibration and verification. The 12-month factory warranty provides additional assurance of quality.

Selection Guide & Purchasing Advice

When selecting the 146054-08-05-01-05, verify that the total probe length of 0.5 meter (1.6 feet) suits your installation geometry. Confirm the agency approval requirements for your site; this unit includes CSA, ATEX, and IECEx certifications. Ensure the target material matches the AISI 4140 steel standard for accurate measurements. For applications requiring higher pressure ratings, contact Bently Nevada's custom design department. BluePLC Industrial offers this probe as a new, original factory-packed unit with full warranty. Contact BluePLC Industrial for current lifecycle status and availability before ordering. For complete technical specifications, please contact BluePLC Industrial.
