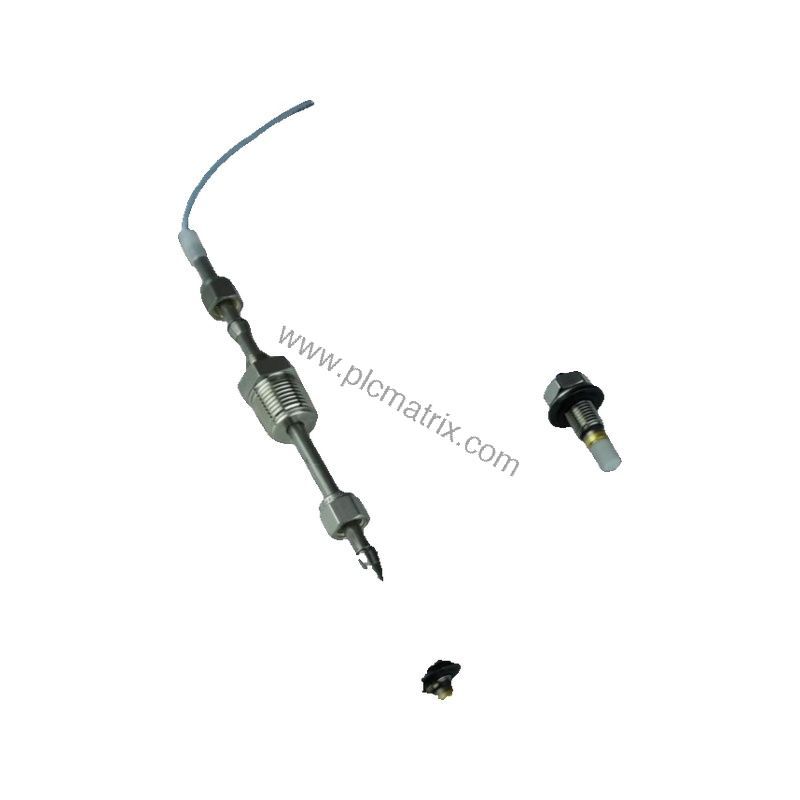

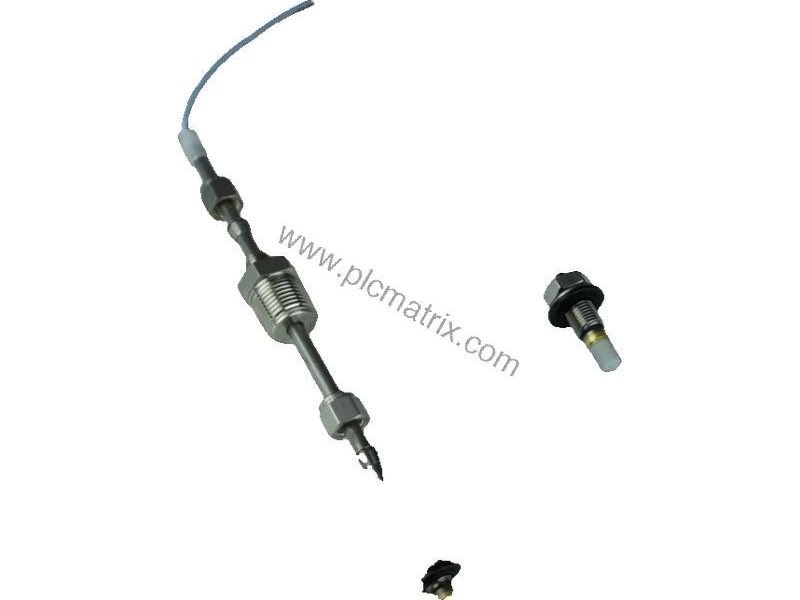

Bently Nevada 146054-08-05-01-00 3300 Ceramic Capped Proximity Probe

Product Introduction

When unplanned downtime strikes rotating machinery, the cost of lost production and emergency repairs can skyrocket. The Bently Nevada 146054-08-05-01-00 3300 Ceramic Capped Proximity Probe provides precise, non-contact vibration and position measurements that help you avoid those failures. Part of the trusted 3300 series, this probe delivers the accuracy and durability needed for continuous monitoring in harsh industrial environments.

Technical Specifications Breakdown

The 146054-08-05-01-00 features a 3/8-24 UNF thread case without armor, with an overall case length of 0.8 inches and a maximum thread engagement of 0.563 inches. The total probe length is 0.5 meters (1.6 feet), and it uses a miniature coaxial ClickLoc connector with connector protector and standard cable. This probe is designed for 0.5, 1, 2, 5, or 9 meter cable lengths, offering flexibility to match your installation layout. The nominal DC resistance from center conductor to outer conductor is 7.45 ± 0.50 ohms, ensuring consistent signal transmission. With a linear range of 1.52 mm (60 mils) starting at 0.25 mm from the target, and an incremental scale factor of 7.87 V/mm (200 mV/mil) ±6.5%, this system provides reliable data for early fault detection. The probe operates from -51°C to +177°C and is rated to seal 34 Bar (500 psi) nitrogen, making it suitable for demanding applications. These specs translate directly to reduced false alarms and fewer costly shutdowns.

Industry Applications

In petrochemical plants, the 146054-08-05-01-00 monitors compressor shaft vibration to prevent catastrophic bearing failures. In power generation, it tracks turbine rotor position, enabling predictive maintenance that avoids expensive overhauls. For steel mills, this probe measures roll eccentricity, minimizing product waste and extending equipment life. In each case, the ceramic-capped tip resists wear and contamination, lowering total cost of ownership.

Installation & Setup Guidance

Proper installation is key to maximizing the probe's performance and ROI. Mount the probe with the 3/8-24 UNF thread into a rigid bracket, ensuring the target surface is clean and made of AISI 4140 steel for best accuracy. Use the 0.5 meter cable length as specified, and connect via the miniature coaxial ClickLoc connector. Verify the gap within the linear range of 0.25 to 1.78 mm from the target. Calibrate the system with a -24 Vdc power supply and 10 kΩ load as per the manual. Following these steps minimizes installation errors and avoids costly rework.

Maintenance & Reliability

The ceramic-capped probe tip resists abrasion and chemical attack, reducing replacement frequency. The stainless steel case (AISI 304) withstands corrosive environments. With a temperature range of -51°C to +177°C, the probe handles extreme conditions without drift. Regular inspection of the cable and connector for damage ensures long-term reliability. By choosing the 146054-08-05-01-00, you invest in a component that delivers lower lifecycle costs through extended service intervals.

Selection Guide & Purchasing Advice

Before ordering, verify that the 146054-08-05-01-00 matches your system requirements: 3/8-24 UNF thread, 0.5 meter cable, and no agency approval needed. This probe is designed for use with Bently Nevada 3300 Proximitor sensors and extension cables. For complete technical specifications, please contact BluePLC Industrial. We stock new, original factory-packed units with a 12-month warranty, ensuring you get genuine parts that protect your machinery investment.
