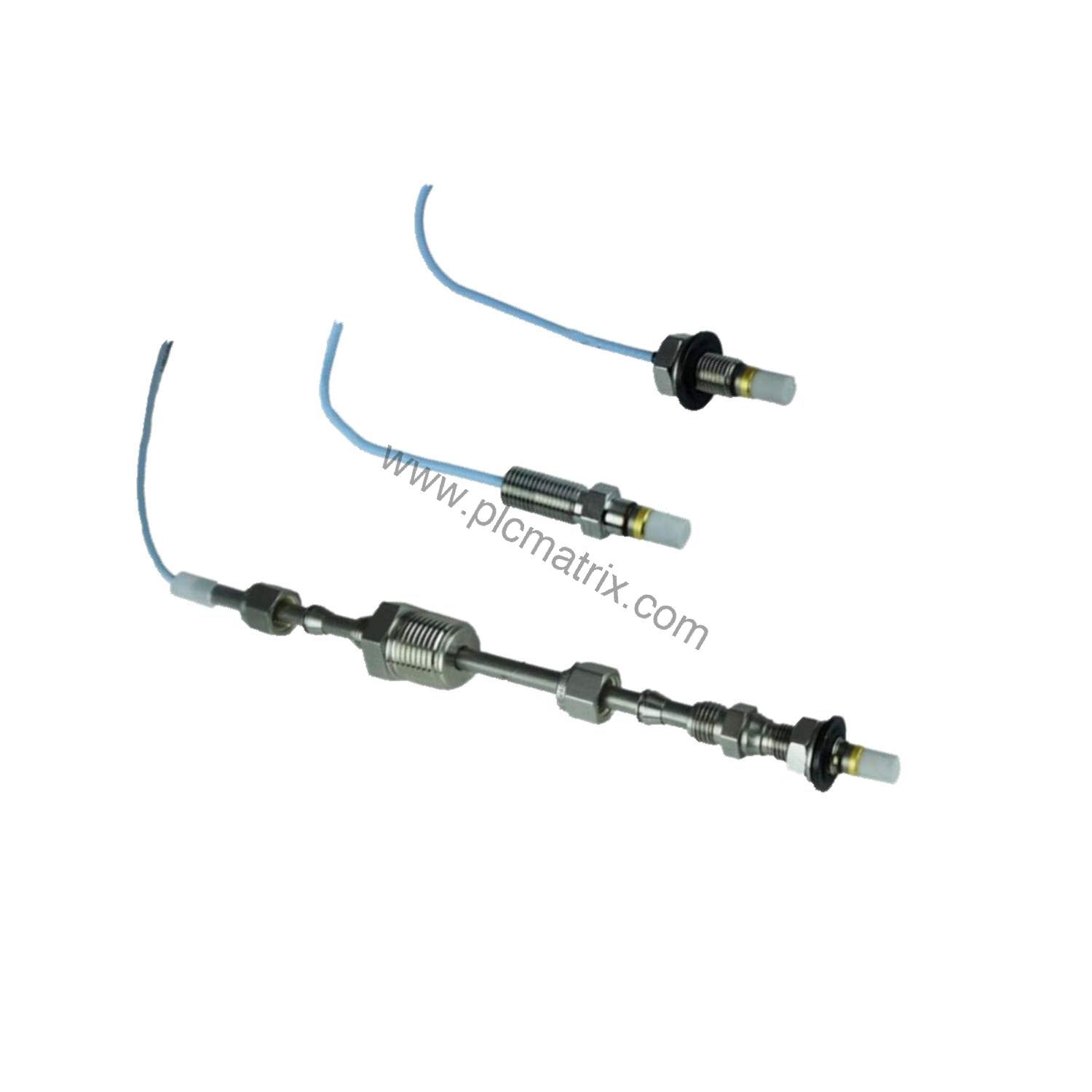

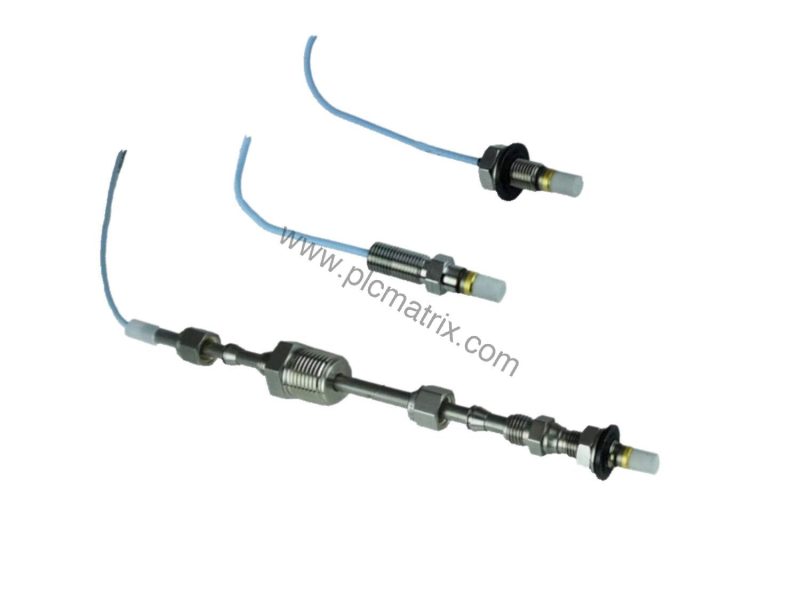

Bently Nevada 146054-036-50-02-05 3300 Ceramic Capped Proximity Probe

Product Overview

When unplanned downtime threatens rotating machinery, the Bently Nevada 146054-036-50-02-05 3300 Ceramic Capped Proximity Probe delivers precise shaft vibration and position measurements. This non-contact sensor is part of the trusted 3300 series, designed for harsh industrial environments. With a 5.0-meter cable and miniature coaxial ClickLoc connector, it ensures reliable signal transmission for critical asset protection.

Technical Specifications

The 146054-036-50-02-05 features a 3/8-24 UNF thread case without armor. Key specifications include:

Overall Case Length: 3.6 inches (option -036)

Total Length: 5.0 meters (16.4 feet)

Probe Case Thread: 3/8-24

Maximum Thread Engagement: 0.563 inches

Probe Tip Material: Alumina ceramic (Al2O3)

Probe Case Material: AISI 304 stainless steel

Operating Temperature Range: -51°C to +177°C (-60°F to +351°F)

Pressure Rating: 34 Bar (500 psi) nitrogen

This probe is designed for use with a 5-meter Proximitor sensor only. The miniature coaxial ClickLoc connector and standard cable provide easy installation and secure connections.

Industry Applications

The 146054-036-50-02-05 excels in monitoring vibration and position of turbine shafts, compressors, and large pumps. Its ceramic tip resists wear in high-temperature environments up to 177°C. Compared to standard proximity probes, the ceramic cap offers superior durability in abrasive conditions, reducing replacement frequency and maintenance costs. This makes it a cost-effective choice for continuous process industries like oil and gas, power generation, and petrochemicals.

Installation & Setup Guidance

Proper installation ensures accurate measurements. Mount the probe with the 3/8-24 thread into a rigid bracket or housing, ensuring the tip faces the target surface. Maintain the specified gap within the linear range (0.25 to 1.78 mm from target). Use the included miniature coaxial ClickLoc connector for a secure cable attachment. Avoid sharp bends in the cable to prevent signal degradation. Always verify that the target material matches AISI 4140 steel for system accuracy.

Maintenance & Reliability

The 146054-036-50-02-05 requires minimal maintenance due to its robust stainless steel case and ceramic tip. Periodically inspect the cable and connector for damage. Clean the probe tip gently with a soft cloth if debris accumulates. Operating within the specified temperature and pressure ranges ensures long service life. With a 12-month factory warranty from Bently Nevada, this probe delivers reliable performance for years.

Selection Guide & Purchasing Advice

When selecting the 146054-036-50-02-05, verify the total length (5.0 m) matches your installation distance. The probe is available in lengths of 0.5, 1, 2, 5, or 9 meters. Ensure your Proximitor sensor is compatible with the 5-meter probe. For applications requiring higher pressure ratings, contact our custom design department. BluePLC Industrial stocks this model new and in original factory packing, ready for immediate shipment.

For complete technical specifications for the 146054-036-50-02-05, please contact BluePLC Industrial.
