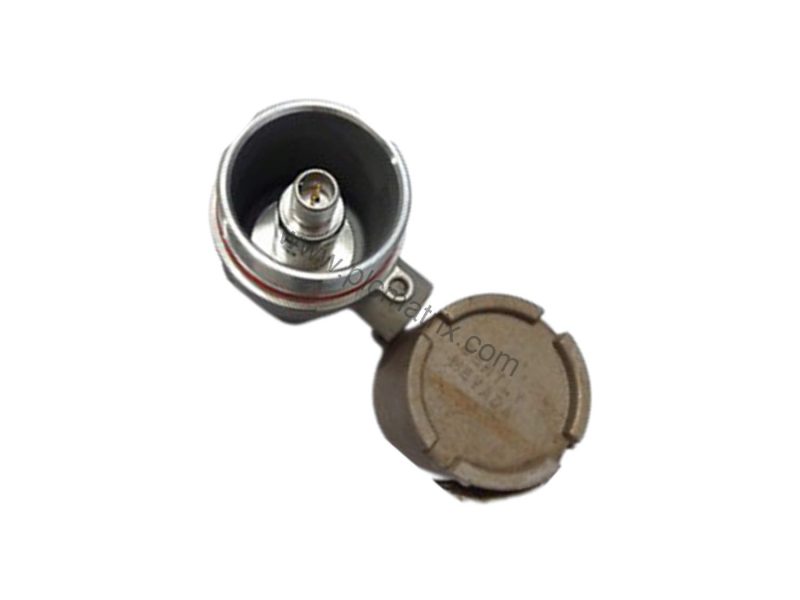

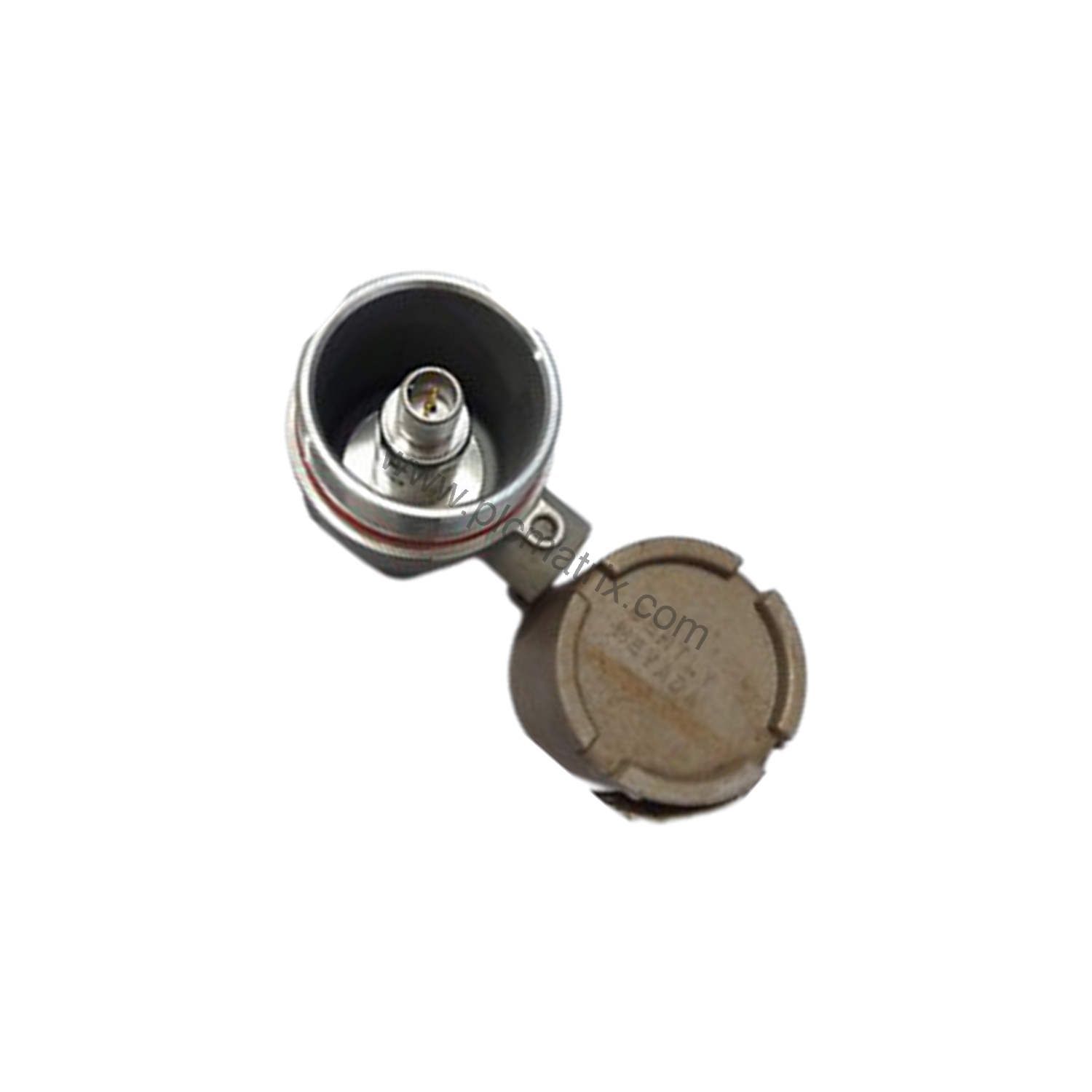

Bently Nevada 107770-04-01 Velocity Transducer Housing – CENELEC Approved

Product Introduction

When machinery vibration threatens uptime in hazardous environments, the Bently Nevada 107770-04-01 provides a robust solution. This velocity transducer housing, CENELEC approved, integrates a 330500 Velomitor Sensor with a 21128 Housing in a factory-preassembled unit. Designed for continuous monitoring in Zone 1, Group IIC areas, it delivers reliable vibration data for predictive maintenance programs. As a maintenance engineer, you need components that simplify installation and withstand harsh conditions—this model delivers exactly that.

Technical Specifications Breakdown

The 107770-04-01 features a 1/2-14 BSP mounting thread option (code 04), ensuring secure attachment to machinery casings. The cable exit fitting uses a 1/2-14 NPT plug (code 01), providing a sealed connection for hazardous area compliance. Rated for CENELEC Zone 1, Group IIC, it meets strict safety standards for explosive atmospheres. The unit is RoHS compliant per Directive 2011/65/EU, reducing environmental impact. These specs directly support reliable vibration sensing in demanding industrial settings.

Industry Applications

In petrochemical plants, the 107770-04-01 monitors pumps and compressors for early signs of bearing wear or imbalance. Its CENELEC approval makes it ideal for refineries where flammable gases are present. Similarly, in gas processing facilities, the transducer housing provides continuous velocity data, enabling condition-based maintenance that reduces unplanned downtime. The pre-assembled design cuts field installation time, a key advantage for maintenance teams.

Installation & Setup Guidance

Mount the 107770-04-01 using the 1/2-14 BSP thread directly into a tapped hole on the machine casing. Ensure the mating surface is clean and flat for optimal vibration transfer. The 1/2-14 NPT cable exit plug accepts conduit or cable glands rated for hazardous areas. For Zone 0/1 installations, connect only to equipment meeting the entity parameters specified in the safety documentation. Use cable type A or B per EN 60079-25 to maintain intrinsic safety. Always verify the mounting torque per manufacturer guidelines to avoid resonance issues.

Maintenance & Reliability

From a maintenance perspective, the 107770-04-01 offers long-term reliability with minimal intervention. Periodically inspect the housing for corrosion or physical damage, especially in corrosive atmospheres. Check cable connections for tightness and signs of wear. The sealed design reduces contamination risk, but annual verification of sensor output against a known reference ensures accuracy. Since the unit is pre-assembled, field repairs are rare—replace the entire assembly if performance degrades. This approach minimizes downtime and aligns with cost-effective predictive maintenance strategies.

Selection Guide & Purchasing Advice

Before ordering, confirm that your application requires the 1/2-14 BSP mounting thread and 1/2-14 NPT cable exit. The 107770-04-01 is a specialized assembly for hazardous areas; verify your zone classification matches CENELEC Zone 1, Group IIC. For other thread options, consult the full 107770 series. BluePLC Industrial stocks this unit as new and original in factory packing, backed by a 12-month warranty. Contact them to confirm availability and lead times for your project.
