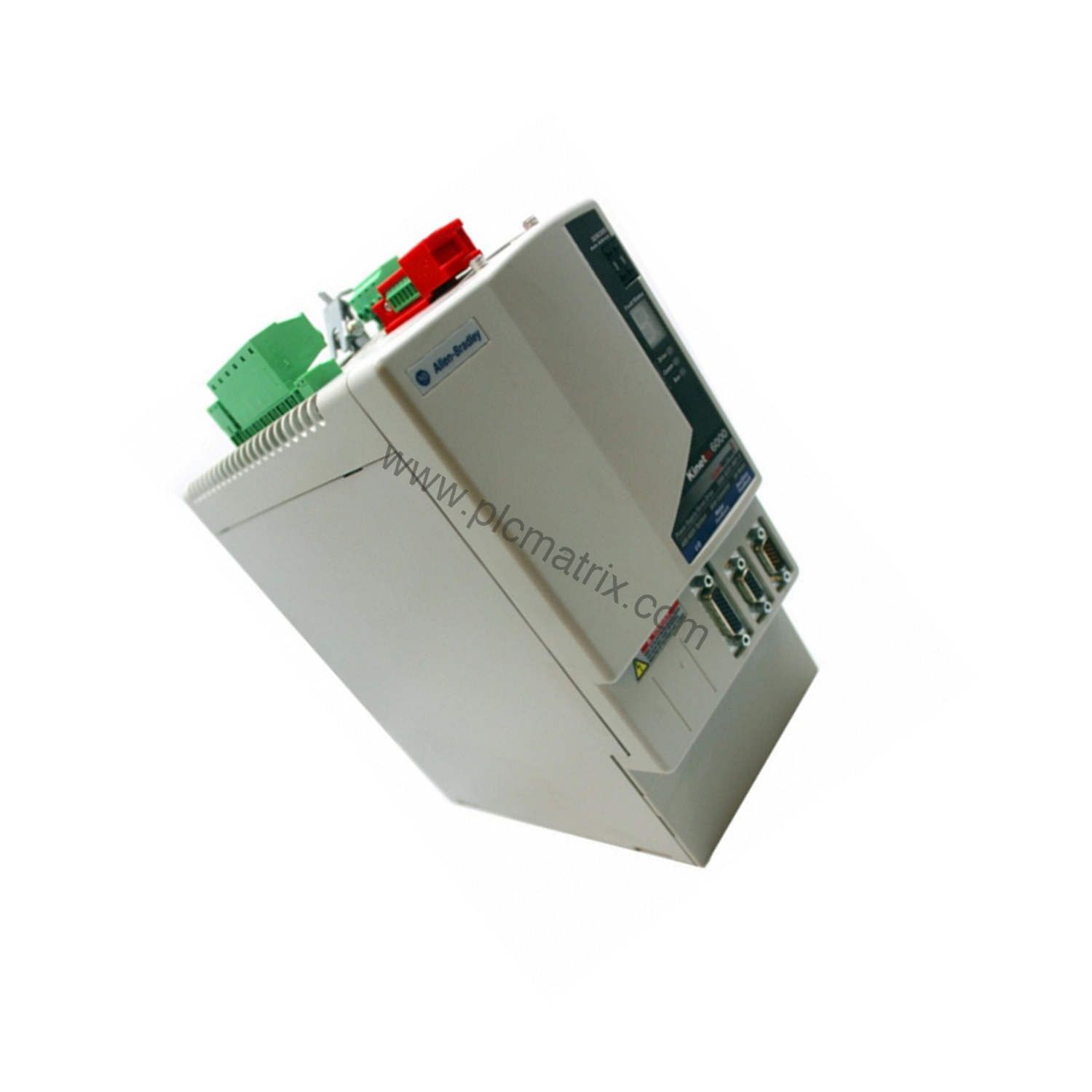

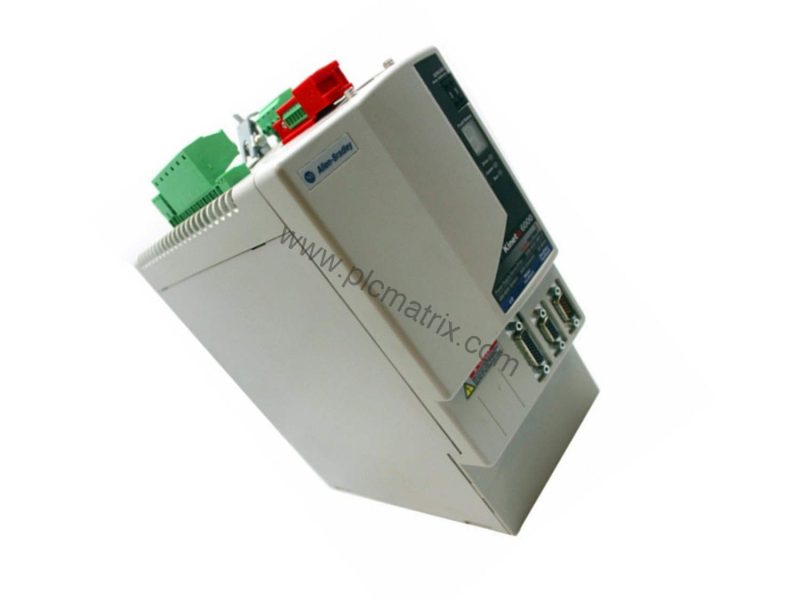

Allen-Bradley 2094-BMP5-M Kinetix 6200 Axis Module Overview

Product Introduction

When multi-axis motion control demands precision and reliability, the Allen-Bradley 2094-BMP5-M from the Kinetix 6200 family delivers. This Axis Module is designed for 400V class systems, providing integrated motion capabilities for demanding industrial automation tasks. As a core component of Rockwell Automation's servo drive lineup, it combines high performance with embedded safety features to protect personnel and equipment.

Technical Specifications Breakdown

The 2094-BMP5-M operates with a DC bus input voltage of 650 VDC and a control input voltage of 95-264 VAC, 1-phase. It delivers a continuous output current (rms) of 2.8 Amperes and 4.0 Amperes (0-pk), with peak currents of 7.0 Amperes (rms) and 9.9 Amperes (0-pk). The output voltage ranges from 0 to 480 VAC, 3-phase, with an output frequency of 0-800 Hz. Continuous output power is rated at 1.8 kW, and the module can handle a maximum short circuit current of 200,000 Amperes. The velocity loop operates at 500 Hz, while the current loop runs at 1300 Hz, ensuring responsive control.

Industry Applications

This axis module excels in packaging, material handling, and converting machinery where precise speed and position control are critical. Its high peak current capability supports rapid acceleration and deceleration, reducing cycle times. The integrated Safe Speed Monitor and Safe Torque Off functions allow maintenance tasks without full system shutdown, improving overall equipment effectiveness (OEE) in high-volume production lines.

Installation & Setup Guidance

Mount the 2094-BMP5-M in a clean, dry enclosure with adequate airflow. Use the provided 3-pin phoenix-style connector for motor power (U, V, W, ground) and the 6-pin connector for motor brake, input power, and dynamic braking. Ensure the control input voltage is within 95-264 VAC, 1-phase. The front panel LED indicates power status. For SERCOS interface integration, install the SERCON control interface module as required.

Maintenance & Reliability

Routine inspection of the 2094-BMP5-M should focus on verifying proper ventilation and checking for loose connections. The module's internal shunt resistor (115 Ohms) and capacitive energy absorption (10 Joules) help manage regenerative energy. With a rated efficiency of 98%, this drive minimizes energy loss. Follow manufacturer guidelines for periodic testing of safety functions to maintain compliance and uptime.

Compatible Systems

The 2094-BMP5-M integrates with Kinetix 6200 control modules and IAM power modules. It supports SERCOS interface for real-time communication and is compatible with Kinetix 6000 drives for easy migration. The embedded safety features reduce external wiring, simplifying system design. For complete technical specifications, please contact BluePLC Industrial.
