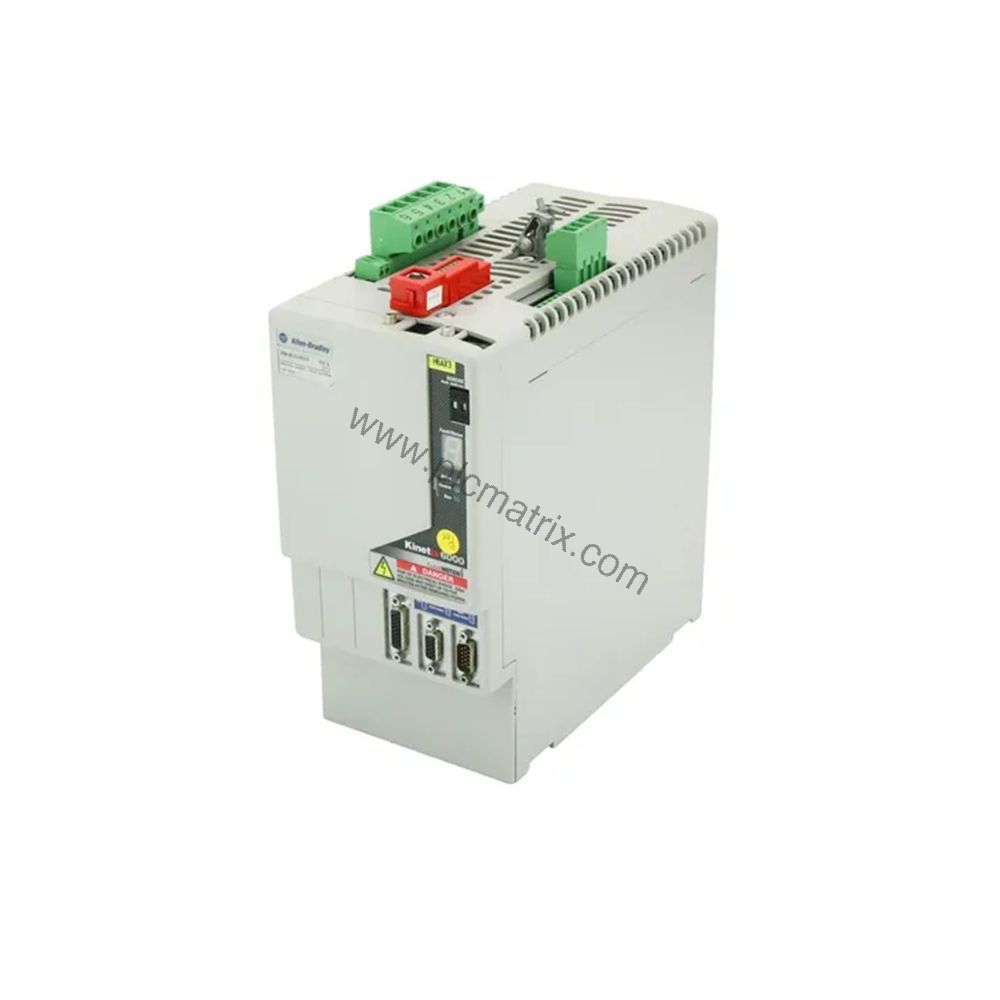

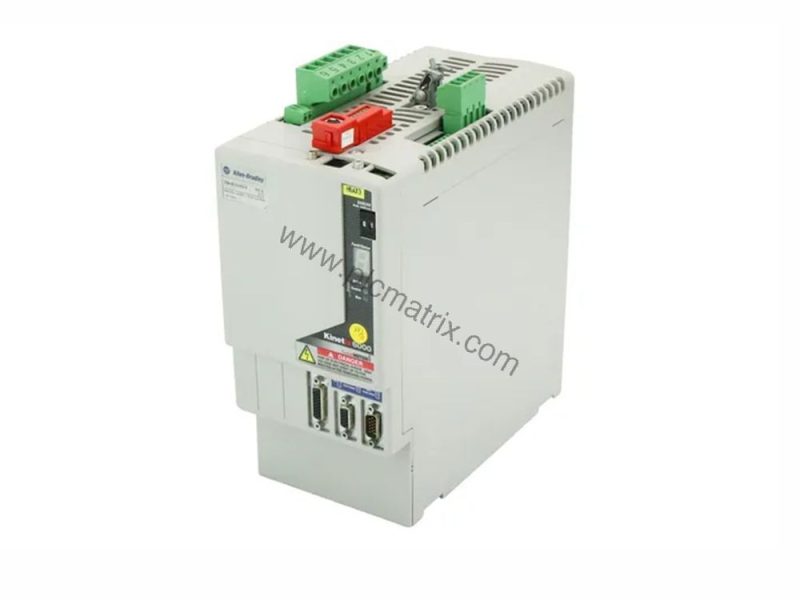

Allen-Bradley 2094-BMP5-M Kinetix 6200 Axis Module Buyer's Guide

Product Overview

When your motion control system demands precision and reliability, the Allen-Bradley 2094-BMP5-M delivers. This Axis Module belongs to the Kinetix 6200 family, designed for multi-axis servo drive applications. It provides integrated motion capability through the Serial Real-Time Communication System (SERCOS) interface, making it a versatile choice for complex automation tasks. The 2094-BMP5-M handles high-power requirements with a 460 Volt AC three-phase input and a continuous output power of 1.8 kW.

Technical Specifications

Understanding the key parameters helps you evaluate if this module fits your system. The 2094-BMP5-M operates with a DC bus input voltage of 650 VDC and a control input voltage of 95-264 VAC, 1-phase. It delivers an output voltage of 0-480 VAC, 3-phase, with an output frequency range of 0-800 Hz. The continuous output current is 2.8 Amperes (rms) and 4.0 Amperes (0-pk). For peak demands, it provides 7.0 Amperes (rms) and 9.9 Amperes (0-pk). The module also features a velocity loop frequency of 500 Hz and a current loop frequency of 1300 Hz. Its maximum short circuit current rating is 200,000 Amperes, ensuring robust protection.

Industry Applications

This axis module excels in applications requiring precise speed and position control. Common uses include packaging machinery, material handling systems, and assembly lines. For instance, in a high-speed packaging line, the 2094-BMP5-M's 0-800 Hz output frequency allows rapid acceleration and deceleration, improving throughput. Its integrated safety features, such as Safe Torque Off and Safe Speed Monitor, enhance operator protection without external wiring. This makes it ideal for environments where safety and productivity must coexist.

Installation & Setup Guidance

Proper installation ensures optimal performance. The 2094-BMP5-M mounts easily in a cabinet using its compact dimensions of 5.5 x 11.9 x 14.7 inches and weighs 13.0 lbs (5.90 kg). It includes a motor cable shield clamp and a 3-pin phoenix-style motor power connector labeled U, V, W, and ground. A 6-pin phoenix-style connector handles motor brake, input power, and dynamic braking unit connections. Always verify that the control input voltage matches your facility's supply (95-264 VAC, 1-phase). For best results, follow the manufacturer's wiring guidelines and use appropriate cable shielding to reduce electromagnetic interference.

Maintenance & Reliability

Routine maintenance extends the life of the 2094-BMP5-M. Inspect the module periodically for dust buildup on the heatsink and ensure adequate airflow around the unit. The operating temperature range is 32-122 F (0-50 C), so verify that your cabinet ventilation keeps the ambient temperature within this limit. Check all connectors for tightness and signs of corrosion. The module's 98% rated efficiency means less heat generation, reducing thermal stress on components. By following these simple steps, you minimize downtime and maximize return on investment.

Selection Guide & Purchasing Advice

Before purchasing the 2094-BMP5-M, confirm compatibility with your existing system. This module requires a compatible control module and an IAM power module from the Kinetix 6200 family. It works with Kinetix 6000 servo drives for easy migration. Verify your motor's voltage and current requirements against the module's output specifications. For current availability and lifecycle status, contact BluePLC Industrial. They can help you verify stock, suggest alternatives if needed, and ensure you get the right part for your application. Trust BluePLC Industrial for reliable sourcing and expert support.

For complete technical specifications for the 2094-BMP5-M, please contact BluePLC Industrial.
