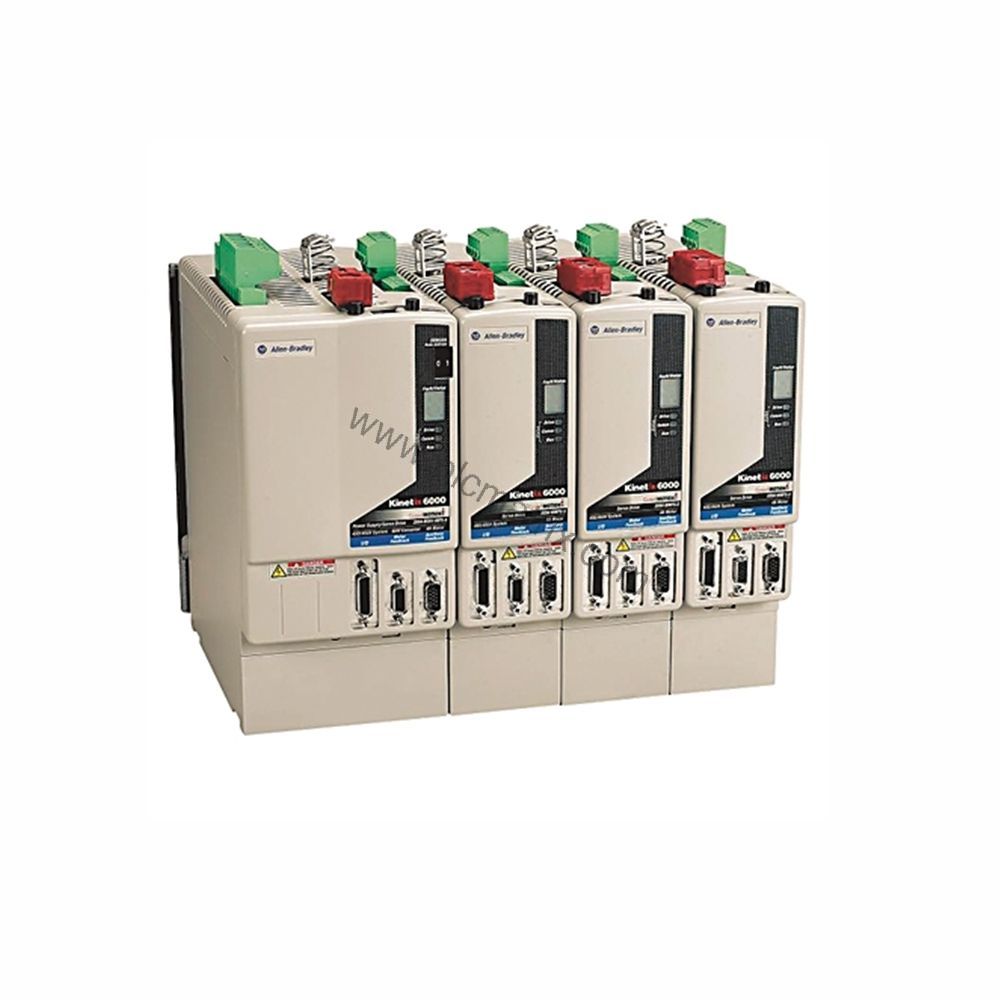

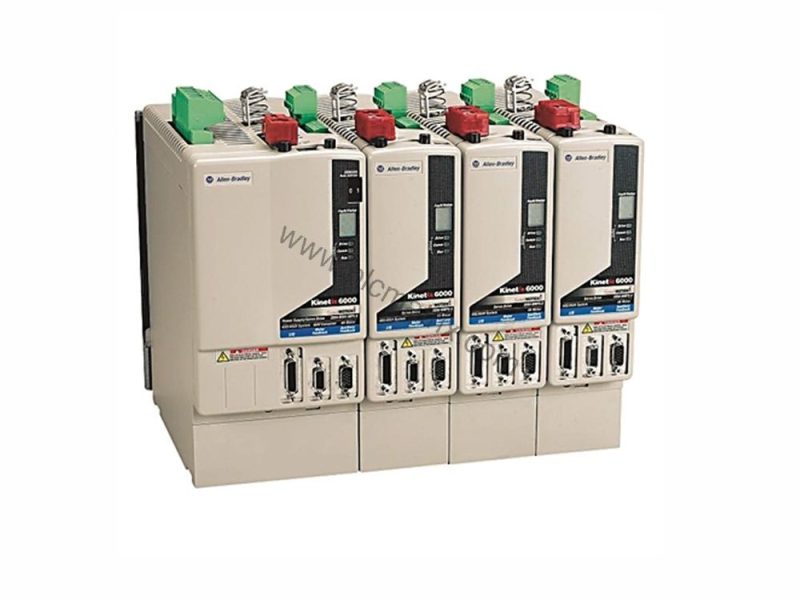

Allen-Bradley 2094-BC07-M05-S Integrated Axis Module Overview

Product Introduction

When high-performance multi-axis motion control demands reliability and efficiency, the Allen-Bradley 2094-BC07-M05-S Integrated Axis Module delivers. Part of the Kinetix 6000 drive family from Rockwell Automation, this 400 Volt class module provides continuous power output to bus of 45 kW and continuous output current to bus of 67.7 A. Designed for the leftmost position on the power rail, it integrates Safe Torque-off functionality for enhanced safety. With a cost-analysis perspective, this module reduces system complexity by combining axis control and power conversion, lowering total installed cost compared to separate components.

Technical Specifications Breakdown

The 2094-BC07-M05-S operates on AC input voltage from 324 to 528 V rms three-phase (360 to 480 V nominal) at 47 to 63 Hz. This wide input range ensures stable operation across varying line conditions, minimizing downtime and protecting downstream equipment. The DC input voltage for common bus follower mode spans 458 to 747 V DC, enabling flexible system configurations that can reduce energy costs by sharing a common DC bus. Control power requires 95 to 264 V rms single-phase (110 to 240 V rms nominal), with cycling limited to 2 cycles per minute at 90% on-time duty cycle—a design that extends component life and lowers maintenance expenses.

Peak output current to bus reaches 135.4 A for Series A and 203.2 A for Series B, while peak power output is 90 kW for Series A and 135 kW for Series B. These peak capabilities allow the module to handle demanding transient loads without oversizing, directly improving system cost efficiency. The module achieves 97% efficiency, reducing energy waste and cooling requirements over the product lifecycle. Power dissipation ranges from 71 to 226 Watts, depending on load, contributing to predictable thermal management costs.

Industry Applications

In packaging machinery, the 2094-BC07-M05-S powers synchronized multi-axis motion for high-speed wrapping, filling, and labeling. Its 45 kW continuous power output supports multiple servo axes, reducing the number of drives needed and cutting capital expenditure. In material handling systems, the module's common bus follower capability allows regenerative energy sharing between axes, lowering overall energy consumption by up to 30% in cyclic applications. For machine tool spindles and rotary tables, the peak power output of 90 kW (Series A) or 135 kW (Series B) handles aggressive acceleration profiles, improving throughput without increasing drive count—a direct ROI benefit.

Installation & Setup Guidance

Mount the 2094-BC07-M05-S on the leftmost side of the Kinetix 6000 power rail using the provided mounting hardware. Ensure adequate clearance for airflow, as the module dissipates up to 226 Watts. For control input power, use a Bussmann FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) fuse; for DC bus power, use a Bussmann FWJ-125A or Mersen A70QS125-4 fuse. The FNQ-R-7.5 is recommended when continuous control power current exceeds 3.0 A due to its high single-cycle inrush capability. Connect AC input power (324-528 V rms three-phase) to the designated terminals, and set the control power to 95-264 V rms single-phase. Verify that the module's series (A, B, or C) matches your application's overload requirements—Series A offers standard overload, while Series B and C support standard or peak enhanced modes for increased peak current performance.

Maintenance & Reliability

Regular inspection of the 2094-BC07-M05-S focuses on verifying proper operation of the Safe Torque-off feature and checking for error codes on the drive display. The module's 97% efficiency reduces thermal stress on internal components, extending service life and lowering total cost of ownership. Operate within the ambient temperature range of 0 to 50 °C (32 to 122 °F) to maintain reliability. Non-operating storage from -40 to 70 °C ensures long shelf life. The internal shunt resistor (28.75 Ohms) handles regenerative energy, protecting the DC bus and reducing external braking resistor costs. For peak enhanced mode activation, follow Rockwell Automation guidelines to avoid exceeding the module's thermal limits—this preserves warranty and minimizes unplanned downtime.

Selection Guide & Purchasing Advice

Before purchasing the 2094-BC07-M05-S, verify your system's voltage class (400 Volt) and required peak current profile. Choose Series A for standard overload applications, or Series B/C if peak enhanced mode (200% peak inverter current) is needed. Confirm compatibility with your existing Kinetix 6000 power rail and control system. BluePLC Industrial stocks this module and can advise on series variants and fuse recommendations. For complete technical specifications, contact BluePLC Industrial to ensure the 2094-BC07-M05-S meets your motion control requirements while optimizing system cost.
