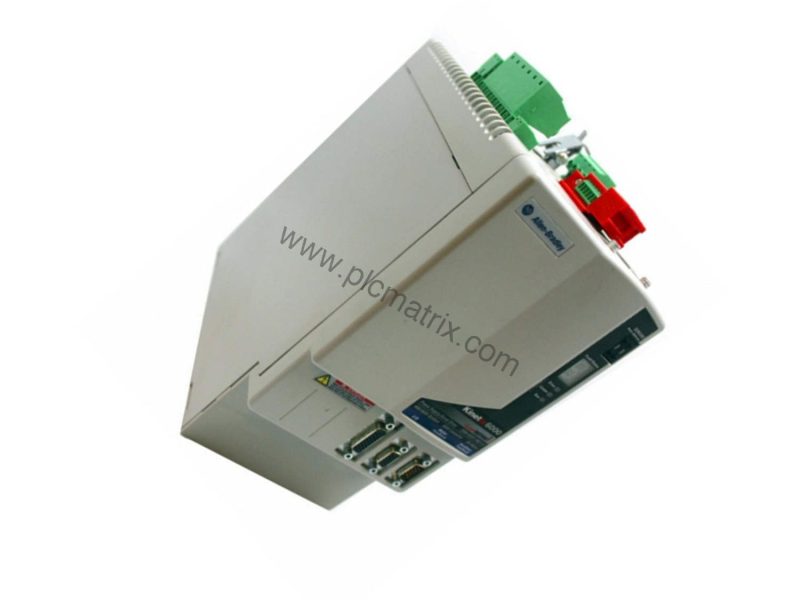

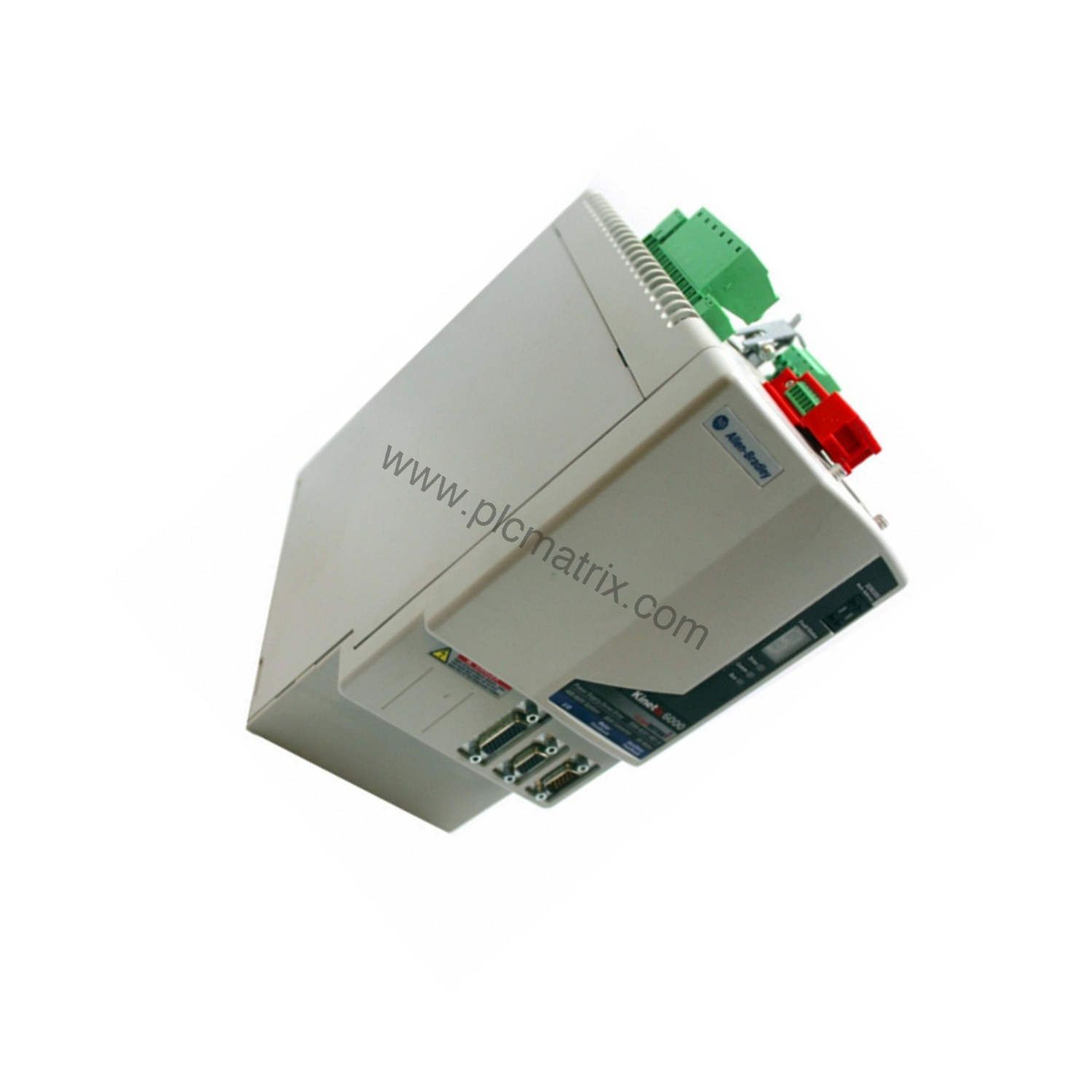

Allen-Bradley 2094-BC01-M01-S Kinetix 6000 Integrated Axis Module Overview

Introduction

Struggling with complex multi-axis motion control in demanding industrial environments? The Allen-Bradley 2094-BC01-M01-S Kinetix 6000 Integrated Axis Module delivers robust performance and integrated safety to simplify your system. This 400 Volt class servo drive combines converter and inverter sections in one compact unit, reducing wiring and panel space.

Technical Specifications

The 2094-BC01-M01-S operates with an AC input voltage range of 324 - 528Vrms, 3-Phase, and a DC input voltage of 458 - 747 VDC. It provides a continuous output current to bus of 9 Amperes and continuous output power to bus of 6 Kilowatts. Peak power output reaches 12 kW, supporting demanding acceleration profiles. The module achieves 97% efficiency, minimizing energy loss. Weight is 11.1 pounds, and mounting is via a power rail with minimum enclosure depth of 198 mm (7.8 in.).

Industry Applications

This Integrated Axis Module excels in packaging, material handling, and converting machinery where precise, synchronized motion is critical. In a high-speed labeling line, the 2094-BC01-M01-S delivers torque up to 250% of continuous rated current, enabling rapid acceleration and deceleration without oversized components. Its integrated Safe Torque Off (STO) functionality, certified to ISO 13849-1 PLe/SIL3, simplifies safety system design and reduces external hardware.

Installation & Setup Guidance

Mount the 2094-BC01-M01-S on a power rail within an enclosure providing at least 50.8 mm (2.0 in.) clearance for airflow. Ensure AC input voltage matches the 324 - 528Vrms, 3-Phase range. For common-bus follower configurations, supply DC input voltage between 458 - 747 VDC. Use fiber optic media with the integrated SERCOS interface for high-speed, noise-immune communication in linear or ring topology.

Compatibility & Integration

The 2094-BC01-M01-S works with a wide range of Allen-Bradley rotary motors including Kinetix MP, TL/TLY, RDB, 1326AB, and F-Series, as well as LDC-Series and LDL-Series linear motors and LDAT linear actuators. It integrates via SERCOS interface with ControlLogix 1756-MxxSE modules, CompactLogix 1768-M04SE modules, and 1784-PM16SE PCI cards. This flexibility allows seamless upgrades or expansions of existing Kinetix 6000 systems.

Maintenance & Reliability

To maintain peak performance, inspect the 2094-BC01-M01-S periodically for dust accumulation on heat sinks and ensure enclosure cooling fans operate correctly. The module's high efficiency (97%) reduces thermal stress, extending service life. Verify bus voltage levels stay within the 458 - 747 VDC range to prevent undervoltage or overvoltage faults. Follow Rockwell Automation's guidelines for safe torque-off testing intervals.

Selection Guide & Purchasing Advice

Before ordering, confirm your system's voltage and current requirements match the 2094-BC01-M01-S specifications: 324 - 528Vrms AC input, 9A continuous output current to bus, and 6 kW continuous power. Verify compatibility with your existing motors and controllers. For current availability and lifecycle status, contact BluePLC Industrial. Our team can help you select the right Kinetix 6000 components and provide fast, reliable delivery.
