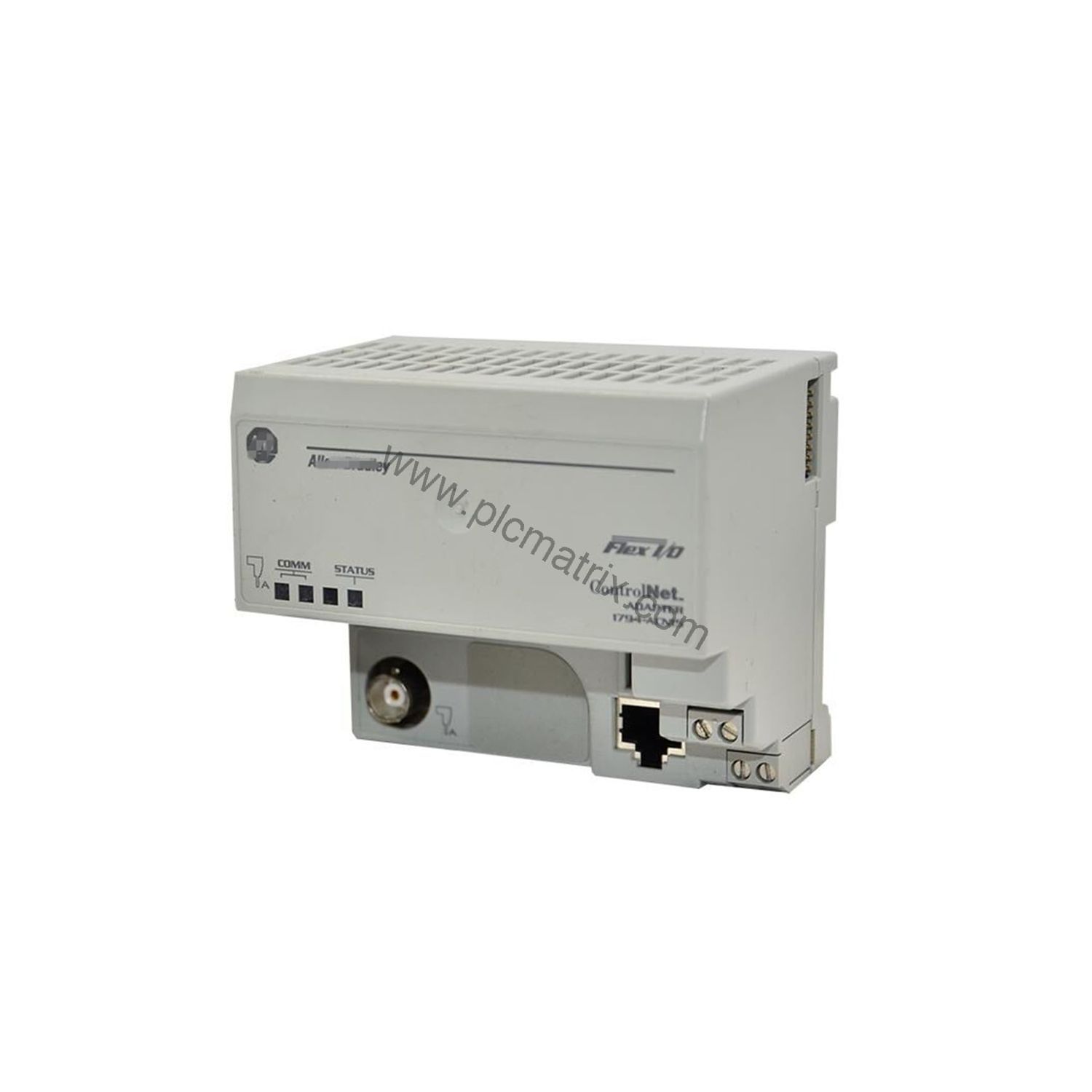

Allen-Bradley 1794-IR8 Flex I/O 8-Channel RTD Input Module Overview

Product Introduction

When temperature measurement accuracy is critical in industrial processes, the Allen-Bradley 1794-IR8 Flex I/O RTD Input Module provides a reliable solution. Part of the Flex I/O family, this 8-channel analog input module is designed for Resistance Temperature Detector (RTD) sensors, making it ideal for precise temperature monitoring in harsh environments. With 8 inputs and a 16-bit resolution across 435 ohms, the 1794-IR8 delivers consistent performance for demanding applications.

Technical Specifications Breakdown

The 1794-IR8 features 8 RTD channels, each supporting a nominal input range of 1 to 433 ohms. It offers a resolution of 16 bits across 435 ohms, ensuring fine granularity in temperature readings. The module operates with an RTD excitation current of 718.36 µA and provides accuracy of 0.05% full scale (maximum) in normal mode and 0.01% full scale (typical) in enhanced mode without calibration at low humidity. Data is formatted as 16-bit 2's complement or offset binary (unipolar). The system throughput in normal mode is programmable from 28 ms/channel to 325 ms/channel, with a default of 325 ms for 1 channel and 2.6 s for 8 channels. In enhanced mode, throughput ranges from 56 ms/channel to 650 ms/channel, defaulting to 650 ms for 1 channel and 2.925 s for 8 channels. The module also features normal mode noise rejection of -60 dB at 60 Hertz and a channel bandwidth of 0 to 2.62 Hertz. It requires a FlexBus current of 20 mA and dissipates 3 Watts at 31.2 Volts DC maximum, with thermal dissipation of 10.2 BTU/hour at 31.2 Volts DC maximum. Isolation voltage is 850 Volts DC. The 1794-IR8 mounts on a DIN rail and operates in temperatures from 0 to 55 °C (32 to 131 °F), with storage from -40 to 85 °C (-40 to 185 °F). It withstands vibration of 5g at 10 to 500 Hz and operating shock of 30 g.

Industry Applications

The 1794-IR8 is well-suited for temperature monitoring in chemical processing, oil and gas refining, and food production. Its 8-channel design allows for efficient multi-point RTD sensing, reducing the need for multiple modules. In a petrochemical plant, for instance, the module can monitor reactor temperatures with high accuracy, leveraging its enhanced mode for faster throughput when needed. The module's compatibility with various RTD types—including 100 Ω Pt, 200 Ω Pt, 500 Ω Pt, 100 Ω Nickel, 120 Ω Nickel, 200 Ω Nickel, 500 Ω Nickel, and 10 Ω Copper—makes it versatile for different temperature ranges and sensor standards.

Installation & Setup Guidance

For maintenance engineers, installing the 1794-IR8 is straightforward. The module mounts on a standard DIN rail, and wiring is determined by the installed terminal base (compatible with 1794-TB2, 1794-TB3, and 1794-TB3T). Ensure proper connection of RTD sensors to the correct channels, and verify that the excitation current matches sensor requirements. The module's data format can be configured as 16-bit 2's complement or offset binary, allowing integration with various control systems. Always follow the manufacturer's guidelines for wiring and grounding to minimize noise and ensure accurate readings.

Maintenance & Reliability

From a maintenance perspective, the 1794-IR8 is designed for reliability. Its operating temperature range of 0 to 55 °C and storage range of -40 to 85 °C ensure stable performance in typical industrial environments. The module's vibration tolerance of 5g at 10 to 500 Hz and shock rating of 30 g contribute to long service life in machinery with moderate vibration. Regular inspection of connections and terminal bases is recommended to prevent signal degradation. The module's power dissipation of 3 Watts maximum helps manage heat, reducing stress on nearby components. For enhanced reliability, consider using the enhanced mode for critical measurements, though it may increase scan time.

Selection Guide & Purchasing Advice

When selecting the 1794-IR8, verify compatibility with your existing Flex I/O system and terminal base. The module requires a FlexBus current of 20 mA, so ensure your power supply can support multiple modules. For complete technical specifications, contact BluePLC Industrial. As a trusted supplier, BluePLC Industrial offers genuine Allen-Bradley products and can assist with lifecycle status and availability. The 1794-IR8 is a robust choice for temperature measurement, providing 8 channels of reliable RTD input with high resolution and noise rejection.
