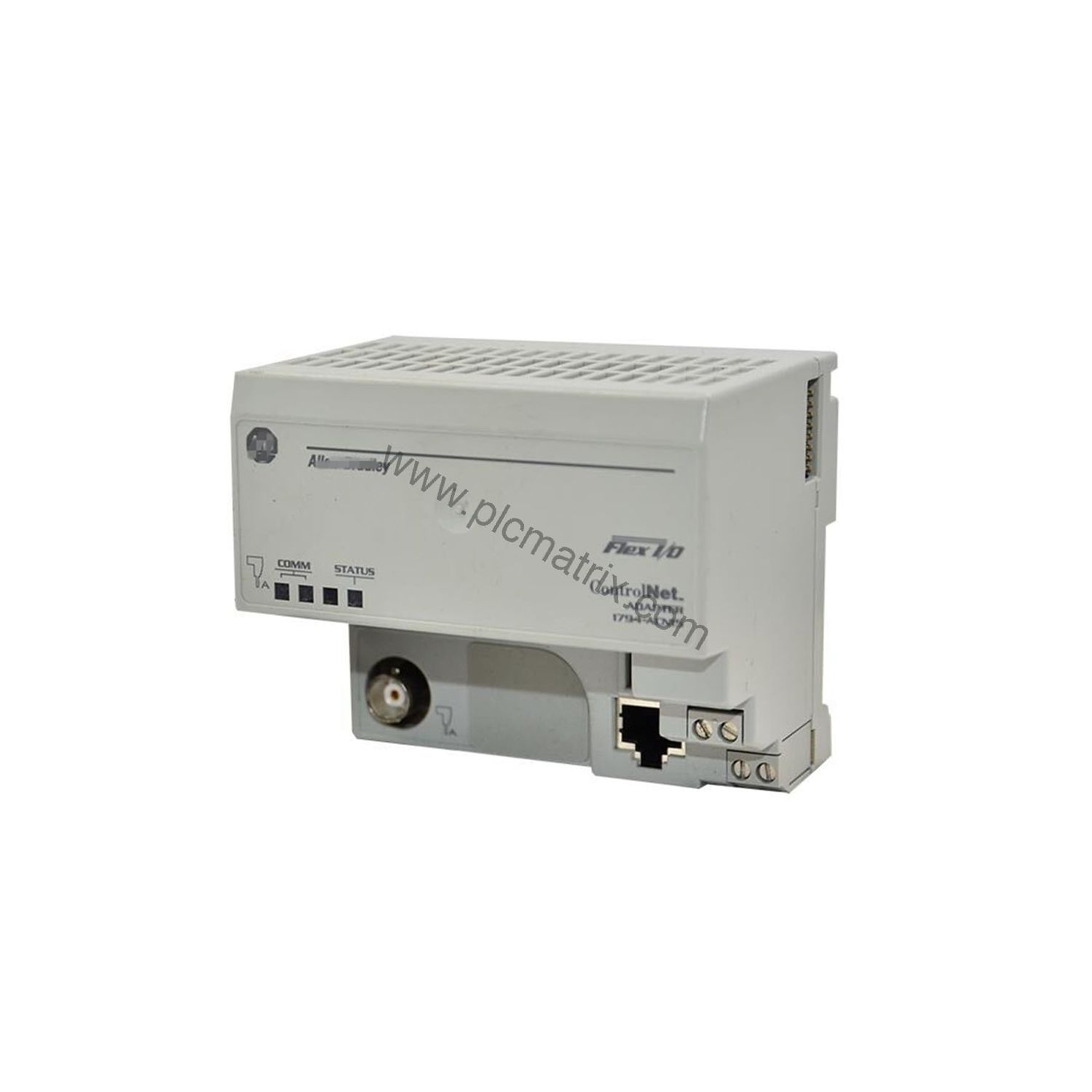

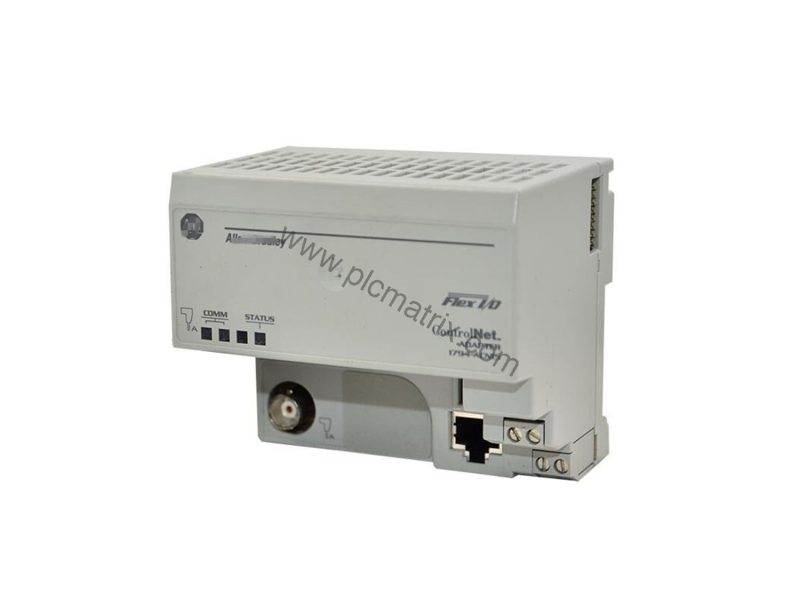

Allen-Bradley 1794-ACNR15XT Flex I/O ControlNet Adapter for Hazardous Locations

Cost-Efficient ControlNet Integration for Hazardous Environments

When your facility operates in areas where vapors, mists, or gases may occasionally be present, the Allen-Bradley 1794-ACNR15XT adapter delivers reliable ControlNet communication without compromising safety. This Flex I/O adapter supports up to 8 I/O modules, allowing you to consolidate remote I/O points while minimizing wiring costs. Its 19.2 to 31.2 Volts DC input range ensures stable operation even with fluctuating power supplies, reducing unexpected downtime and maintenance expenses. By choosing the 1794-ACNR15XT, you invest in a module that balances upfront cost with long-term reliability in demanding industrial settings.

Technical Specifications Breakdown

The 1794-ACNR15XT operates on a DC input voltage from 19.2 to 31.2 Volts DC, drawing 400 milliamps of current. Its peak power dissipation is 3.4 Watts at 19.2 Volts DC, which translates to lower energy consumption compared to older adapters—directly reducing your facility's electricity costs over time. The module weighs only 0.31 lbs (0.14 kg) and measures 87.4 x 94 x 92 millimeters, making it easy to install in tight cabinets without requiring additional structural support. The recommended Belden RG-6/U cable for ControlNet communication ensures signal integrity, minimizing data errors that could lead to costly production halts.

Industry Applications: Maximizing ROI in Hazardous Zones

In chemical processing plants, the 1794-ACNR15XT adapter connects remote I/O modules monitoring tank levels and valve positions over ControlNet. Its T4A North American temperature code and T4 ATEX/IECEx ratings allow safe deployment in Class I, Division 2 areas, eliminating the need for expensive explosion-proof enclosures. For oil and gas refineries, this adapter reduces installation costs by supporting up to 8 I/O modules per node, cutting down on the number of adapters required. The 22 to 12 AWG copper wire connections for power ports further lower material expenses while maintaining robust performance.

Installation & Setup Guidance

Mount the 1794-ACNR15XT on a DIN rail in a clean, dry location away from excessive vibration. Use Category 3 wire for power ports and Category 2 wire for communication ports to ensure compliance with electrical codes. Tighten terminal screws to a torque not exceeding 7 pounds on an inch—overtightening can damage the connector and lead to costly replacements. Before disconnecting the module in hazardous locations, always remove power first to prevent arcing. Use only a soft anti-static cloth for cleaning; avoid cleaning agents that could degrade the housing or introduce static discharge risks.

Maintenance & Reliability: Lowering Total Cost of Ownership

Regularly inspect the front panel indicators—two for communication ports and one for I/O status—to quickly identify network or module faults without manual probing. This proactive approach reduces mean time to repair (MTTR) and keeps production lines running. The module's compliance with T4 temperature codes ensures it operates reliably in ambient temperatures typical of industrial environments, avoiding thermal-related failures that drive up maintenance budgets. Because the 1794-ACNR15XT is designed for hazardous locations, its robust construction extends service life, delivering a better return on investment over time.

Compatibility & Integration

The 1794-ACNR15XT adapter communicates over ControlNet networks, seamlessly integrating with Allen-Bradley ControlLogix, CompactLogix, and PLC-5 controllers. It supports up to 8 Flex I/O modules, allowing you to mix analog, digital, and specialty modules as needed. This flexibility means you can standardize on one adapter type across multiple hazardous zones, simplifying spare parts inventory and reducing procurement costs. For existing ControlNet installations, the 1794-ACNR15XT is a drop-in replacement that preserves your network architecture and minimizes reconfiguration expenses.

Selection Guide & Purchasing Advice

Before purchasing the 1794-ACNR15XT, verify your ControlNet network topology and cable length requirements. The recommended Belden RG-6/U cable ensures optimal signal quality—using inferior cable may increase error rates and lead to costly troubleshooting. Confirm that your power supply delivers 19.2 to 31.2 Volts DC with at least 400 mA capacity per adapter. At BluePLC Industrial, we stock the 1794-ACNR15XT and offer competitive pricing for bulk orders. Our team can help you confirm compatibility with your existing Flex I/O modules and ControlNet infrastructure, ensuring a smooth upgrade path that maximizes your automation investment.

For complete technical specifications for the 1794-ACNR15XT, please contact BluePLC Industrial.
