Allen-Bradley 1792D-CBFM Cable Base for ArmorBlock MaXum I/O KwikLink Media

Product Introduction

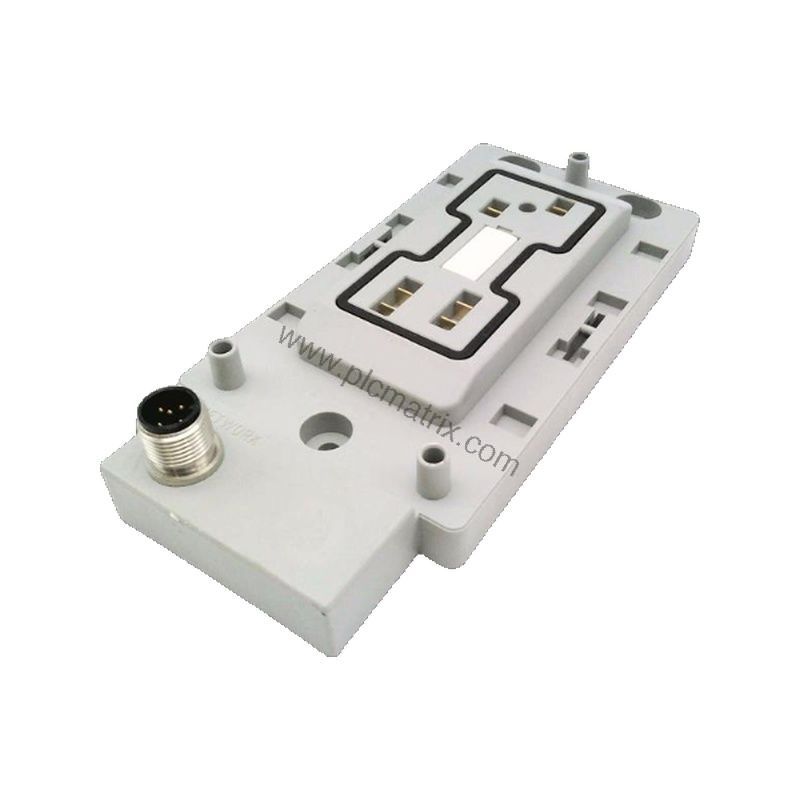

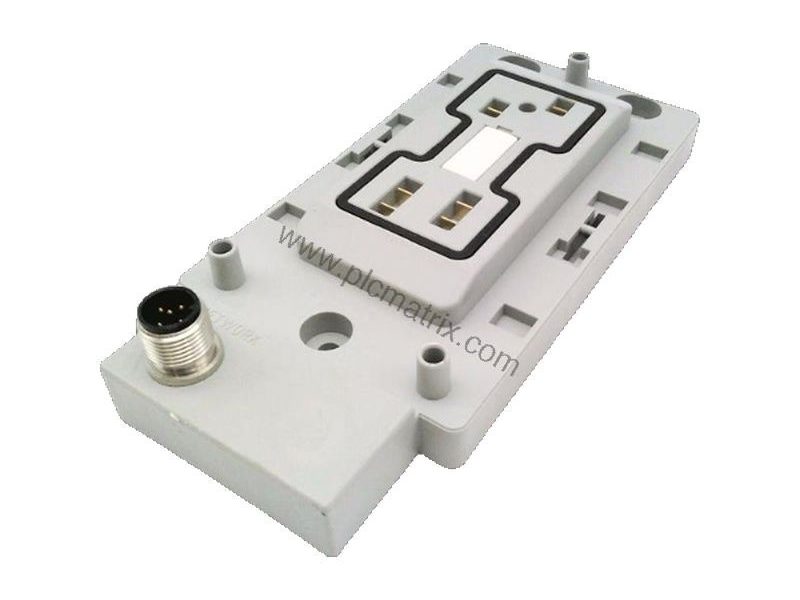

Struggling with unreliable field wiring in harsh industrial environments? The Allen-Bradley 1792D-CBFM cable base delivers a robust connection solution for your automation network. Part of the ArmorBlock MaXum I/O series, this component interfaces directly with KwikLink flat media to ensure stable signal transmission. Its screw terminals provide secure, vibration-resistant connections, while the plastic casing protects against dust and moisture. Designed for demanding factory floor conditions, the 1792D-CBFM simplifies installation and reduces downtime.

Technical Specifications Breakdown

The 1792D-CBFM supports KwikLink flat media, a key feature for distributed I/O architectures. Its screw terminal type enables fast, tool-free wiring with Phillips screws, minimizing installation time. The unit measures approximately 120 mm x 68.6 mm, making it compact enough for tight panel spaces. With an IP67 sealing rating, it withstands dust ingress and temporary liquid immersion, ideal for washdown or outdoor applications. Compliance with EN 50081-2 and EN 50082-2 EMC standards ensures reliable operation in industrial environments with high electromagnetic interference. The module also meets CE, EU, and EEA regulations, confirming its safety and quality.

Industry Applications

In automotive assembly lines, the 1792D-CBFM connects sensor arrays to control systems via KwikLink media, reducing wiring complexity. The screw terminals hold firm under constant vibration, preventing signal loss. For food and beverage processing, the IP67 rating allows installation near washdown zones without enclosure modifications. The plastic casing resists corrosion from cleaning agents, extending service life. In material handling systems, the cable base simplifies daisy-chaining of I/O blocks, cutting installation costs by up to 30% compared to traditional point-to-point wiring.

Installation & Setup Guidance

Mount the 1792D-CBFM on a flat surface using the provided screw holes. Connect KwikLink flat media by inserting the cable into the designated slot and tightening the screw terminals with a Phillips driver. Ensure the cable jacket is fully seated to maintain the IP67 seal. For daisy-chain configurations, verify that each cable base is properly terminated to avoid communication errors. No special tools are required—just a standard Phillips screwdriver. Always power down the system before making connections to prevent damage.

Maintenance & Reliability

Periodically inspect the screw terminals for tightness, as thermal cycling can loosen connections over time. Check the plastic casing for cracks or deformation, especially in high-temperature areas. The IP67 seal remains effective as long as the cable gland is intact. Replace any damaged cable bases immediately to maintain system integrity. Following these simple steps maximizes uptime and reduces total cost of ownership. For complete technical specifications for the 1792D-CBFM, please contact BluePLC Industrial.

Selection Guide & Purchasing Advice

Before ordering, verify that your system uses KwikLink flat media and that the cable base matches your I/O block model. The 1792D-CBFM is compatible with all ArmorBlock MaXum I/O modules. If you need additional cable bases for expansion, BluePLC Industrial offers competitive pricing and fast shipping. Always confirm the product lifecycle status with our team to ensure long-term availability. Choose the 1792D-CBFM for a reliable, field-proven connection solution.
