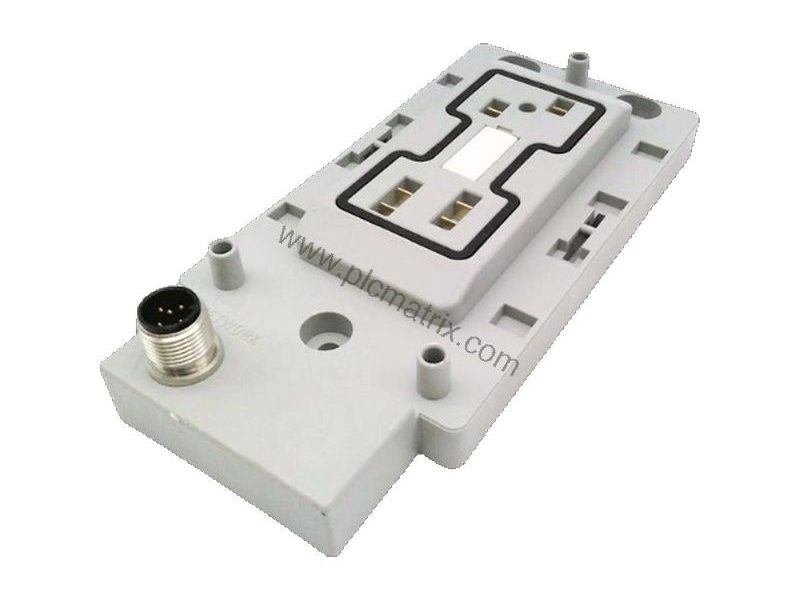

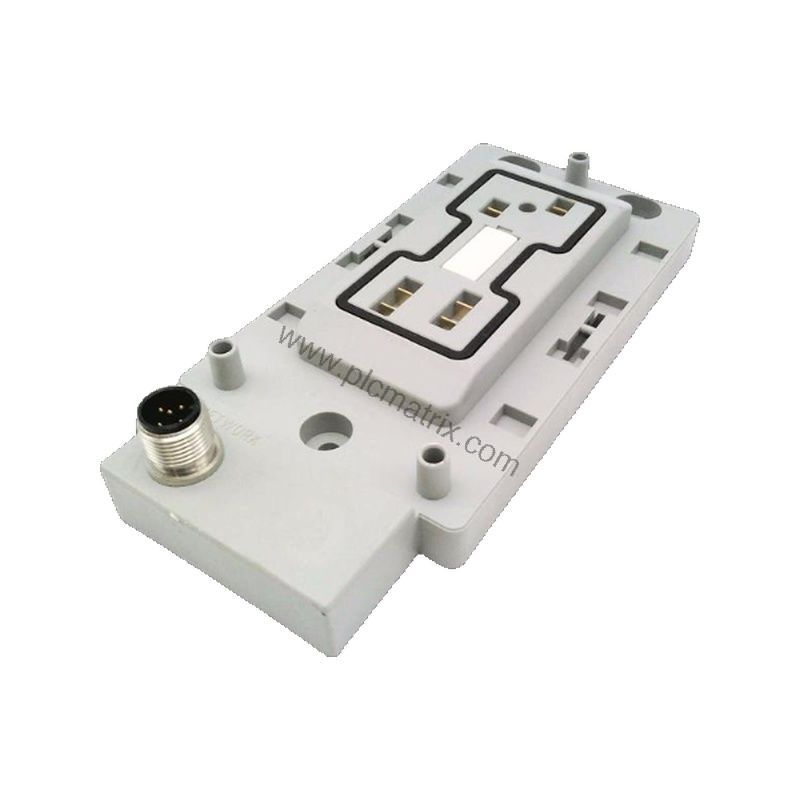

Allen-Bradley 1792D-CB18JP DeviceNet Interface Base for ArmorBlock MaXum I/O

What Is the 1792D-CB18JP?

When your automation system demands reliable network connectivity in wet, dusty, or washdown environments, the Allen-Bradley 1792D-CB18JP delivers. This interface base is part of the 1792D ArmorBlock MaXum I/O series and serves as a rugged connection point for DeviceNet networks. Its sealed housing and IP67 ingress protection allow it to withstand exposure to dust and water, making it a dependable choice for demanding industrial settings.

Technical Specifications

The 1792D-CB18JP operates on an 11-25V DC power supply and supports DeviceNet baud rates of 125, 250, and 500 kbps. It uses round media for the trunk connection and features M12 connectors for secure interfacing. The pass-through port configuration simplifies network wiring, while auxiliary power is jumpered from the network power itself. The module mounts via captive screws and weighs 0.75 lbs (0.34 kg). Current capacity reaches approximately 8 A max, with load capacity adhering to standard module limits.

Industry Applications

This interface base excels in applications where standard I/O modules fail due to moisture or particulate contamination. In food and beverage processing lines, for example, the IP67 rating ensures continuous operation during washdown cycles. Similarly, in automotive assembly plants, the sealed design protects against coolant and oil mist. The 1792D-CB18JP also suits material handling systems where vibration and debris are common, providing a stable DeviceNet connection for sensors and actuators.

Installation & Setup Guidance

Mount the 1792D-CB18JP using the captive screw mechanism onto a flat panel or machine frame. Connect the DeviceNet trunk cable using round media and M12 connectors. The pass-through configuration allows daisy-chaining multiple modules without additional wiring complexity. Ensure the network power source supplies 11-25V DC and that auxiliary power is properly jumpered. Verify baud rate settings match your network configuration before powering up.

Maintenance & Reliability

Periodically inspect the M12 connectors and captive screws for tightness, especially in high-vibration environments. The sealed housing requires no routine cleaning of internal components, but wipe the exterior with a damp cloth if debris accumulates. The IP67 rating means the unit can be submerged temporarily, but avoid prolonged immersion. Regular network diagnostics will help detect early signs of communication issues.

Compatibility & Integration

The 1792D-CB18JP integrates seamlessly with any DeviceNet master scanner, including those from Allen-Bradley ControlLogix, CompactLogix, and SLC-500 families. It works with all 1792D ArmorBlock MaXum I/O modules that require an interface base. The pass-through port allows straightforward integration into existing DeviceNet trunk lines without special adapters.

Selection Guide & Purchasing Advice

Before ordering, verify that your network uses DeviceNet protocol and round media trunk cables. Confirm that your power supply delivers 11-25V DC and can handle the total current draw of all connected modules. For complete technical specifications and current availability, contact BluePLC Industrial. Our team can help you confirm compatibility with your existing system and provide fast shipping.
