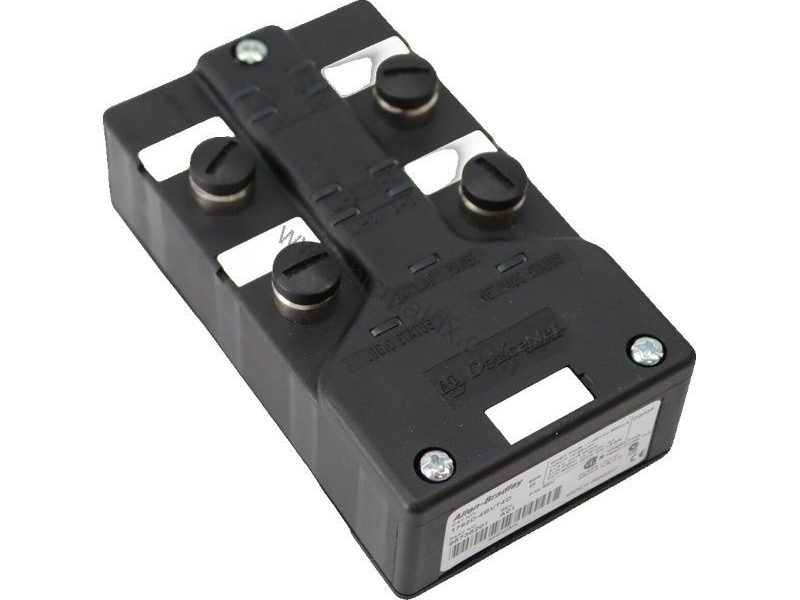

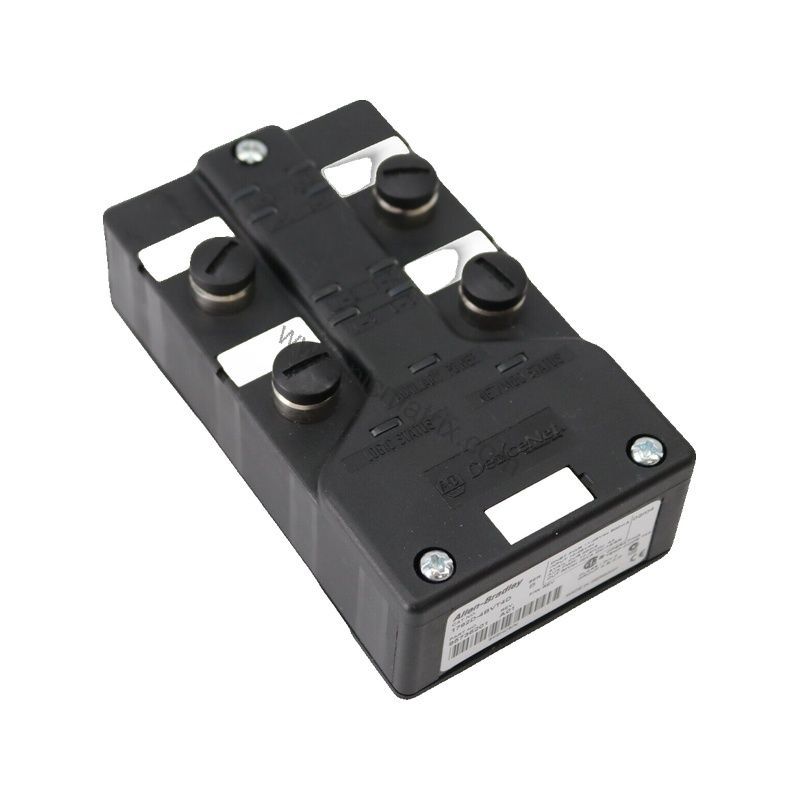

Allen-Bradley 1792D-8BVT8D ArmorBlock MaXum Digital I/O Module

Product Overview

When harsh factory floor conditions demand reliable digital I/O, the Allen-Bradley 1792D-8BVT8D delivers. This ArmorBlock MaXum module combines 8 digital inputs and 8 digital outputs in a single IP67-rated enclosure, making it ideal for decentralized control in wet, dusty, or high-vibration areas. With 24V DC sinking/sourcing inputs and sourcing (NPN) outputs, it interfaces seamlessly with a wide range of sensors and actuators.

Technical Specifications

The 1792D-8BVT8D is a fieldbus I/O module from Allen-Bradley's 1792D ArmorBlock MaXum series. It offers 8 digital inputs of 24V DC sinking/sourcing type and 8 digital outputs of 24V DC sourcing (NPN) type. The maximum rated current per module is 0.5 A. Power supply is 24V DC. The enclosure meets IP67 standards for dust and water ingress protection. Operating temperature ranges from -25 °C to 60 °C, storage from -25 °C to 80 °C, with 95% non-condensing humidity tolerance. The module supports up to 3 I/O connections: cyclic, polled, and change-of-state. It communicates via DeviceNet protocol and includes DeviceLogix smart component technology for local logic execution.

Industry Applications

In automotive assembly lines, the 1792D-8BVT8D controls pneumatic valves and monitors proximity sensors directly on the machine frame. Its IP67 rating withstands coolant spray and metal shavings. In food packaging, the module handles conveyor belt sensors and actuator outputs without needing an extra enclosure. The DeviceLogix feature allows simple logic to run locally, reducing PLC scan cycle load. For material handling, the 1792D-8BVT8D provides reliable I/O for palletizers and sortation systems where space is tight and exposure to dust is constant.

Installation & Setup

Mount the 1792D-8BVT8D directly on the machine frame or back panel using the provided holes. Orientation can be vertical or horizontal to suit cable routing. Connect the DeviceNet trunk line via the sealed mini-style connectors. The module supports removal and insertion under power (RIUP), so you can replace it without shutting down the network. Wire field devices to the M12 quick-disconnect ports. Configure the node address and baud rate via the onboard rotary switches. For cyclic I/O, set the block as an I/O client to produce data at a configured rate. For polled I/O, the master initiates communication by sending a poll request.

Maintenance & Reliability

The IP67 enclosure protects internal electronics from dust and temporary submersion. Inspect the module periodically for connector seal integrity and cable strain relief. The 95% non-condensing humidity rating ensures reliable operation in humid environments. With no moving parts and solid-state outputs, the 1792D-8BVT8D offers long service life. The RIUP feature simplifies maintenance by allowing hot-swap replacement without network disruption. Always verify that the 24V DC power supply is within tolerance before connecting.

Compatibility & Integration

The 1792D-8BVT8D integrates with any DeviceNet master scanner, such as Allen-Bradley ControlLogix, CompactLogix, or PLC-5 with a 1771-SDN module. It supports cyclic, polled, and change-of-state I/O connections. The DeviceLogix firmware enables local logic execution independent of the master, reducing network traffic. The module works with both PNP and NPN sensors thanks to its universal input type. For output loads, use 24V DC sourcing (NPN) devices. The 0.5 A per module maximum limits total output current; distribute high-current loads across multiple modules.

Selection Guide & Purchasing Advice

Before ordering the 1792D-8BVT8D, confirm your DeviceNet network configuration and available node addresses. Verify that your 24V DC power supply can handle the module's current draw plus field loads. The module weighs 0.56 lbs (0.26 kg) and ships with mounting hardware. For complete technical specifications, contact BluePLC Industrial. Our team can help you confirm compatibility with your existing ArmorBlock or DeviceNet system. We stock the 1792D-8BVT8D and can provide same-day shipping for in-stock items.
