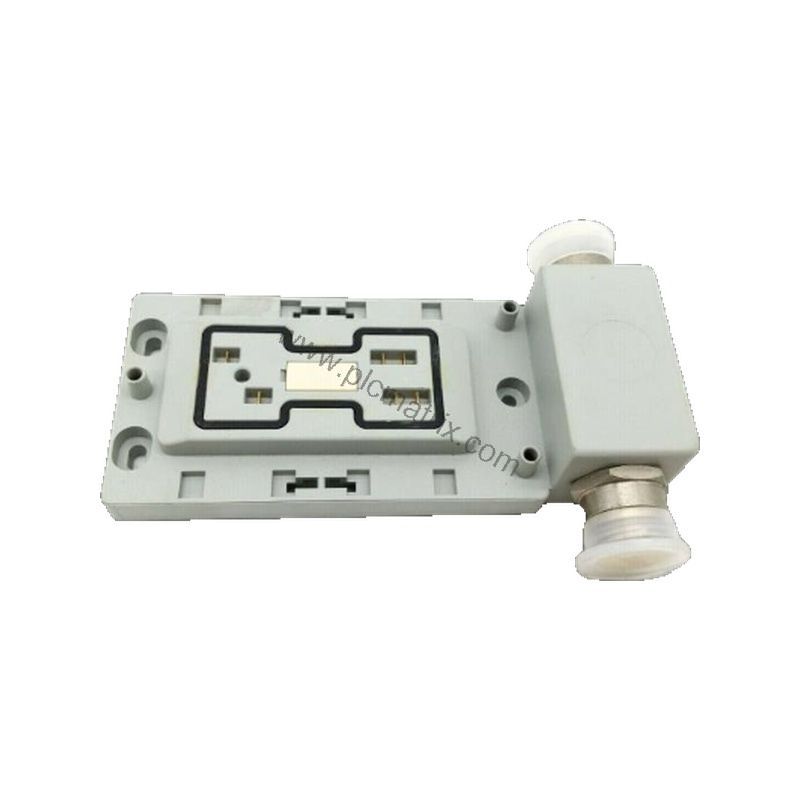

Allen-Bradley 1792D-0B4D 4-Channel Sourcing Output Block Buyer's Guide

Product Overview

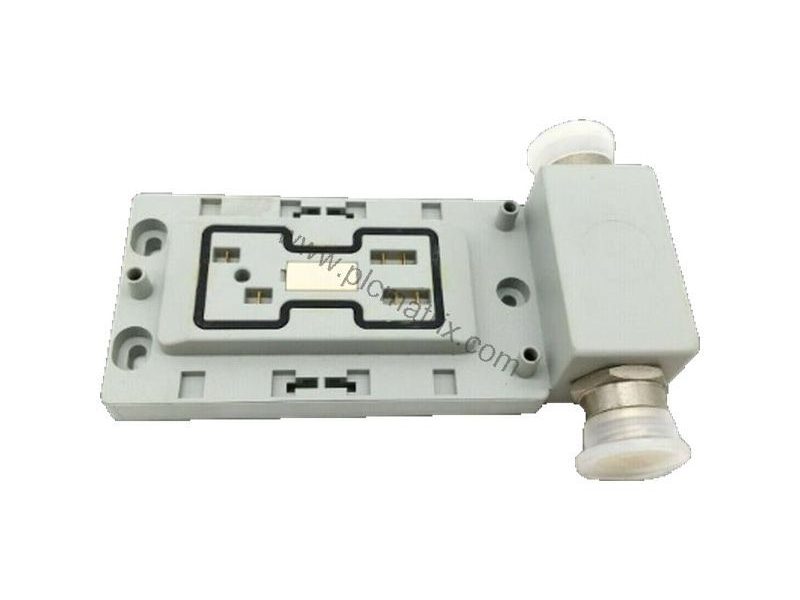

When industrial environments demand robust output control with minimal downtime, the Allen-Bradley 1792D-0B4D delivers a compact, reliable solution. This 4-channel sourcing output block from the ArmorBlock MaXum I/O series integrates seamlessly into DeviceNet networks, providing efficient control for actuators, valves, and indicators. With a rugged IP67 housing, it withstands dust and water ingress, making it ideal for harsh manufacturing floors. Each channel supports up to 2A, with a total module load of 4A, ensuring ample power for demanding applications. Whether upgrading legacy systems or designing new lines, this module offers a proven balance of performance and durability.

Technical Specifications Breakdown

Understanding key specs helps match the 1792D-0B4D to your application. Here are the critical parameters:

Output Count and Type: Four sourcing outputs handle positive-switching loads. Sourcing means the module supplies current to the load, common in North American control systems.

Current Ratings: Each output delivers up to 2A continuous, with a module total of 4A max. This supports moderate loads like solenoid valves or indicator lights. Surge current of 4A for 10 ms handles inrush during startup.

Output Leakage: ≤ 1.5 mA ensures minimal current flows when outputs are off, preventing false activation of sensitive loads.

Network Protocol: DeviceNet provides deterministic, real-time communication. The rotary node selector simplifies addressing without software tools.

Environmental Protection: IP67 rating means the module is dust-tight and protected against temporary water immersion, suitable for washdown areas or outdoor enclosures.

Industry Applications

The 1792D-0B4D excels in applications requiring distributed output control in tough conditions:

Conveyor Systems: Control start/stop signals for motors or diverters directly on the line. The IP67 rating resists dust and coolant splashes in automotive assembly plants.

Packaging Machinery: Activate pneumatic cylinders or label applicators with precise timing via DeviceNet. The built-in local logic enables simple sequencing without a dedicated controller.

Material Handling: Operate warning lights, alarms, or gate actuators in warehouses. The compact size and M12 connectors simplify installation in tight spaces.

Installation & Setup Guidance

Setting up the 1792D-0B4D is straightforward. Mount the module securely using its integrated mounting holes. Connect the DeviceNet trunk line via the M12 network connector, ensuring proper termination at each end. For I/O wiring, use M12 connectors (typically 5-pin for sourcing outputs). Set the node address using the rotary switch on the front panel—valid addresses range from 0 to 63. Apply 24 V DC power to the I/O supply pins. Verify communication by checking the module status LED. For best performance, keep cable lengths within DeviceNet specifications and avoid routing near high-voltage lines.

Maintenance & Reliability

The 1792D-0B4D requires minimal maintenance due to its solid-state design and sealed housing. Periodically inspect the M12 connectors for corrosion or damage, especially in wet environments. Check the DeviceNet network for proper termination and power supply voltage. The module's low leakage current (≤ 1.5 mA) reduces heat buildup, extending component life. With no moving parts and an IP67 enclosure, this module offers long-term reliability in demanding settings, reducing unplanned downtime and total cost of ownership.

Selection Guide & Purchasing Advice

Before purchasing the 1792D-0B4D, verify your network protocol is DeviceNet and your power supply provides 24 V DC. Confirm the total load current across all four outputs does not exceed 4A. For applications requiring higher current, consider a relay interface. Ensure M12 cables are available for your I/O and network connections. BluePLC Industrial stocks this module and can advise on compatible accessories like pre-wired cordsets or termination resistors. Contact their team to confirm lifecycle status and current pricing.
